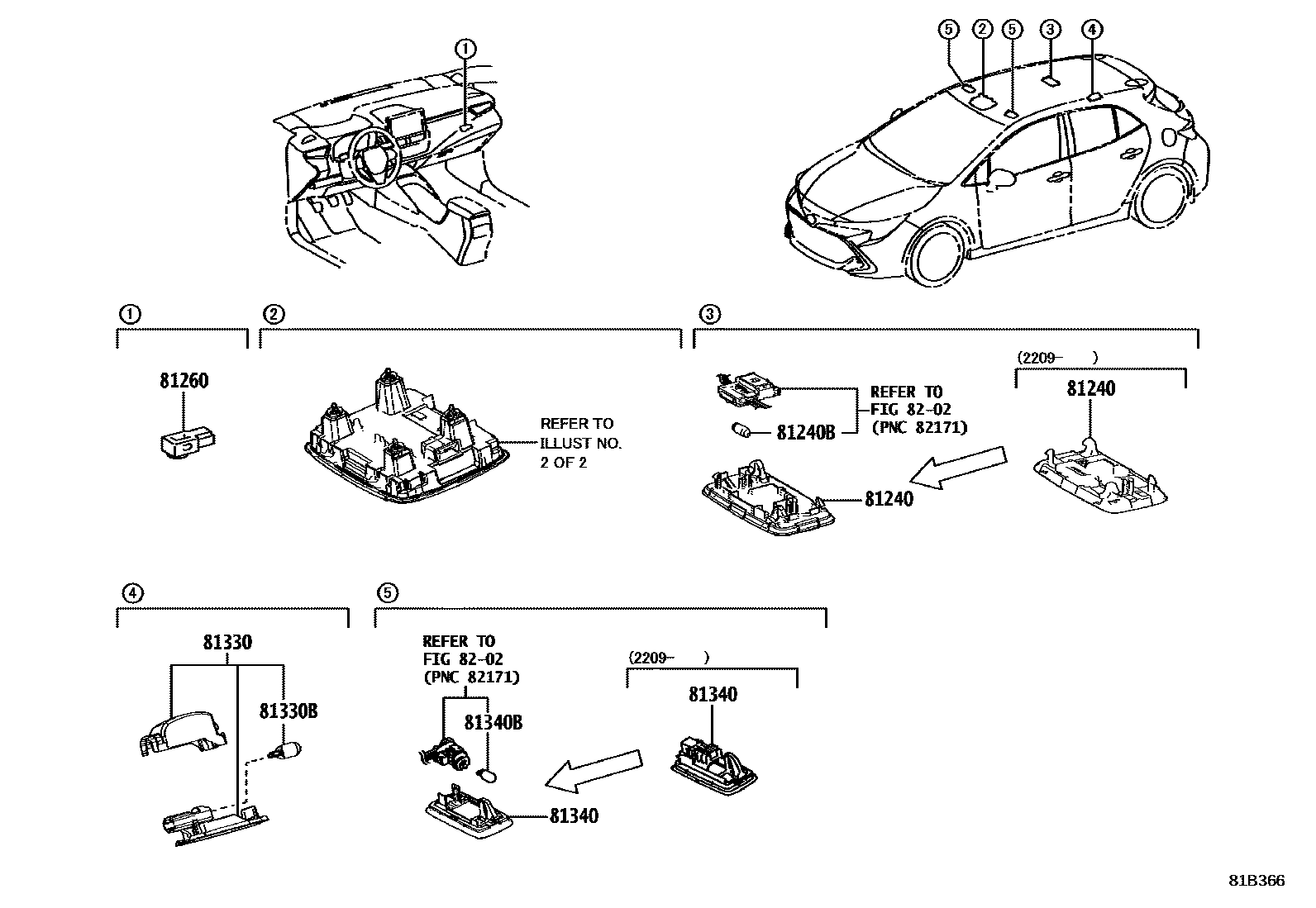

Toyota COROLLA HATCHBACK — INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-12100-C0iMZEA12..6F201907-202209

BLACK,TRIM1#,2#,3#,4#

main81240-48040-C1iMZEA12202209

BLACK,TRIM1#,2#,3#,4#

main81240-60060-C1iMZEA12201806-201906

BLACK,TRIM1#,2#,3#,4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iMZEA12..6F201806-202209

12V 8W

81260LAMP ASSY, GLOVE BOX

main81080-33290iMZEA12..CVT201806-202209

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-30210iMZEA12..CVT201806-202209

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iMZEA12..CVT201806-202209

12V 5W

81340LAMP ASSY, VANITY

main81340-30110iMZEA12..CVT201806-202209

main81340-33170iMZEA12202209

81340BBULB (FOR VANITY LAMP)

main90981-11062iMZEA12..CVT201806-202209

12V 8W

8202WIRING & CLAMP

→ Go to FIG 82-02

8 parts on this diagram · 2 diagrams in section
