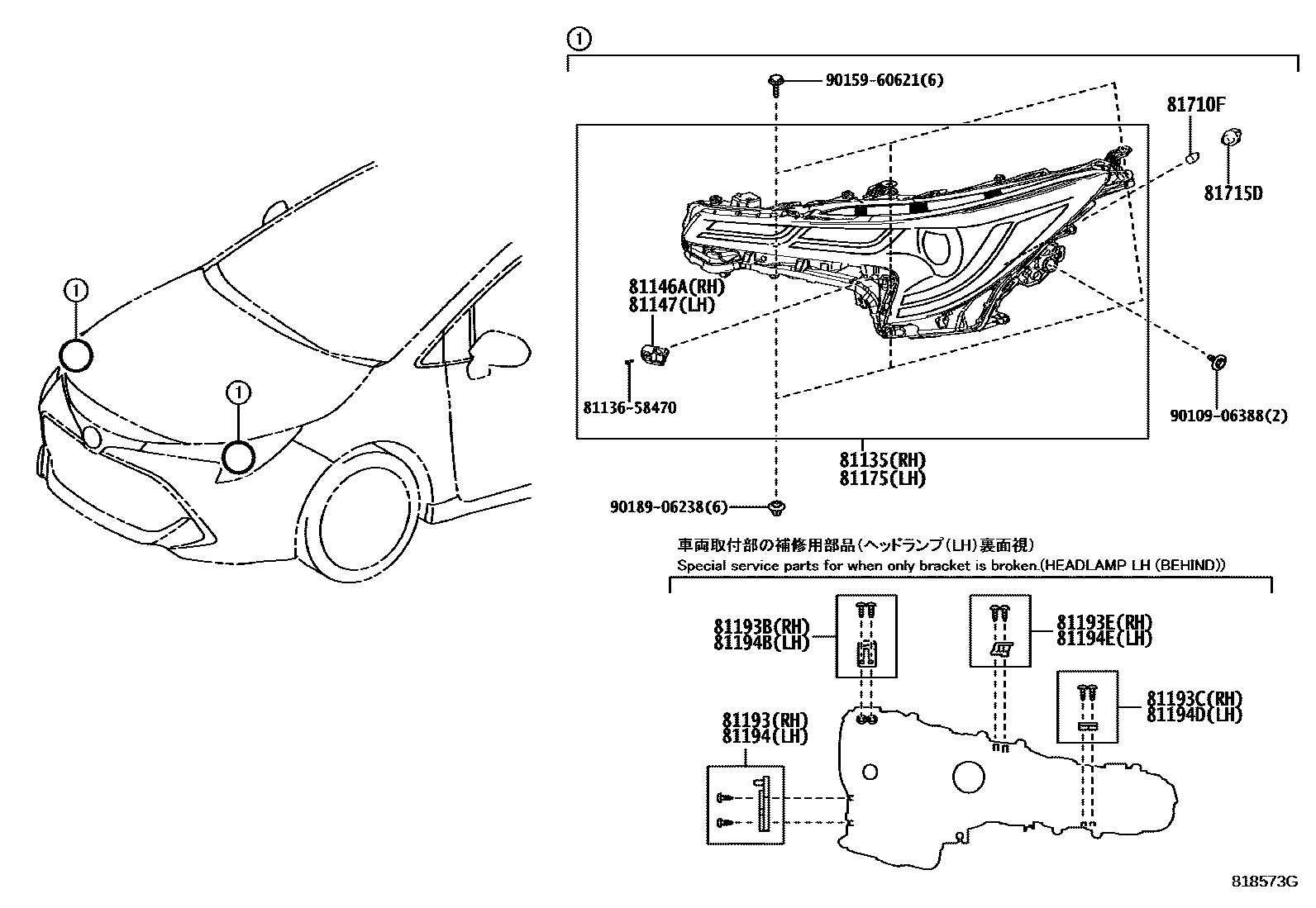

Toyota COROLLA HATCHBACK — HEADLAMP

81135UNIT ASSY, HEADLAMP, RH

main81130-12N00i201909-202209

WITH(NIGHT SHADE)

main81145-12L80supersedes 81130-12L00i201806

HEADLAMP-PROJECTOR & W(*AHB & *AFLS)

81146AFITTING, HEADLAMP, RH

main81146-12L00i201806-202209

81147FITTING, HEADLAMP, LH

main81186-12L00i201806-202209

81175UNIT ASSY, HEADLAMP, LH

main81170-12N00i201909-202209

WITH(NIGHT SHADE)

main81185-12L80supersedes 81170-12L00i201806-202209

HEADLAMP-PROJECTOR & W(*AHB & *AFLS)

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-12250i201806

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-12260i201806-202209

81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH

main81193-12270i201806-202209

81193ERETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3

main81193-12280i201806-202209

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-12250i201806-202209

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-12260i201806-202209

81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH

main81194-12270i201806-202209

81194ERETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3

main81194-12280i201806-202209

81710FBULB, FRONT SIDE MAKER LAMP

main90981-11067×2i201806-202209

81715DSOCKET PLUG, FRONT MARKER LAMP

main90075-60077×2i201806-202209

8113658470PROTECTOR, HEADLAMP, NO.1 RH

main81136-58470

9010906388

main90109-06388

9015960621

main90159-60621

9018906238

main90189-06238

18 parts on this diagram · 3 diagrams in section

HEADLAMP for Toyota COROLLA HATCHBACK

This section contains 24 genuine Toyota parts for the HEADLAMP system of the Toyota COROLLA HATCHBACK. Key components include: COMPUTER SUB-ASSY, HEADLAMP, RH, COMPUTER SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, SCREW, HEADLAMP, GASKET, HEADLAMP.
