Toyota COROLLA HATCHBACK — FRONT SPRING & SHOCK ABSORBER

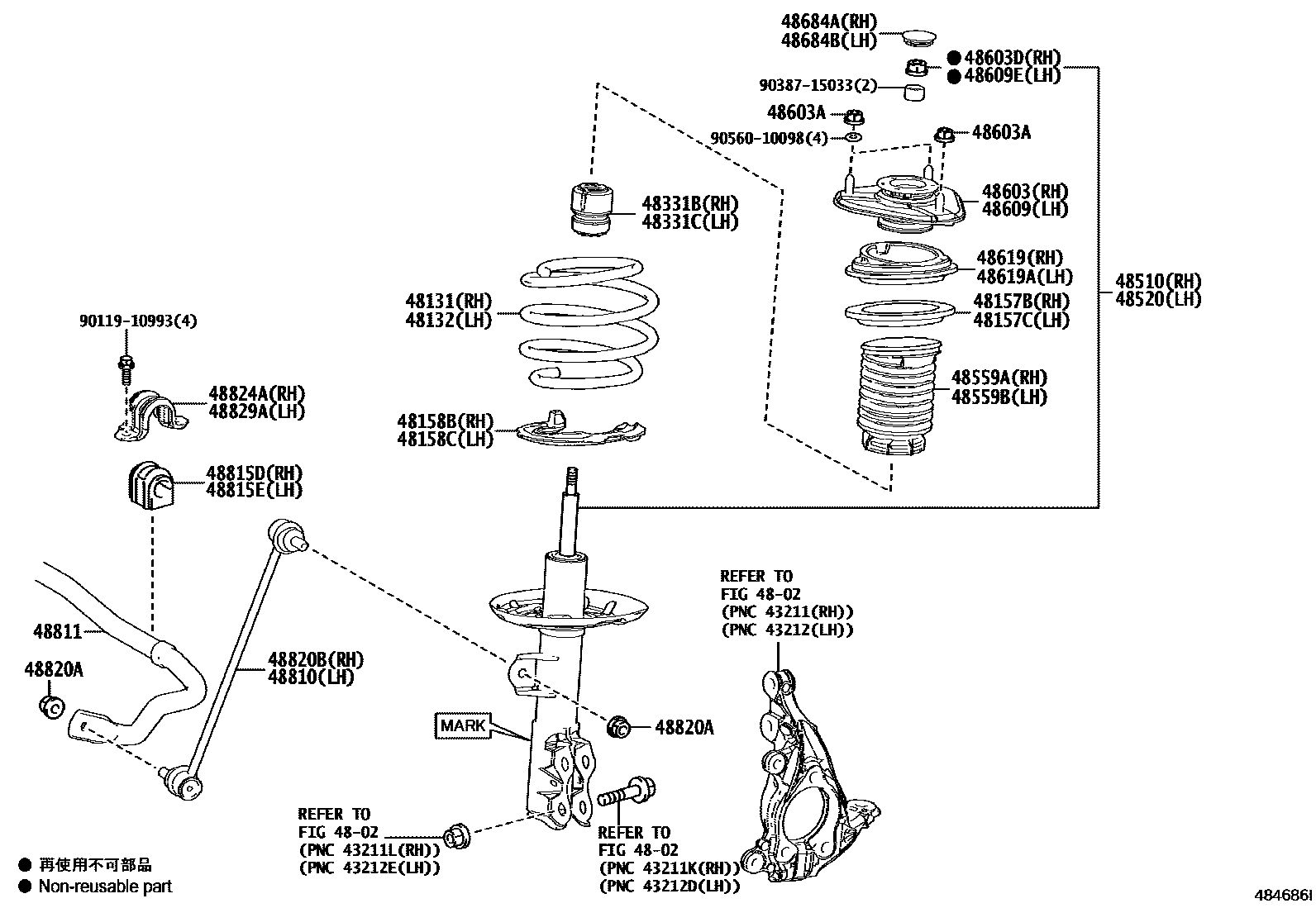

Parts diagram
4802
48131SPRING, FRONT COIL, RH
main48131-12F80i201909-202109
TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL
main48131-12F81supersedes 48131-12L40i202110-202209
TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL
main48131-12J20i201806-201909
TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL
48132SPRING, FRONT COIL, LH
main48131-12F80i201909-202109
TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL
main48131-12F81supersedes 48131-12L40i202110-202209
TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL
main48131-12J20i201806-201909
TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
main48157-47030i201806-202209
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
main48157-47030i201806-202209
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
main48158-47020i201806-202209
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
main48158-47020i201806-202209
48331BBUMPER, FRONT SPRING, RH
main48331-10120i202209
48331CBUMPER, FRONT SPRING, LH
main48331-10120i201806
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-80A23i201806
MARK 48510-12K60
main48510-80A29i201806-201909
MARK 48510-12K80,TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL
sub48510-80A25
main48510-80B10i201909-202209
MARK 48510-12N10,TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL
main48510-8Z589supersedes 48510-8Z588i202209
MARK 48510-12P00,TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-80585i201806
MARK 48520-12K60
main48520-80587i201806-201909
MARK 48520-12K80,TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL
sub48520-80586
main48520-80668i201909
MARK 48520-12N10,TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL
main48520-80752supersedes 48520-80751i202209
MARK 48520-12P00,TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL
48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1
main48559-47010i202209
48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1
main48559-47010i201806-202209
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
main48609-47060i201806
main48609-47070supersedes 48609-47060i202209
TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
main90178-10029×6i201806
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
main90177-14007i201806-202209
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
main48609-47060i201806
main48609-47070supersedes 48609-47060i202209
TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
main90177-14007i201806-202209
48619BEARING, STRUT MOUNTING, RH
main48619-47030i202211
main48619-F4010i201806
48619ABEARING, STRUT MOUNTING, LH
main48619-47030i202211
main48619-F4010i201806-202209
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
main48684-52010i201806
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
main48684-52010i201806-202209
48810LINK ASSY, FRONT STABILIZER, LH
main48820-42050i202209
main48820-47040i201806-202209
48811BAR, STABILIZER, FRONT
main48811-12B20i201806
main48811-12B70supersedes 48811-12B60i202209
TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL
48815DBUSH, FRONT STABILIZER BAR, RH
main48815-12430i201806-202109
main48815-12431i202110-202201
main48815-12440supersedes 48815-12460i202202
48815EBUSH, FRONT STABILIZER BAR, LH
main48815-12430i201806-202109
main48815-12431i202110-202201
main48815-12440supersedes 48815-12460i202202
48820ANUT(FOR FRONT STABILIZER LINK)
main94151-21241×4i201806-202209
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-42050i202209
main48820-47040i201806-202209
48824ABRACKET, FRONT STABILIZER, NO.1 RH
main48824-47020i201806-202209
48829ABRACKET, FRONT STABILIZER, NO.1 LH
main48824-47020i201806-202209
9011910993
main90119-10993
9038715033
main90387-15033
9056010098
main90560-10098

33 parts on this diagram · 1 diagram in section
