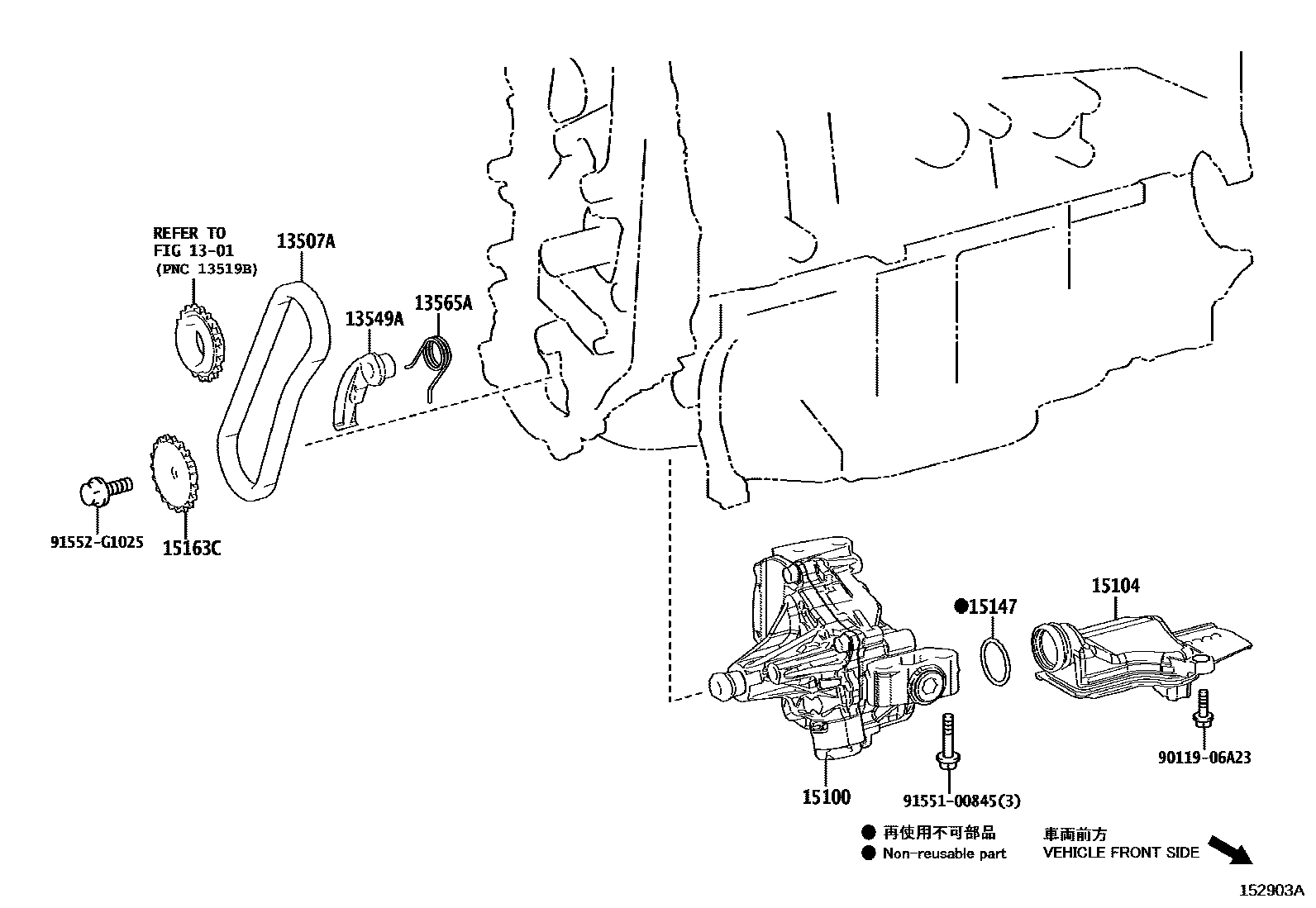

Toyota COROLLA HATCHBACK — ENGINE OIL PUMP

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-24010i201806-201810

main13507-24020i201810-202209

13549APLATE, CHAIN TENSIONER

main13549-25020i201806-202209

13565ASPRING, CHAIN DAMPER

main13565-25010i201806-202209

15100PUMP ASSY, OIL

main15100-24020i201806-202209

15104STRAINER SUB-ASSY, OIL

main15104-24010i201806-202209

15147GASKET, OIL STRAINER

main15147-25010i201806-202209

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-25010i201806-202209

9011906A23

main90119-06A23

9155100845

main91551-00845

91552G1025

main91552-G1025

11 parts on this diagram · 1 diagram in section

ENGINE OIL PUMP for Toyota COROLLA HATCHBACK

This section contains 11 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota COROLLA HATCHBACK. Key components include: CRANKSHAFT & PISTON, CHAIN SUB-ASSY, OIL PUMP DRIVE, PLATE, CHAIN TENSIONER, SPRING, CHAIN DAMPER, PUMP ASSY, OIL.
