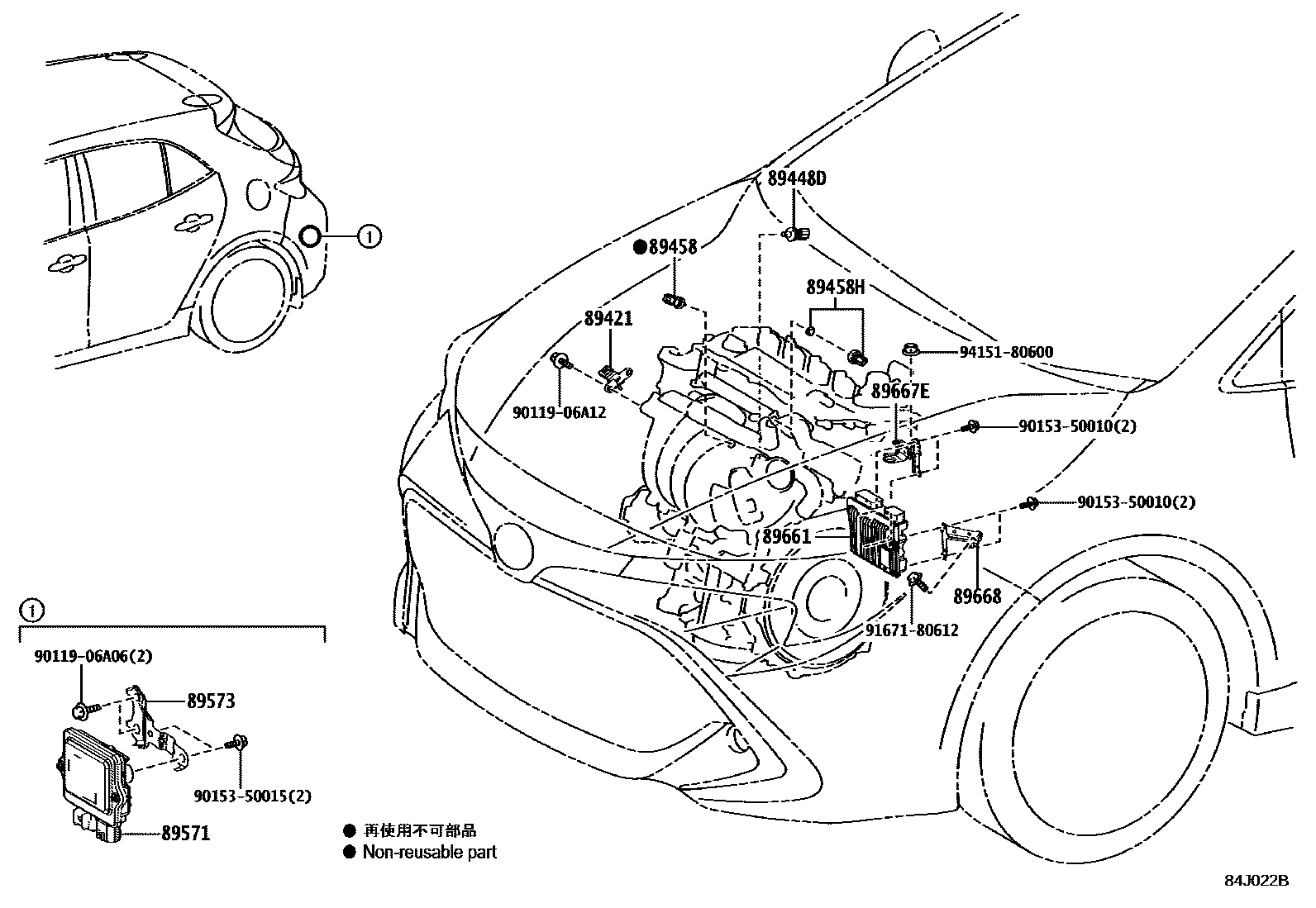

Toyota COROLLA HATCHBACK — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0003 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iMZEA12..6F201806

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iMZEA12202209

89458SENSOR, FUEL PRESSURE

main89458-33030iMZEA12..CVT201806-202209

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33041iMZEA12201806-202206

main89458-33042iMZEA12202207

89571COMPUTER, FUEL PUMP CONTROL

main89571-33030iMZEA12201806-201808

main89571-42010iMZEA12..CVT201809-202209

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-12110iMZEA12..CVT201806-202209

89661COMPUTER, ENGINE CONTROL

main89661-1AA00iMZEA12..CVT201806-201809

DENSO TEN

main89661-1AA01iMZEA12..CVT201810-201907

DENSO TEN

main89661-1AA02iMZEA12..CVT201908-201909

DENSO TEN

main89661-1AA20iMZEA12..6F201806-201809

DENSO TEN

main89661-1AA21iMZEA12..6F201810-201909

DENSO TEN

main89661-1AC60iMZEA12..CVT201909-202006

DENSO TEN

main89661-1AC70iMZEA12..6F201909-202006

DENSO TEN

main89661-1AD20iMZEA12..CVT202006-202107

DENSO TEN

main89661-1AD30iMZEA12..6F202006-202107

DENSO TEN

main89661-1AE70iMZEA12..CVT202107-202209

DENSO TEN

main89661-1AG50iMZEA12202405

DENSO,*614

main89661-1AG90iMZEA12..6F202107

DENSO TEN

main89661-1AK20supersedes 89661-1AF90iMZEA12202308-202405

DENSO,*614

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-12350iMZEA12..6F201806

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12280iMZEA12..CVT201806-202209

9011906A06

main90119-06A06

9011906A12

main90119-06A12

9015350010

main90153-50010

9015350015

main90153-50015

9167180612

main91671-80612

9415180600

main94151-80600

15 parts on this diagram · 2 diagrams in section
