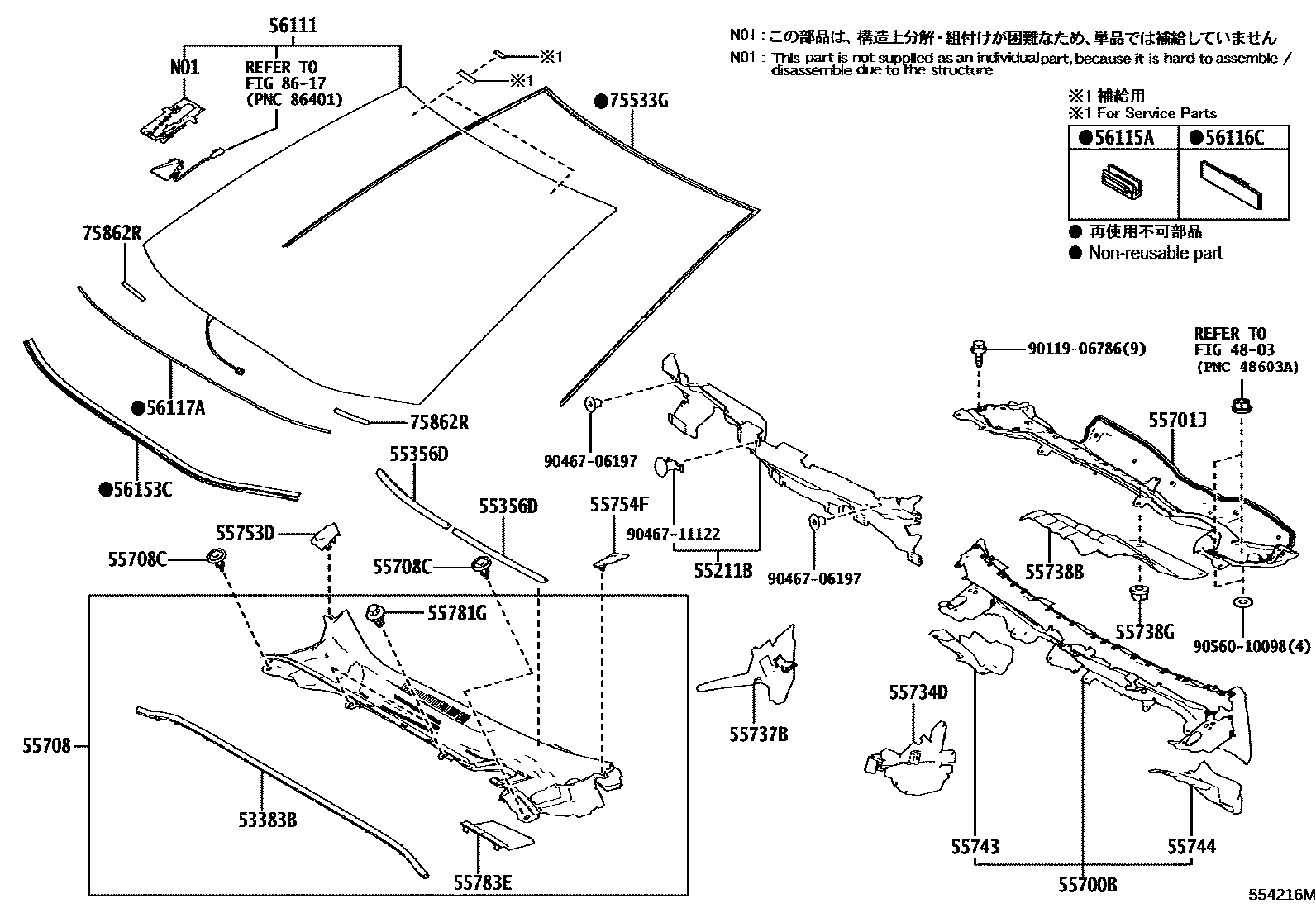

Toyota COROLLA HATCHBACK — COWL PANEL & WINDSHIELD GLASS
4803
53383BSEAL, HOOD TO COWL TOP
55211BSILENCER, FRONT PANEL
Z PACKAGE
55356DCUSHION, INSTRUMENT PANEL, NO.2
55700BCOWL ASSY
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
WITHOUT(COLD AREA SPEC)
WITHOUT(COLD AREA SPEC)
55708CCLIP, COWL TOP VENTILATOR LOUVER
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55738BPROTECTOR, FRONT PANEL COVER, NO.1
55738GCLIP, FRONT PANEL COVER PROTECTOR
BLACK
55743PANEL, COWL TOP OUTSIDE CORNER, RH
55744PANEL, COWL TOP OUTSIDE CORNER, LH
55753DSHIELD, COWL WATER EXTRACT, RH
55754FSHIELD, COWL WATER EXTRACT, LH
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783ELOUVER, COWL TOP VENTILATOR, CENTER
56111GLASS, WINDSHIELD
WINDSHIELD DEICER-WITH
WINDSHIELD DEICER-WITH
WINDSHIELD DEICER-WITH&HEAD UP DISPLAY-WITH
HEAD UP DISPLAY-WITH
WINDSHIELD DEICER-WITH&HEAD UP DISPLAY-WITH
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=1298 OR 725
56153CMOULDING, FRONT WINDOW, INNER CENTER
75533GMOULDING, WINDSHIELD, OUTSIDE
75862RPROTECTOR, ROCKER PANEL MOULDING, NO.2
8617
9011906786
main90119-06786
9046706197
main90467-06197
9046711122
main90467-11122
9056010098
main90560-10098
30 parts on this diagram · 1 diagram in section
