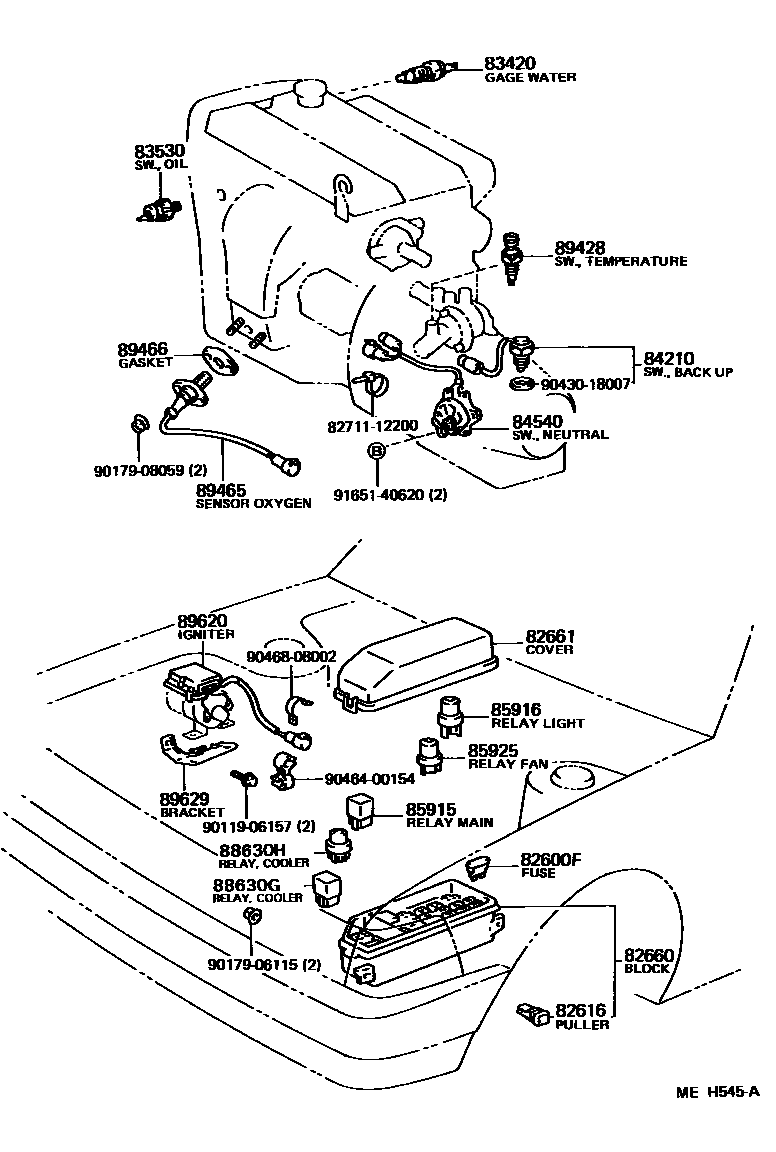

Toyota COROLLA FX — SWITCH & RELAY & COMPUTER
82600FFUSE, FUSE BLOCK
30A,GREEN,30A
10A,RED,10A
15A,BLUE,7.5A
20A,YELLOW,20A
7.5A,BROWN,15A
82616PULLER, FUSE
82660BLOCK ASSY, RELAY, ENGINE ROOM
82661COVER, RELAY BLOCK, NO.1
ENGINE ROOM
COWL
83420GAGE ASSY, WATER TEMPERATURE SENDER
84210SWITCH ASSY, BACK-UP LAMP
84540SWITCH ASSY, NEUTRAL START
85915RELAY, MAIN
85916RELAY, LIGHT CONTROL
85925RELAY, RADIATOR FAN
88630GRELAY ASSY, COOLER
89466GASKET, OXYGEN SENSOR
sub89466-20020
89620IGNITER ASSY
89629BRACKET, IGNITER ASSY
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
9011906157
main90119-06157
9017906115
main90179-06115
9017908059
main90179-08059
9043018007
main90430-18007
9046400154
main90464-00154
9046808002
main90468-08002
9165140620
main91651-40620
26 parts on this diagram · 5 diagrams in section
