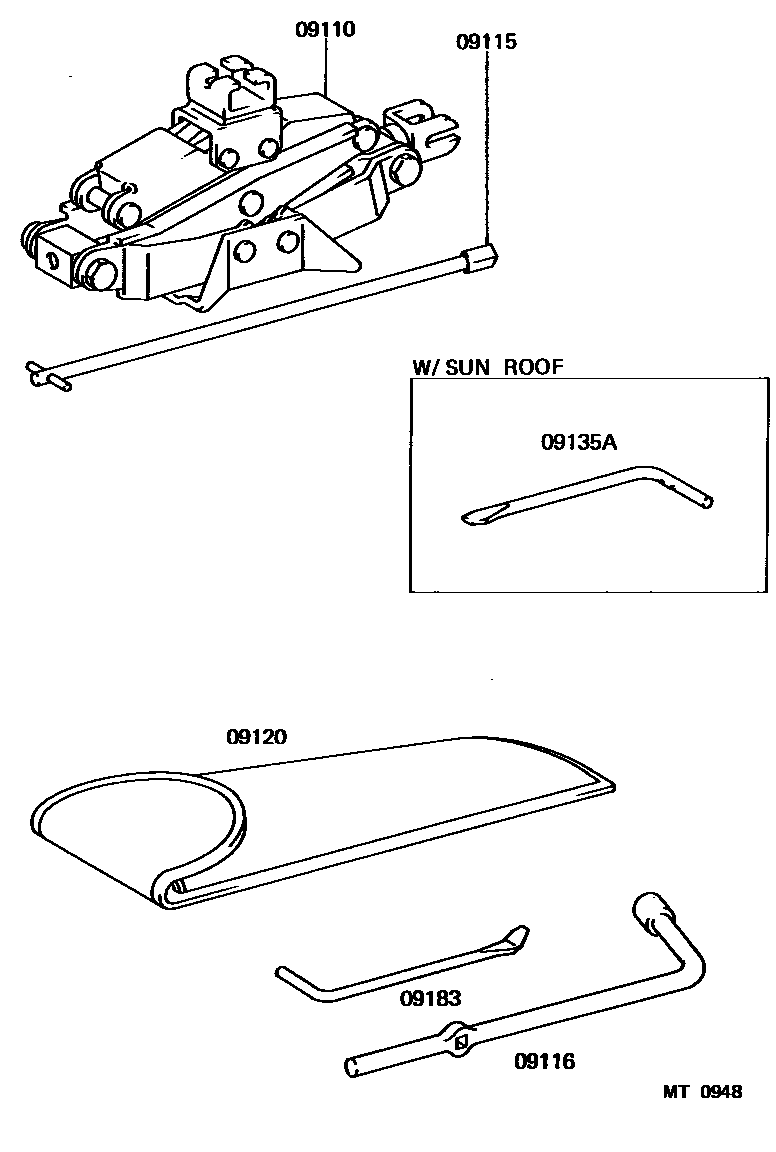

Toyota COROLLA FX — STANDARD TOOL

09110JACK ASSY

main09111-02010iAE82198609-198808

sub09111-22H00

09115ROD SUB-ASSY, JACK HANDLE

main09115-32010iAE82198609-198808

09116LEVER, JACK HANDLE

main09116-16010iAE82198609-198808

09120BAG, TOOL

main09120-12030iAE82198609-198808

sub09120-32010

09135ABIT, SCREW DRIVER

main09135-00012iAE82198609-198808

W/SUN ROOF

09183WRENCH, WHEEL CAP

main09183-00010iAE82198609-198808

6 parts on this diagram · 1 diagram in section
