Toyota COROLLA FX — SEAT BELT & CHILD RESTRAINT SEAT

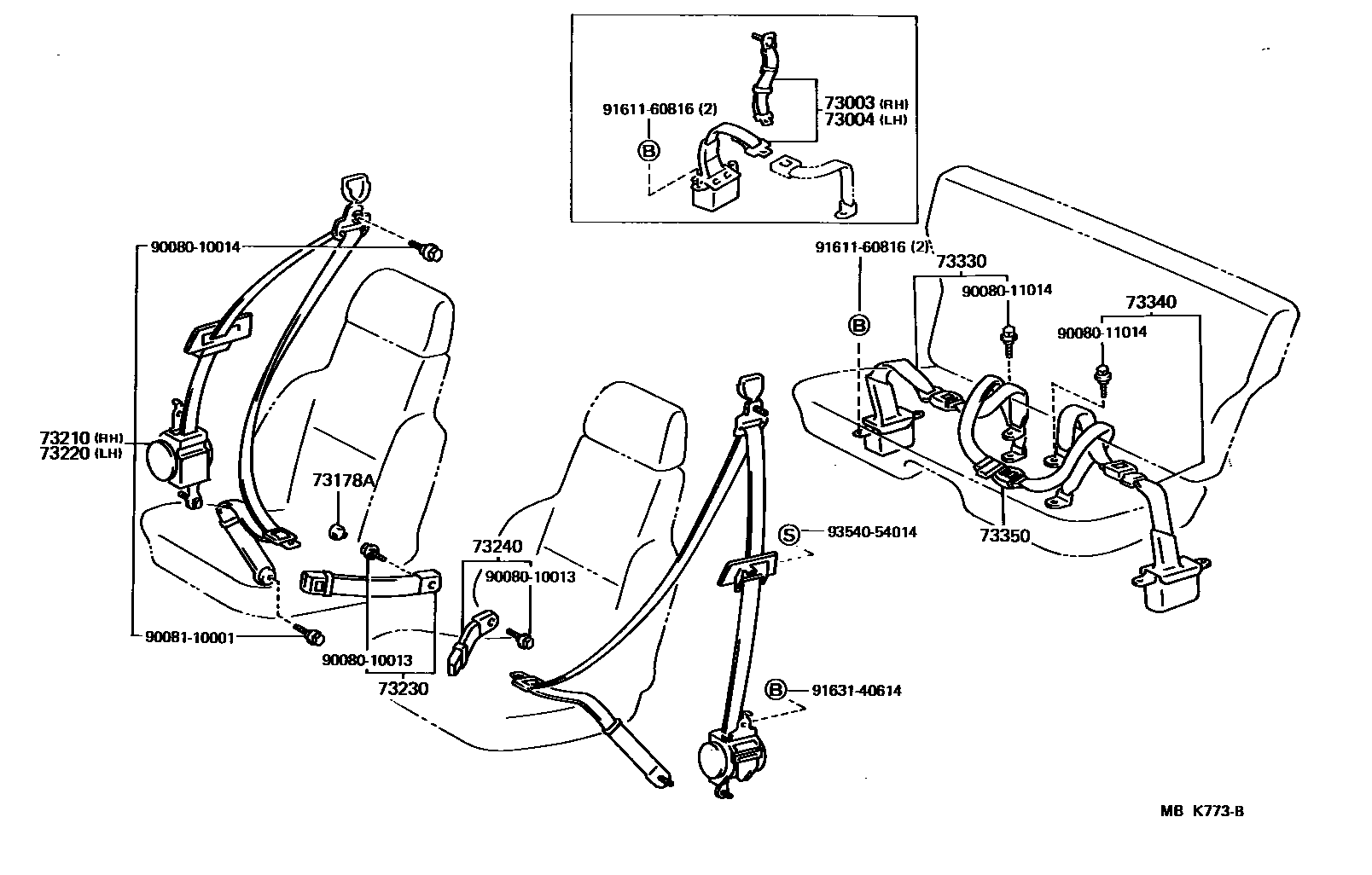

Parts diagram
73003BELT SET, REAR SEAT 3 POINT TYPE, RH
main73003-02010-L6i198709-198808
DARK BLUE,DARK BLUE
main73003-02010-R1i198709-198808
CHARCOAL,CHARCOAL
73004BELT SET, REAR SEAT 3 POINT TYPE, LH
main73004-02010-L6i198709-198808
DARK BLUE,DARK BLUE
main73004-02010-R1i198709-198808
CHARCOAL,CHARCOAL
73178ACAP, SEAT BELT ANCHOR COVER
main73178-01010-J9×2i198609-198808
DARK BLUE,DARK BLUE
main73178-01010-P8×2i198609-198808
CHARCOAL,CHARCOAL
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-02010-L6i198609-198808
DARK BLUE,DARK BLUE
main73210-02010-R1i198609-198808
CHARCOAL,CHARCOAL
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-02010-L6i198609-198808
DARK BLUE,DARK BLUE
main73220-02010-R1i198609-198808
CHARCOAL,CHARCOAL
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-01010-L6i198609-198808
DARK BLUE,DARK BLUE
main73230-01010-R1i198609-198808
CHARCOAL,CHARCOAL
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-01011-L6i198609-198808
DARK BLUE,DARK BLUE
main73240-01011-R1i198609-198808
CHARCOAL,CHARCOAL
73330BELT ASSY, REAR SEAT LAP TYPE, RH
main73330-02010-L6i198609-198709
DARK BLUE,DARK BLUE
main73330-02010-R1i198609-198709
CHARCOAL,CHARCOAL
main73330-02030-L6i198709-198808
DARK BLUE,DARK BLUE
main73330-02030-R1i198709-198808
CHARCOAL,CHARCOAL
73340BELT ASSY, REAR SEAT LAP TYPE, LH
main73340-02010-L6i198609-198709
DARK BLUE,DARK BLUE
main73340-02010-R1i198609-198709
CHARCOAL,CHARCOAL
main73340-02030-L6i198709-198808
DARK BLUE,DARK BLUE
main73340-02030-R1i198709-198808
CHARCOAL,CHARCOAL
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
main73350-02010-L6i198609-198808
DARK BLUE,DARK BLUE
main73350-02010-R1i198609-198808
CHARCOAL,CHARCOAL
9008010013
main90080-10013
9008010014
main90080-10014
9008011014
main90080-11014
9008110001
main90081-10001
9161160816
main91611-60816
9163140614
main91631-40614
9354054014
main93540-54014

17 parts on this diagram · 1 diagram in section

SEAT BELT & CHILD RESTRAINT SEAT for Toyota COROLLA FX

This section contains 17 genuine Toyota parts for the SEAT BELT & CHILD RESTRAINT SEAT system of the Toyota COROLLA FX. Key components include: BELT SET, REAR SEAT 3 POINT TYPE, RH, BELT SET, REAR SEAT 3 POINT TYPE, LH, CAP, SEAT BELT ANCHOR COVER, BELT ASSY, FRONT SEAT OUTER, RH, BELT ASSY, FRONT SEAT OUTER, LH.
