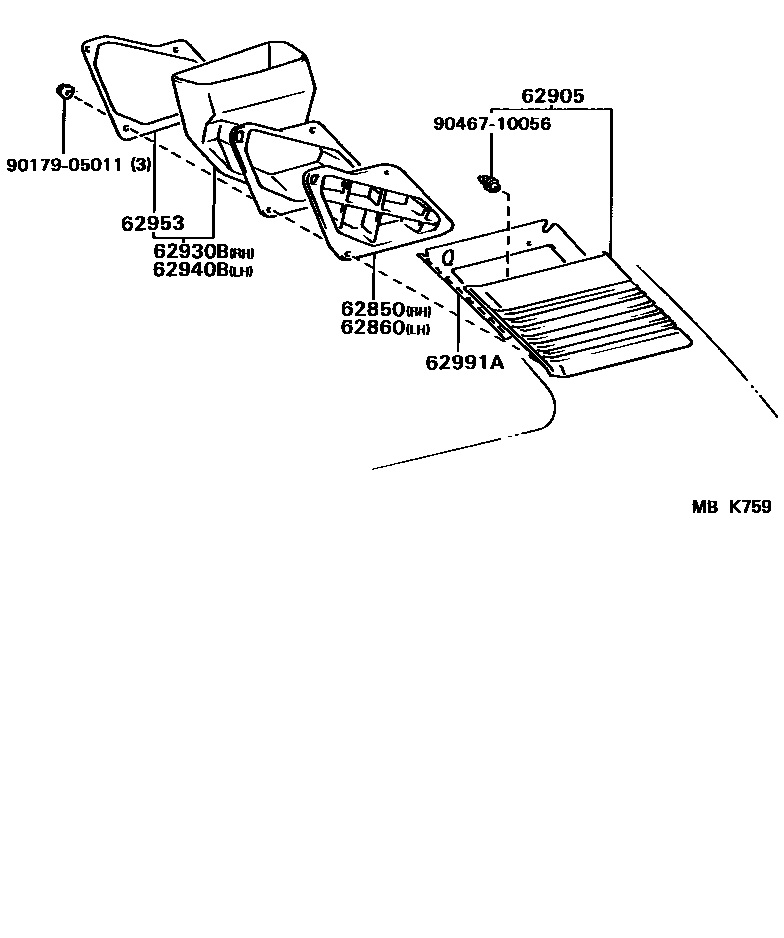

Toyota COROLLA FX — ROOF SIDE VENTILATOR

62850VALVE ASSY, ROOM PRESSURE RELIEF, RH

main62850-12060i198609-198808

62860VALVE ASSY, ROOM PRESSURE RELIEF, LH

main62860-12060i198609-198808

62905LOUVER, QUARTER VENTILATION

main62905-12260i198609-198808

main62906-12260i198609-198808

62930BDUCT ASSY, QUARTER VENT, RH

main62931-12190i198609-198808

62940BDUCT ASSY, QUARTER VENT, LH

main62932-12190i198609-198808

62953SEAL, QUARTER VENT DUCT, NO.1

main62957-12080×2i198609-198808

62991APAD, QUARTER VENT LOUVER

main62991-12080×2i198609-198808

9017905011

main90179-05011

9046710056

main90467-10056

9 parts on this diagram · 1 diagram in section

ROOF SIDE VENTILATOR for Toyota COROLLA FX

This section contains 9 genuine Toyota parts for the ROOF SIDE VENTILATOR system of the Toyota COROLLA FX. Key components include: VALVE ASSY, ROOM PRESSURE RELIEF, RH, VALVE ASSY, ROOM PRESSURE RELIEF, LH, LOUVER, QUARTER VENTILATION, DUCT ASSY, QUARTER VENT, RH, DUCT ASSY, QUARTER VENT, LH.
