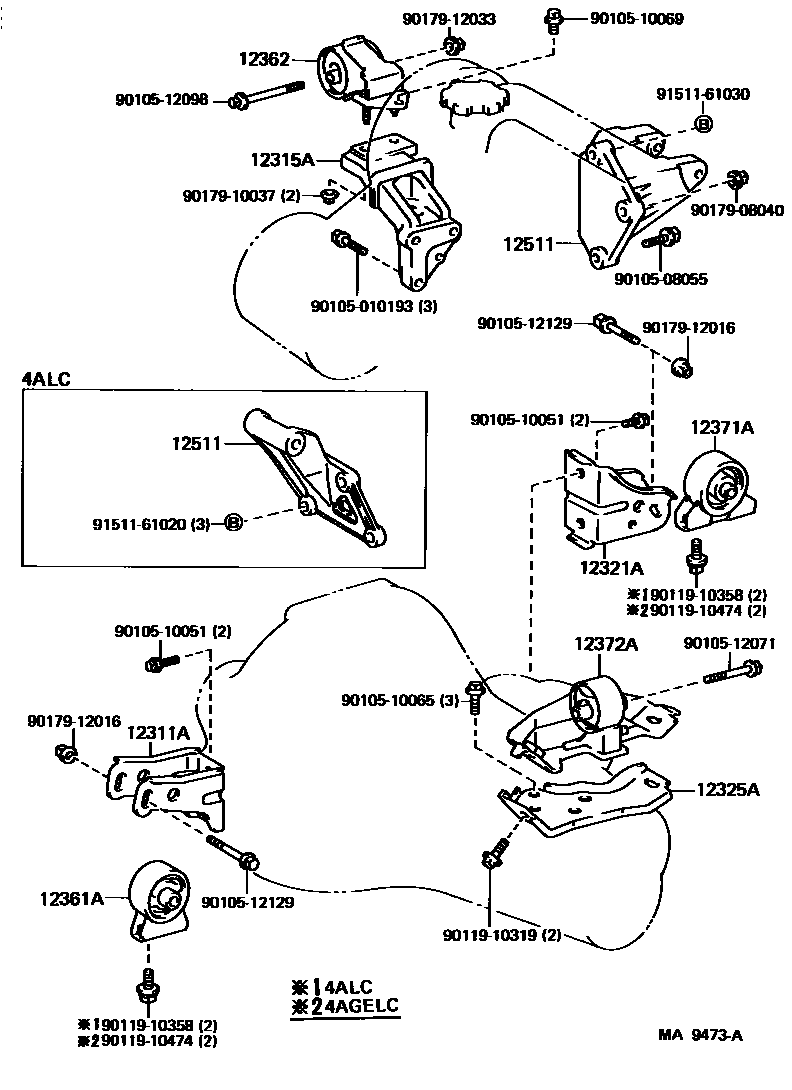

Toyota COROLLA FX — MOUNTING
12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12511BRACKET, ALTERNATOR, NO.1
9010501019
main90105-01019
9010508055
main90105-08055
9010510051
main90105-10051
9010510065
main90105-10065
9010510069
main90105-10069
9010512071
main90105-12071
9010512098
main90105-12098
9010512129
main90105-12129
9011910319
main90119-10319
9011910358
main90119-10358
9011910474
main90119-10474
9017908040
main90179-08040
9017910037
main90179-10037
9017912016
main90179-12016
9017912033
main90179-12033
9151161020
main91511-61020
9151161030
main91511-61030
26 parts on this diagram · 2 diagrams in section
MOUNTING for Toyota COROLLA FX
This section contains 27 genuine Toyota parts for the MOUNTING system of the Toyota COROLLA FX. Key components include: BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE), INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE).
