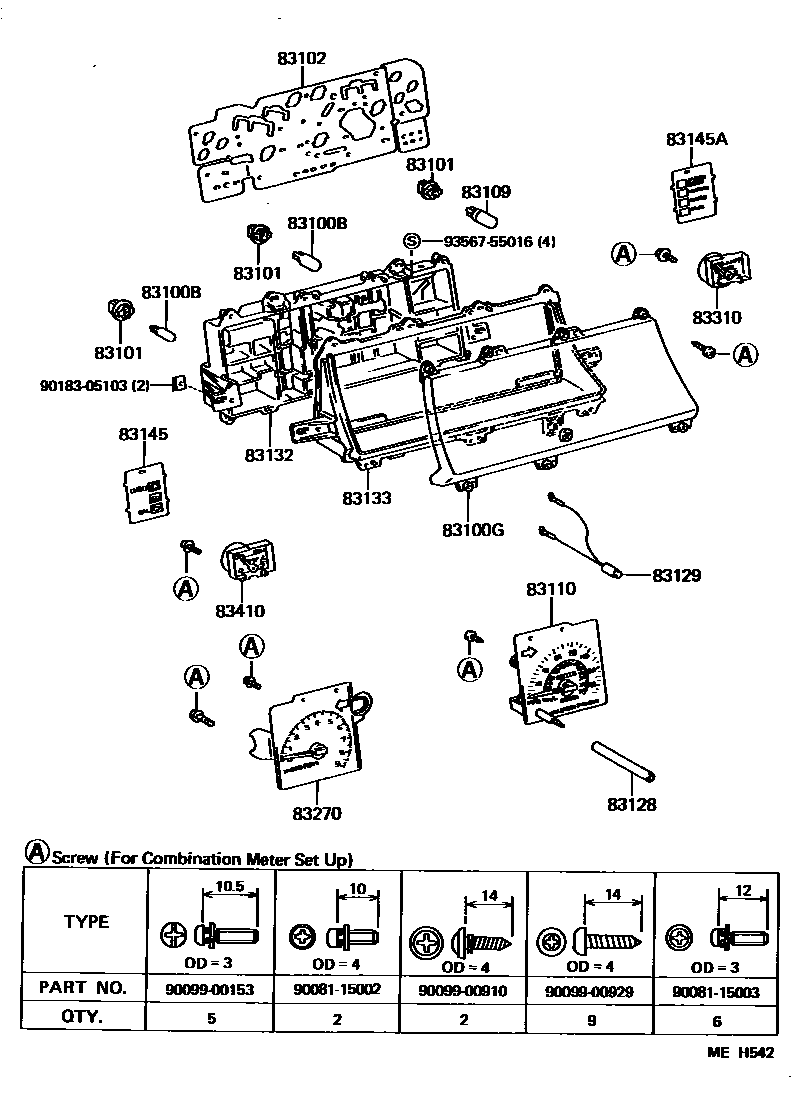

Toyota COROLLA FX — METER

0001 1 0002 1 0003 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018×7iAE82198609-198808

12V 1.2W W/O SOCKET,12V 1.4W

main99132-12034×8iAE82198609-198808

12V 3.4W,12V 3.4W

83100GGLASS, COMBINATION METER

main83138-12730iAE82..GTS,Q198609-198808

main83138-12810iAE82..D198702-198808

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×8iAE82198609-198808

BULB=12V 3.4W

main83101-14040×6iAE82..GTS,Q198609-198808

BULB=12V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-02010iAE82..GTS,Q198609-198808

main83247-1A650iAE82..D198702-198808

sub83247-1A690

83109BULB, COMBINATION METER, NO.2

main83109-24030×3iAE82198609-198808

12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP

83110SPEEDOMETER ASSY

main83110-02010iAE82..GTS,Q198609-198808

main83110-1A502iAE82..D198702-198808

83128KNOB, TRIP COUNTER

main83128-02010iAE82..GTS,Q198609-198808

main83128-12690iAE82..D198702-198808

83129WIRE, METER

main83129-02010iAE82..GTS,Q198609-198808

83132CASE, COMBINATION METER

main83132-02010iAE82..GTS,Q198609-198808

main83132-12530iAE82..D198702-198808

83133PLATE, COMBINATION METER, NO.1

main83133-1A090iAE82..GTS,Q198609-198808

main83133-1A110iAE82..D198702-198808

83145LENS, METER, NO.1

main83145-02020iAE82..GTS,Q198609-198808

main83145-1A630iAE82..D198702-198808

sub83145-12710

83145ALENS, METER, NO.2

main83145-02010iAE82..GTS,Q198609-198808

main83145-1A750iAE82..D198702-198808

83270TACHOMETER ASSY, ENGINE

main83242-02010iAE82..GTS,Q198609-198808

83310GAGE ASSY, FUEL RECEIVER

main83243-02010iAE82..GTS,Q198609-198808

main83243-12550iAE82..D198702-198808

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-02010iAE82..GTS,Q198609-198808

main83244-12790iAE82..D198702-198808

9008115002

main90081-15002

9008115003

main90081-15003

9009900153

main90099-00153

9009900910

main90099-00910

9009900929

main90099-00929

9018305103

main90183-05103

9356755016

main93567-55016

22 parts on this diagram · 3 diagrams in section
