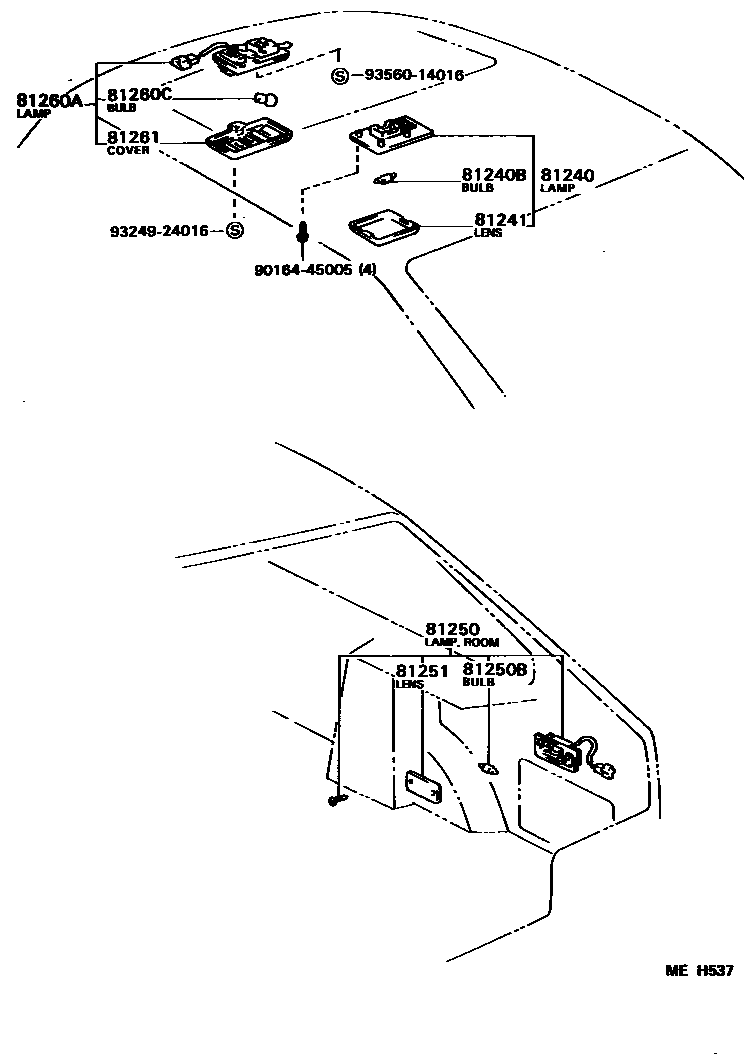

Toyota COROLLA FX — INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
DARK BLUE,DARK BLUE
CHARCOAL,CHARCOAL
DARK BLUE,DARK BLUE
CHARCOAL,CHARCOAL
81240BBULB, ROOM LAMP, NO.1
12V 10W,12V 10W
81241LENS, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
DARK BLUE,DARK BLUE
CHARCOAL,CHARCOAL
81250BBULB, ROOM LAMP, NO.2
12V 5W,12V 5W
81251LENS, ROOM LAMP, NO.2
81260ALAMP ASSY, MAP
DARK BLUE,DARK BLUE
CHARCOAL,CHARCOAL
81260CBULB(FOR MAP LAMP)
12V 10W,12V 10W
81261LENS AND COVER, MAP LAMP
DARK BLUE,DARK BLUE
CHARCOAL,CHARCOAL
9016445005
main90164-45005
9324924016
main93249-24016
9356014016
main93560-14016
12 parts on this diagram · 1 diagram in section
INTERIOR LAMP for Toyota COROLLA FX
This section contains 12 genuine Toyota parts for the INTERIOR LAMP system of the Toyota COROLLA FX. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2, BULB, ROOM LAMP, NO.2.
