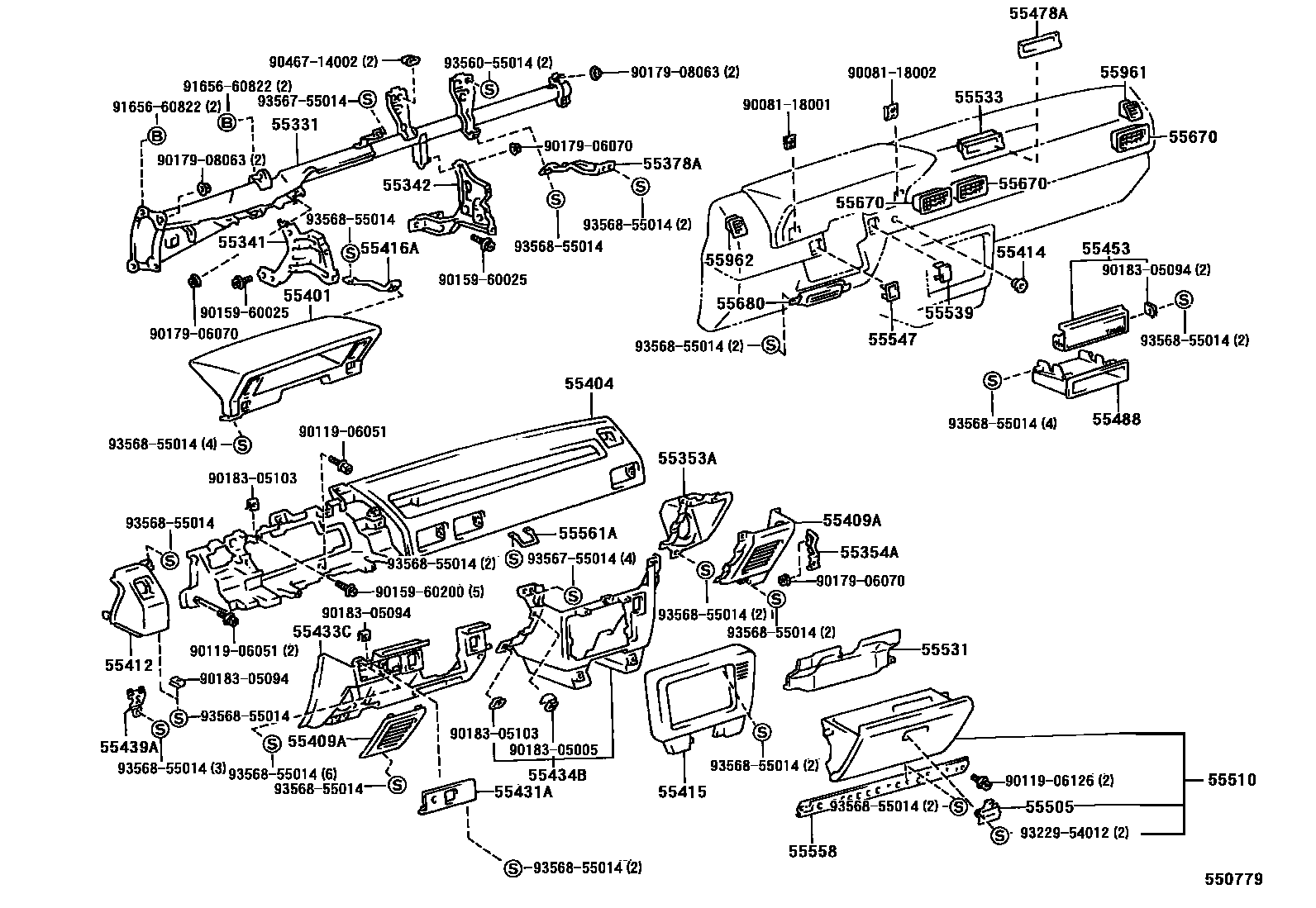

Toyota COROLLA FX — INSTRUMENT PANEL & GLOVE COMPARTMENT

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-12092i198609-198808

55341BRACE, INSTRUMENT PANEL, NO.1

main55351-12020i198609-198808

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-12080i198609-198808

55353ABRACKET, SPEAKER MOUNTING, NO.1

main55353-01010i198609-198808

55354ABRACKET, SPEAKER MOUNTING, NO.2

main55354-12030i198609-198808

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-12080i198609-198808

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-02010-A1i198609-198808

CHARCOAL,CHARCOAL

main55404-02010-K1i198609-198808

DARK BLUE,DARK BLUE

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-02010-A0i198609-198808

CHARCOAL,CHARCOAL

main55401-02010-K0i198609-198808

DARK BLUE,DARK BLUE

55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

main55472-01010-A2i198609-198808

LH,CHARCOAL,CHARCOAL

main55472-01010-K2i198609-198808

LH,DARK BLUE,DARK BLUE

main55473-01010-A2i198609-198808

RH,CHARCOAL,CHARCOAL

main55473-01010-K2i198609-198808

RH,DARK BLUE,DARK BLUE

55412PANEL, INSTRUMENT CLUSTER FINISH, END

main55414-02010-A1i198609-198808

CHARCOAL,CHARCOAL

main55414-02010-K1i198609-198808

DARK BLUE,DARK BLUE

55414BEZEL, CIGAR LIGHTER HOLE

main55477-12060i198609-198808

55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-02010-J9i198609-198808

DARK BLUE,DARK BLUE

main55412-02010-P8i198609-198808

CHARCOAL,CHARCOAL

55416ARETAINER, METER HOOD, NO.1

main55416-01011i198609-198808

55431APANEL, INSTRUMENT PANEL FINISH

main55431-01010-J9i198609-198808

DARK BLUE,DARK BLUE

main55431-01010-P8i198609-198808

CHARCOAL,CHARCOAL

55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH

main55433-01010-A2i198609-198808

CHARCOAL,CHARCOAL

main55433-01010-K2i198609-198808

DARK BLUE,DARK BLUE

main55433-01020-A2i198609-198808

W/*TIS,CHARCOAL,CHARCOAL

main55433-01020-K2i198609-198808

W/*TIS,DARK BLUE,DARK BLUE

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-02010-A2i198609-198808

CHARCOAL,CHARCOAL

main55434-02010-K2i198609-198808

DARK BLUE,DARK BLUE

55439ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.3

main55439-12020i198609-198808

55453COVER, RADIO TUNER OPENING

main55522-32010i198609-198808

55478ABEZEL, AUTO CLOCK HOLE

main55478-02010-A1i198609-198808

CHARCOAL,CHARCOAL

main55478-02010-K1i198609-198808

DARK BLUE,DARK BLUE

55488COVER, STEREO OPENING

main55521-16010i198609-198808

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55560-01010-J9i198609-198808

DARK BLUE,DARK BLUE

main55560-01010-P8i198609-198808

CHARCOAL,CHARCOAL

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-01010-A2i198609-198808

CHARCOAL,CHARCOAL

main55550-01010-K2i198609-198808

DARK BLUE,DARK BLUE

55531PANEL, GLOVE COMPARTMENT

main55531-12110i198609-198808

55533COVER, AUTO CLOCK HOLE

main55533-01010-A1i198609-198808

CHARCOAL,W/O(CLOCK),CHARCOAL

main55533-01010-K1i198609-198808

DARK BLUE,W/O(CLOCK),DARK BLUE

55539COVER, SPARE SWITCH HOLE

main55539-01020-D0i198609-198808

BLACK,BLACK

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-01010-D0i198609-198808

BLACK,BLACK

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55558-01010i198609-198808

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-01010i198609-198808

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-01010-J9×3i198609-198808

DARK BLUE,DARK BLUE

main55670-01010-P8×3i198609-198808

CHARCOAL,CHARCOAL

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-01011-D0i198609-198808

BLACK,BLACK

55961NOZZLE, SIDE DEFROSTER, NO.1

main55093-01010-J9i198609-198808

DARK BLUE,DARK BLUE

main55093-01010-P8i198609-198808

CHARCOAL,CHARCOAL

55962NOZZLE, SIDE DEFROSTER, NO.2

main55094-01010-J9i198609-198808

DARK BLUE,DARK BLUE

main55094-01010-P8i198609-198808

CHARCOAL,CHARCOAL

9008118001

main90081-18001

9008118002

main90081-18002

9011906051

main90119-06051

9011906126

main90119-06126

9015960025

main90159-60025

9015960200

main90159-60200

9017906070

main90179-06070

9017908063

main90179-08063

9018305005

main90183-05005

9018305094

main90183-05094

9018305103

main90183-05103

9046714002

main90467-14002

9165660822

main91656-60822

9322954012

main93229-54012

9356055014

main93560-55014

9356755014

main93567-55014

9356855014

main93568-55014

49 parts on this diagram · 1 diagram in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota COROLLA FX

This section contains 49 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota COROLLA FX. Key components include: REINFORCEMENT, INSTRUMENT PANEL, BRACE, INSTRUMENT PANEL, NO.1, BRACE, INSTRUMENT PANEL, NO.2, BRACKET, SPEAKER MOUNTING, NO.1, BRACKET, SPEAKER MOUNTING, NO.2.
