Toyota COROLLA FX — INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

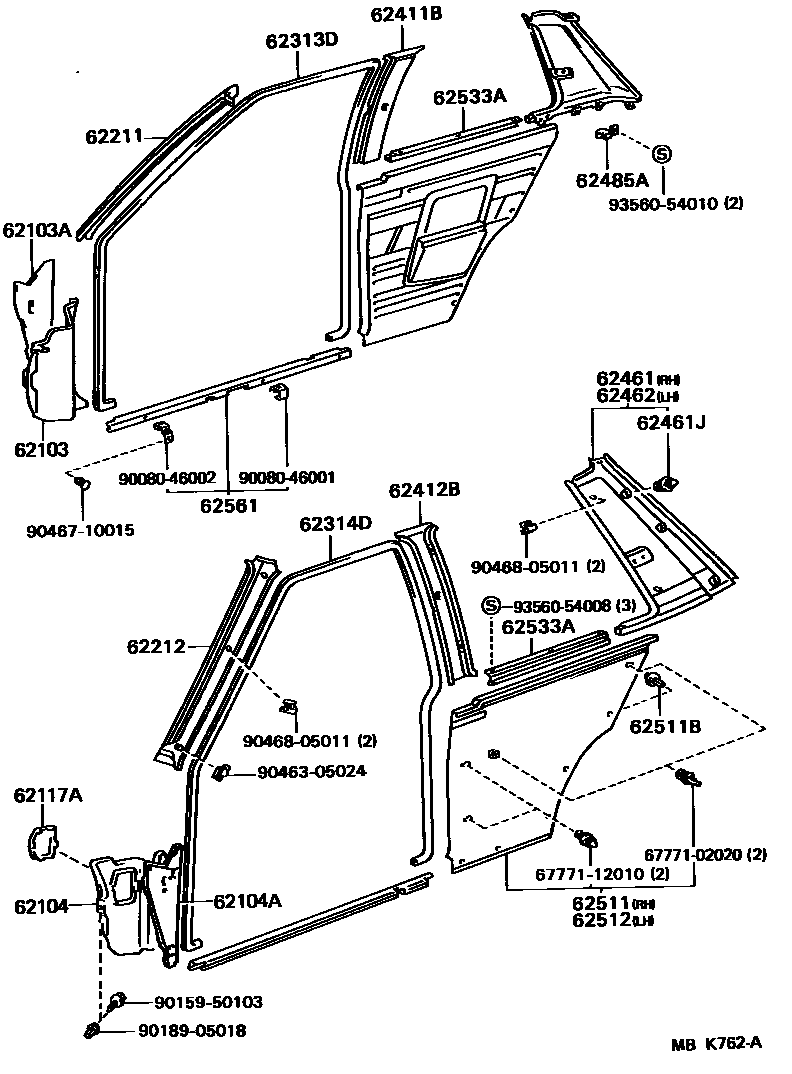

Parts diagram
62103BOARD SUB-ASSY, COWL SIDE TRIM, RH
main62101-01010-J9i198609-198808
DARK BLUE,DARK BLUE
main62101-01010-P8i198609-198808
CHARCOAL,CHARCOAL
62103AINSULATOR SUB-ASSY, COWL SIDE, RH
main62105-01010i198609-198808
62104BOARD SUB-ASSY, COWL SIDE TRIM, LH
main62102-01010-J9i198609-198808
DARK BLUE,DARK BLUE
main62102-01010-P8i198609-198808
CHARCOAL,CHARCOAL
62104AINSULATOR SUB-ASSY, COWL SIDE, LH
main62106-01010i198609-198808
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
main62117-01010-J9i198609-198808
DARK BLUE,DARK BLUE
main62117-01010-P8i198609-198808
CHARCOAL,CHARCOAL
62211GARNISH, FRONT PILLAR, RH
main62211-02010-J9i198609-198808
DARK BLUE,DARK BLUE
main62211-02010-P8i198609-198808
CHARCOAL,CHARCOAL
62212GARNISH, FRONT PILLAR, LH
main62212-02010-J9i198609-198808
DARK BLUE,DARK BLUE
main62212-02010-P8i198609-198808
CHARCOAL,CHARCOAL
62313DTRIM, FRONT DOOR OPENING, RH
main62313-02010-K5i198609-198808
DARK BLUE,DARK BLUE
main62313-02010-R2i198609-198808
CHARCOAL,CHARCOAL
62314DTRIM, FRONT DOOR OPENING, LH
main62313-02010-K5i198609-198808
DARK BLUE,DARK BLUE
main62313-02010-R2i198609-198808
CHARCOAL,CHARCOAL
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-02010-J9i198609-198808
DARK BLUE,DARK BLUE
main62411-02010-P8i198609-198808
CHARCOAL,CHARCOAL
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-02010-J9i198609-198808
DARK BLUE,DARK BLUE
main62412-02010-P8i198609-198808
CHARCOAL,CHARCOAL
62461GARNISH, ROOF SIDE TRIM, RH
main62471-02010-J9i198609-198808
DARK BLUE,DARK BLUE
main62471-02010-P8i198609-198808
CHARCOAL,CHARCOAL
62461JRETAINER, ROOF SIDE TRIM GARNISH
main67771-02020×6i198609-198808
62462GARNISH, ROOF SIDE TRIM, LH
main62472-02010-J9i198609-198808
DARK BLUE,DARK BLUE
main62472-02010-P8i198609-198808
CHARCOAL,CHARCOAL
62485ARETAINER, ROOF SIDE INNER GARNISH
main62485-12050×2i198609-198808
62511BOARD, QUARTER INSIDE TRIM, RH
main62510-02010-J7i198609-198709
DARK BLUE,DARK BLUE
main62510-02010-R7i198609-198709
CHARCOAL,CHARCOAL
main62510-02011-G5i198709-198808
CHARCOAL,CHARCOAL
main62510-02011-S3i198709-198808
DARK BLUE,DARK BLUE
main62510-02020-R3i198609-198709
CHARCOAL,CHARCOAL
main62510-02020-T0i198609-198709
DARK BLUE,DARK BLUE
main62510-02021-G3i198709-198808
CHARCOAL,CHARCOAL
main62510-02021-S1i198709-198808
DARK BLUE,DARK BLUE
main62510-02031-A4i198702-198808
CHARCOAL,CHARCOAL
main62510-02031-K3i198702-198808
DARK BLUE,DARK BLUE
main62510-02040-E8i198702-198808
LE PACKAGE,DARK BLUE,DARK BLUE
main62510-02040-P1i198702-198808
LE PACKAGE,CHARCOAL,CHARCOAL
62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)
main90467-11021-J9×6i198609-198808
DARK BLUE,DARK BLUE
main90467-11021-P8×6i198609-198808
CHARCOAL,CHARCOAL
62512BOARD, QUARTER INSIDE TRIM, LH
main62520-02010-J7i198609-198709
DARK BLUE,DARK BLUE
main62520-02010-R7i198609-198709
CHARCOAL,CHARCOAL
main62520-02011-G5i198709-198808
CHARCOAL,CHARCOAL
main62520-02011-S3i198709-198808
DARK BLUE,DARK BLUE
main62520-02020-R3i198609-198709
CHARCOAL,CHARCOAL
main62520-02020-T0i198609-198709
DARK BLUE,DARK BLUE
main62520-02021-G3i198709-198808
CHARCOAL,CHARCOAL
main62520-02021-S1i198709-198808
DARK BLUE,DARK BLUE
main62520-02031-A4i198702-198808
CHARCOAL,CHARCOAL
main62520-02031-K3i198702-198808
DARK BLUE,DARK BLUE
main62520-02040-E8i198702-198808
LE PACKAGE,DARK BLUE,DARK BLUE
main62520-02040-P1i198702-198808
LE PACKAGE,CHARCOAL,CHARCOAL
62533ABRACKET, QUARTER TRIM CLAMP
main62533-12110×2i198609-198808
62561PROTECTOR, ROCKER PANEL, INNER FRONT
main62561-02010i198609-198808
RH
main62562-02010i198609-198808
LH
6777102020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-02020
6777112010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12010
9008046001
main90080-46001
9008046002
main90080-46002
9015950103
main90159-50103
9018905018
main90189-05018
9046305024
main90463-05024
9046710015
main90467-10015
9046805011
main90468-05011
9356054008
main93560-54008
9356054010
main93560-54010

31 parts on this diagram · 1 diagram in section

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING for Toyota COROLLA FX

This section contains 31 genuine Toyota parts for the INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING system of the Toyota COROLLA FX. Key components include: BOARD SUB-ASSY, COWL SIDE TRIM, RH, INSULATOR SUB-ASSY, COWL SIDE, RH, BOARD SUB-ASSY, COWL SIDE TRIM, LH, INSULATOR SUB-ASSY, COWL SIDE, LH, COVER, COWL SIDE TRIM SERVICE HOLE.
