Toyota COROLLA FX — HEATING & AIR CONDITIONING - COOLER UNIT

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-01011i198609-198808

88510UNIT ASSY, COOLER

main88510-01011i198702-198808

main88510-02020i198609-198808

88515VALVE, COOLER EXPANSION

main88515-01010i198609-198808

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-01010i198609-198808

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-01011i198702-198808

main88605-02020i198609-198808

88625THERMISTOR, COOLER, NO.1

main88625-01011i198609-198808

88645GSWITCH, PRESSURE

main88645-01010i198609-198808

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-01040i198609-198808

8857801020PAKING, COOLER AIR DUCT

main88578-01020

8868802070BRACKET, COOLER DIAPHRAGM

main88688-02070

8871801050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-01050

8871802080PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02080

8889201010BRACKET, COOLER EVAPORATOR MOUNTING

main88892-01010

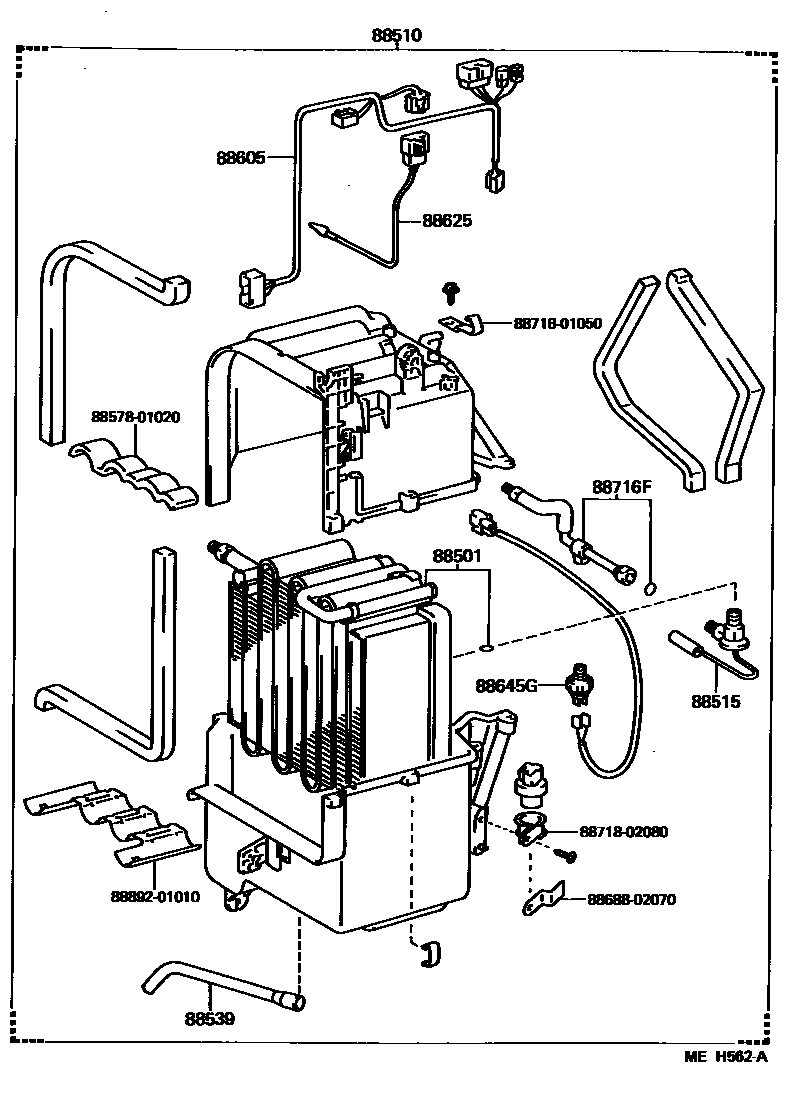

13 parts on this diagram · 3 diagrams in section

HEATING & AIR CONDITIONING - COOLER UNIT for Toyota COROLLA FX

This section contains 23 genuine Toyota parts for the HEATING & AIR CONDITIONING - COOLER UNIT system of the Toyota COROLLA FX. Key components include: EVAPORATOR SUB-ASSY, COOLER, NO.1, UNIT ASSY, COOLER, VALVE, COOLER EXPANSION, HOSE, COOLER UNIT DRAIN, NO.1, HARNESS SUB-ASSY, COOLER WIRING, NO.1.
