Toyota COROLLA FX — HEATING & AIR CONDITIONING - COOLER PIPING
88453FAN, COOLING (FOR CONDENSER)
88460CONDENSER ASSY, COOLER
88470RECEIVER & DRYER ASSY, COOLER
88472BRACKET, RECEIVER TANK, NO.1
88550MOTOR ASSY, BLOWER (FOR CONDENSER)
88590BLOWER ASSY, W/SHROUD
NO.1
NO.2
88596BPLATE, CAUTION, NO.1
88596CPLATE, CAUTION, NO.2
88716APIPE, COOLER REFRIGERANT LIQUID, A
8846701020CUSHION, COOLER CONDENSER, NO.1
main88467-01020
8846701030CUSHION, COOLER CONDENSER, NO.1
main88467-01030
8846701040CUSHION, COOLER CONDENSER, NO.1
main88467-01040
8846702010CUSHION, COOLER CONDENSER, NO.1
main88467-02010
8846901010SWITCH, PRESSURE CONTROL
main88469-01010
8846901020SWITCH, PRESSURE CONTROL
main88469-01020
8868802020BRACKET, COOLER DIAPHRAGM
main88688-02020
8868802050BRACKET, COOLER DIAPHRAGM
main88688-02050
8868802060BRACKET, COOLER DIAPHRAGM
main88688-02060
8889401010
main88894-01010
9011906029
main90119-06029
9011906100
main90119-06100
9165140614
main91651-40614
9165640630
main91656-40630

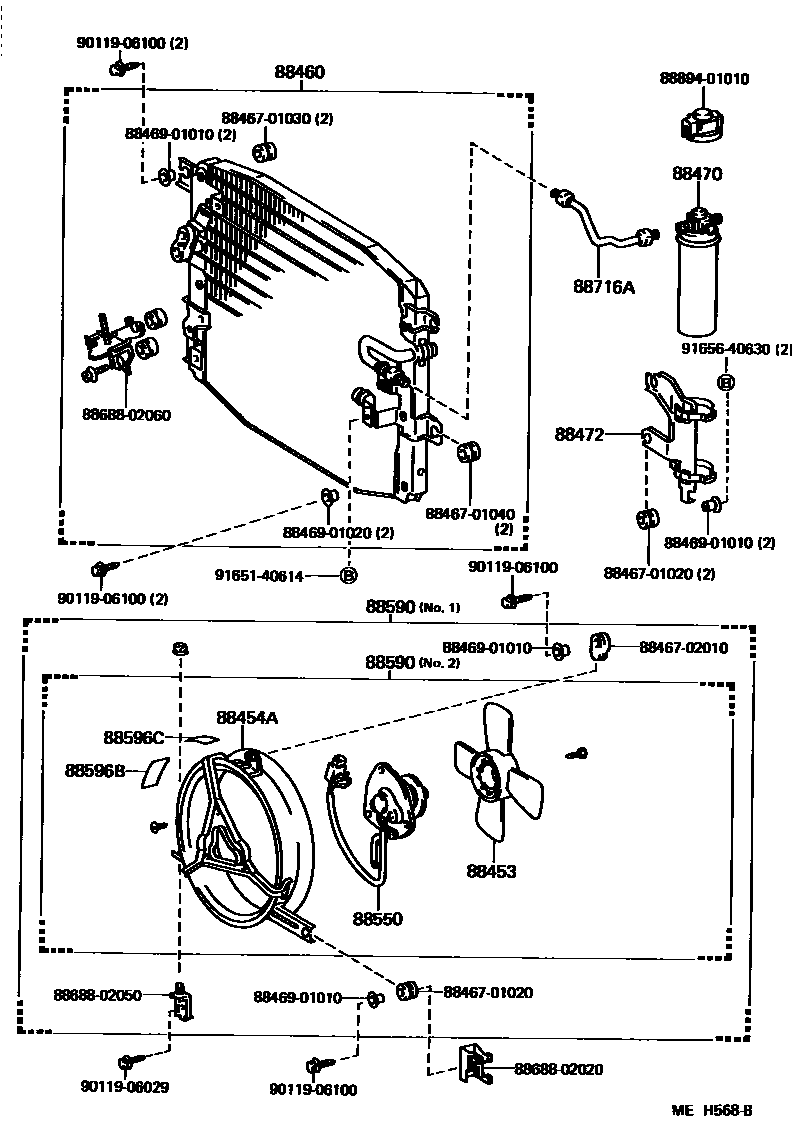

24 parts on this diagram · 4 diagrams in section
HEATING & AIR CONDITIONING - COOLER PIPING for Toyota COROLLA FX
This section contains 70 genuine Toyota parts for the HEATING & AIR CONDITIONING - COOLER PIPING system of the Toyota COROLLA FX. Key components include: CAP, SERVICE VALVE (FOR COOLER PIPE), FAN, COOLING (FOR CONDENSER), SHROUD, FAN, CONDENSER ASSY, COOLER, RECEIVER & DRYER ASSY, COOLER.
