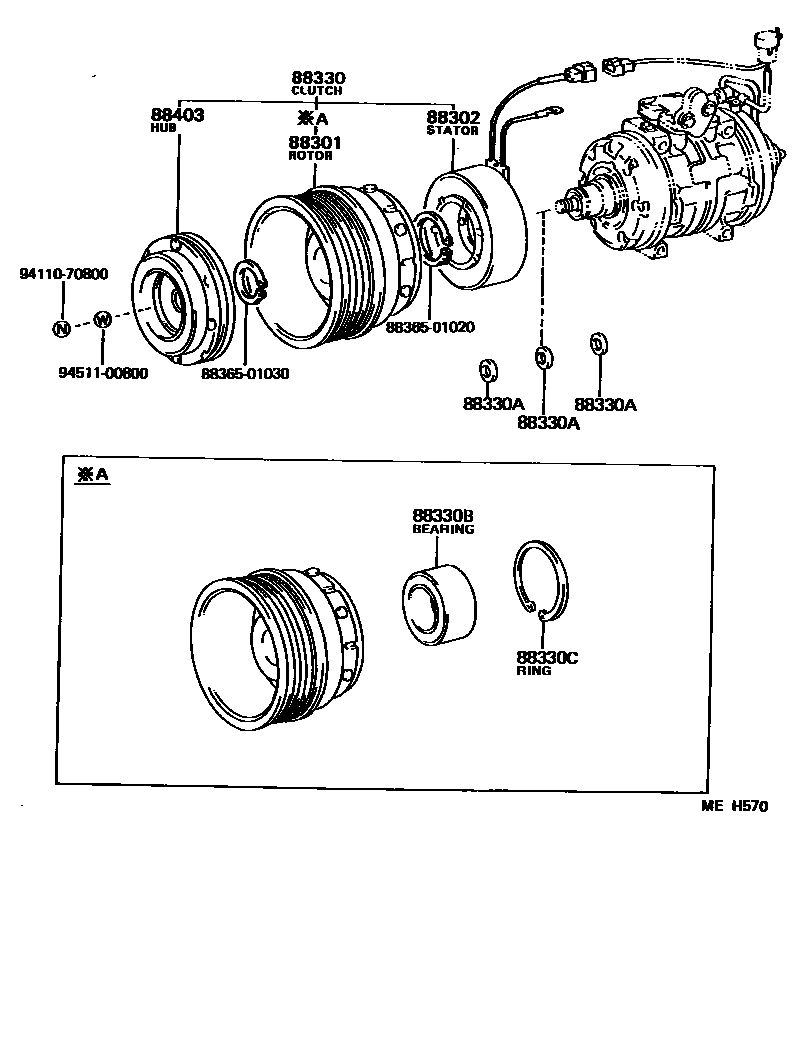

Toyota COROLLA FX — HEATING & AIR CONDITIONING - COMPRESSOR
88301ROTOR SUB-ASSY, MAGNET CLUTCH
88302STATOR SUB-ASSY, MAGNET CLUTCH
88330CLUTCH ASSY, MAGNET
88330AWASHER (FOR MAGNET CLUTCH)
T=0.5
T=0.1
T=0.2
88330BBEARING, MAGNET CLUTCH
88330CRING, SNAP (FOR MAGNET CLUTCH)
88403HUB SUB-ASSY, MAGNET CLUTCH
8836501020RING, SNAP
main88365-01020
8836501030RING, SNAP
main88365-01030
9411070800
main94110-70800
9451100800
main94511-00800
11 parts on this diagram · 3 diagrams in section
HEATING & AIR CONDITIONING - COMPRESSOR for Toyota COROLLA FX
This section contains 47 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota COROLLA FX. Key components include: RADIATOR & WATER OUTLET, V-BELT, ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, CYLINDER SUB-ASSY, COOLER COMPRESSOR.
