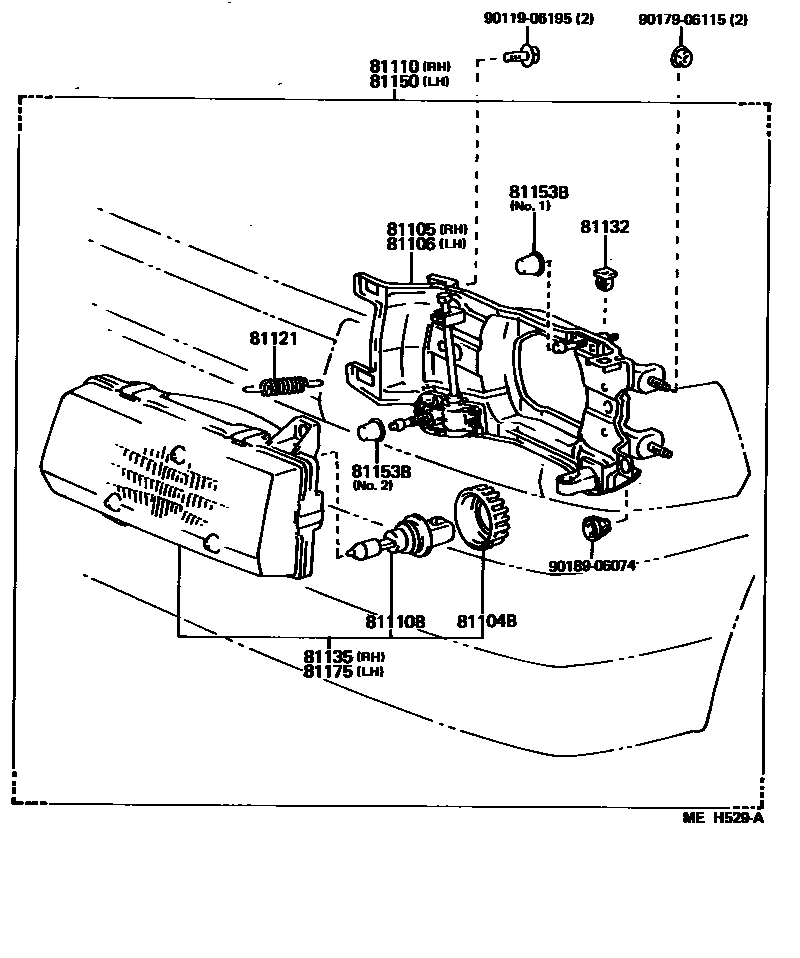

Toyota COROLLA FX — HEADLAMP

81104BLOCKING CAP, HEADLAMP

main81104-22520×2i198609-198808

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81101-02010i198609-198808

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81102-02010i198609-198808

81110HEADLAMP ASSY, RH

main81110-02010i198609-198808

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13032×2i198609-198808

12V 65/45W,*HAL,*WH,12V 65/45W

81121SPRING, HEADLAMP TENSION

main81121-22520×2i198609-198808

81132NUT, HEADLAMP SELF LOCKING

main81137-22530×2i198609-198808

81135UNIT ASSY, HEADLAMP, RH

main81130-02010i198609-198808

81150HEADLAMP ASSY, LH

main81150-02010i198609-198808

81153BBEARING, HEADLAMP

main81127-1A191×2i198609-198808

NO.1

main81127-32200×2i198609-198808

NO.2

81175UNIT ASSY, HEADLAMP, LH

main81170-02010i198609-198808

9011906195

main90119-06195

9017906115

main90179-06115

9018906074

main90189-06074

14 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota COROLLA FX

This section contains 14 genuine Toyota parts for the HEADLAMP system of the Toyota COROLLA FX. Key components include: LOCKING CAP, HEADLAMP, HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1).
