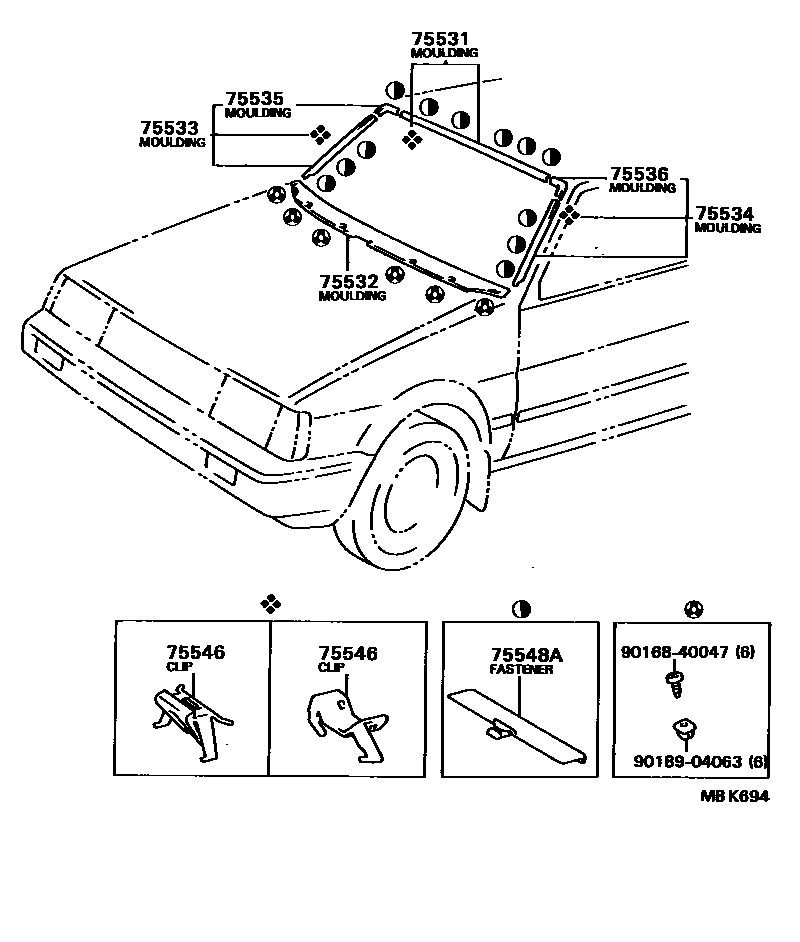

Toyota COROLLA FX — FRONT MOULDING

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-12230i198609-198808

75532MOULDING, WINDSHIELD, LOWER

main75535-12190i198609-198808

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-12250i198609-198808

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-12180i198609-198808

75535MOULDING, WINDSHIELD CORNER, UPPER RH

main75541-12120i198609-198808

75536MOULDING, WINDSHIELD CORNER, UPPER LH

main75542-12090i198609-198808

75546CLIP, WINDSHIELD OUTSIDE MOULDING

main75545-12040i198609-198808

UPR

main75546-12020i198609-198808

SIDE

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-16010i198609-198808

9016840047

main90168-40047

9018904063

main90189-04063

10 parts on this diagram · 1 diagram in section

FRONT MOULDING for Toyota COROLLA FX

This section contains 10 genuine Toyota parts for the FRONT MOULDING system of the Toyota COROLLA FX. Key components include: MOULDING, WINDSHIELD, OUTER UPPER, MOULDING, WINDSHIELD, LOWER, MOULDING, WINDSHIELD, OUTSIDE RH, MOULDING, WINDSHIELD, OUTSIDE LH, MOULDING, WINDSHIELD CORNER, UPPER RH.
