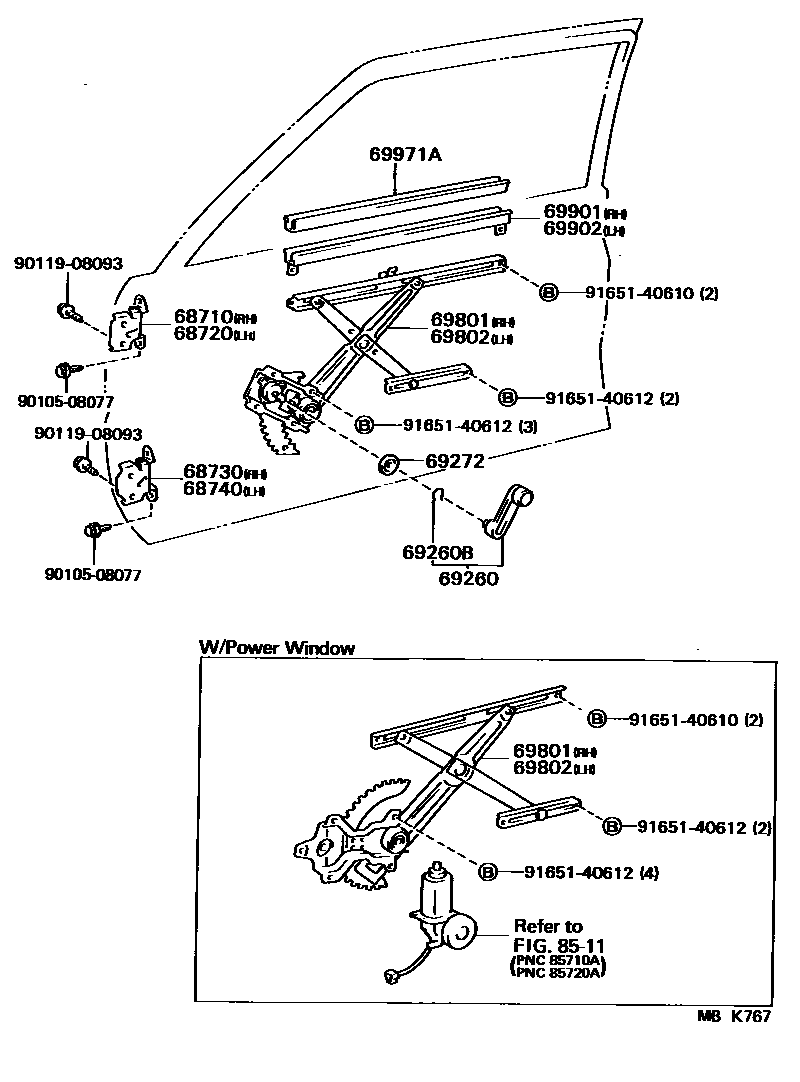

Toyota COROLLA FX — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12080i198609-198808

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12080i198609-198808

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-32010i198609-198808

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-32010i198609-198808

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-01010-J9×2i198609-198808

DARK BLUE,DARK BLUE

main69260-01010-P8×2i198609-198808

CHARCOAL,CHARCOAL

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90080-52001×2i198609-198808

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-16010×2i198609-198808

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12090i198609-198808

W/POWER WINDOW

main69810-12270i198609-198808

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12090i198609-198808

W/POWER WINDOW

main69820-12270i198609-198808

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-01020i198609-198708

main69901-02020i198708-198808

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69902-01020i198609-198708

main69902-02020i198708-198808

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-01011×2i198609-198808

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010508077

main90105-08077

9011908093

main90119-08093

9165140610

main91651-40610

9165140612

main91651-40612

17 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota COROLLA FX

This section contains 17 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota COROLLA FX. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, HANDLE ASSY, FRONT DOOR WINDOW REGULATOR.
