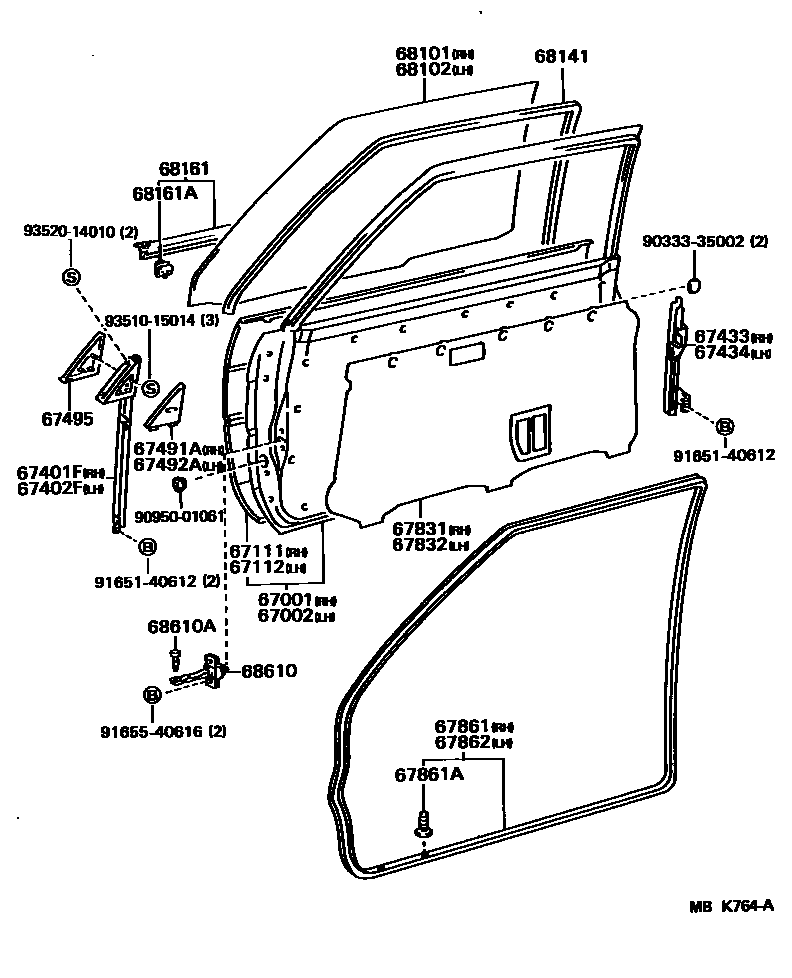

Toyota COROLLA FX — FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-02010i198609-198808

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-02010i198609-198808

67111PANEL, FRONT DOOR, OUTER RH

main67111-12431i198609-198808

67112PANEL, FRONT DOOR, OUTER LH

main67112-12421i198609-198808

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-12251i198609-198808

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-12271i198609-198808

67433FRAME, FRONT DOOR WINDOW, REAR LOWER RH

main67403-02010i198609-198808

67434FRAME, FRONT DOOR WINDOW, REAR LOWER LH

main67404-02010i198609-198808

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-12131i198702-198808

W/MANUAL *RCM

main67491-12141i198609-198808

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-12141i198702-198808

W/MANUAL *RCM

main67492-12151i198702-198808

67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER

main67495-12100i198702-198808

W/DOOR BELT MOULDING

main67495-12110i198702-198808

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-02010i198609-198808

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-02010i198609-198808

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-12580i198609-198701

main67861-12581i198701-198808

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040×40i198609-198808

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-12560i198609-198701

main67862-12561i198701-198808

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-02010i198609-198808

*TT,T=3.5,*TT,T=3.5

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-02010i198609-198808

*TT,T=3.5,*TT,T=3.5

68141RUN, FRONT DOOR GLASS

main68141-12240×2i198609-198808

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-12151×2i198702-198808

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-12122×14i198702-198808

68610CHECK ASSY, FRONT DOOR

main68610-12030×2i198609-198808

68610APIN(FOR FRONT DOOR CHECK)

main68617-90A00×2i198609-198808

9033335002

main90333-35002

9095001061

main90950-01061

9165140612

main91651-40612

9165540616

main91655-40616

9351015014

main93510-15014

9352014010

main93520-14010

29 parts on this diagram · 3 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota COROLLA FX

This section contains 37 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota COROLLA FX. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, PANEL SUB-ASSY, FRONT DOOR, LH, PANEL, FRONT DOOR, OUTER RH, PANEL, FRONT DOOR, OUTER LH, FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH.
