Toyota COROLLA FX — FRONT CLEARANCE LAMP

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-02010i198609-198808

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main90981-11020×2i198609-198808

12V 3.8W,12V 3.8W

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-02010i198609-198808

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-02010i198609-198808

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-02010i198609-198808

81625SOCKET AND WIRE, PARKING AND CLEARANCE LAMP

main81615-02010×2i198609-198808

8113722530PROTECTOR, HEADLAMP, NO.2 RH

main81137-22530

9018904022

main90189-04022

9356054016

main93560-54016

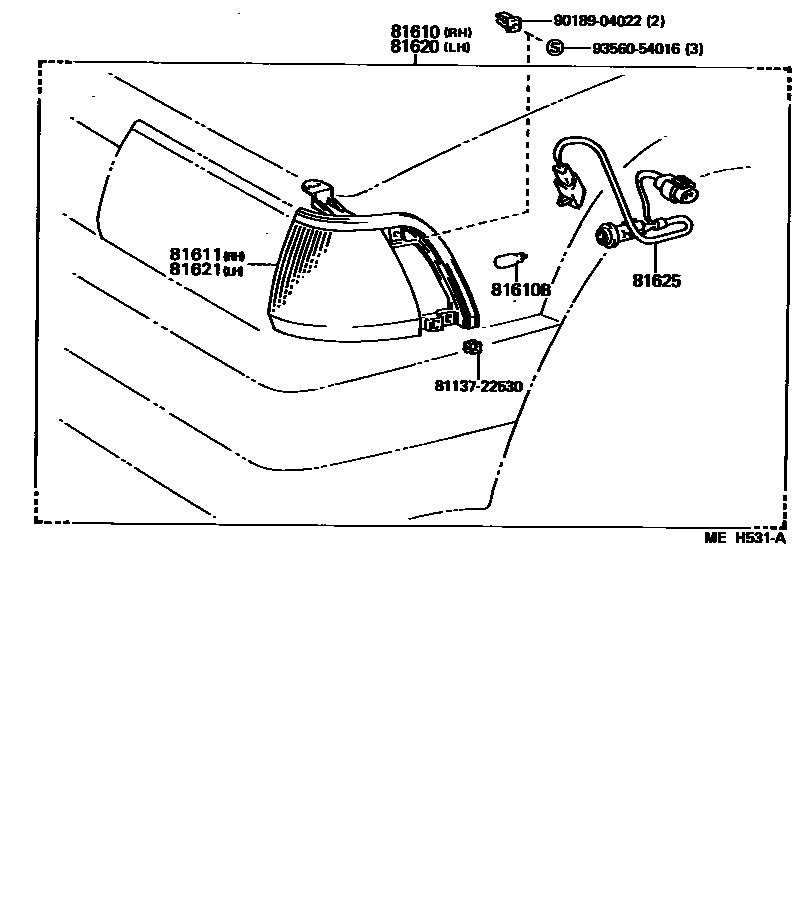

9 parts on this diagram · 1 diagram in section

FRONT CLEARANCE LAMP for Toyota COROLLA FX

This section contains 9 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota COROLLA FX. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, LAMP ASSY, PARKING & CLEARANCE, LH, LENS, PARKING & CLEARANCE LAMP, LH.
