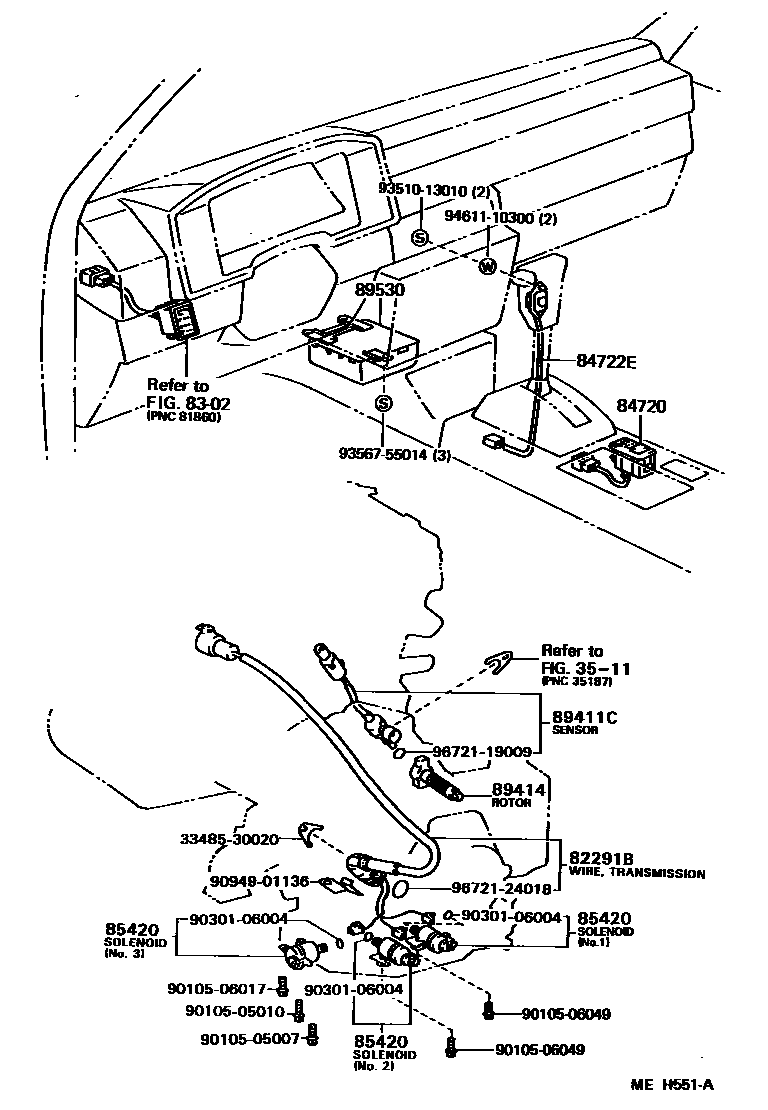

Toyota COROLLA FX — ELECTRONIC CONTROLLED TRANSMISSION
3511REAR OIL PUMP & GOVERNOR (ATM)
82291BWIRE, TO SOLENOID (FOR TRANSMISSION)
8302INDICATOR
84720SWITCH ASSY, PATTERN SELECT
84722ESWITCH, TRANSMISSION CONTROL
DARK BLUE,DARK BLUE
CHARCOAL,CHARCOAL
85420SOLENOID ASSY, TRANSMISSION
NO.1,NO.2
NO.3
89411CSENSOR, SPEED
89414ROTOR, SENSOR
89530COMPUTER ASSY, TRANSMISSION CONTROL
3348530020PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
main33485-30020
9010505007
main90105-05007
9010505010
main90105-05010
9010506017
main90105-06017
9010506049
main90105-06049
9030106004
main90301-06004
9094901136
main90949-01136
9351013010
main93510-13010
9356755014
main93567-55014
9461110300
main94611-10300
9672119009
main96721-19009
9672124018
main96721-24018
21 parts on this diagram · 1 diagram in section
ELECTRONIC CONTROLLED TRANSMISSION for Toyota COROLLA FX
This section contains 21 genuine Toyota parts for the ELECTRONIC CONTROLLED TRANSMISSION system of the Toyota COROLLA FX. Key components include: REAR OIL PUMP & GOVERNOR (ATM), WIRE, TO SOLENOID (FOR TRANSMISSION), INDICATOR, SWITCH ASSY, PATTERN SELECT, SWITCH, TRANSMISSION CONTROL.
