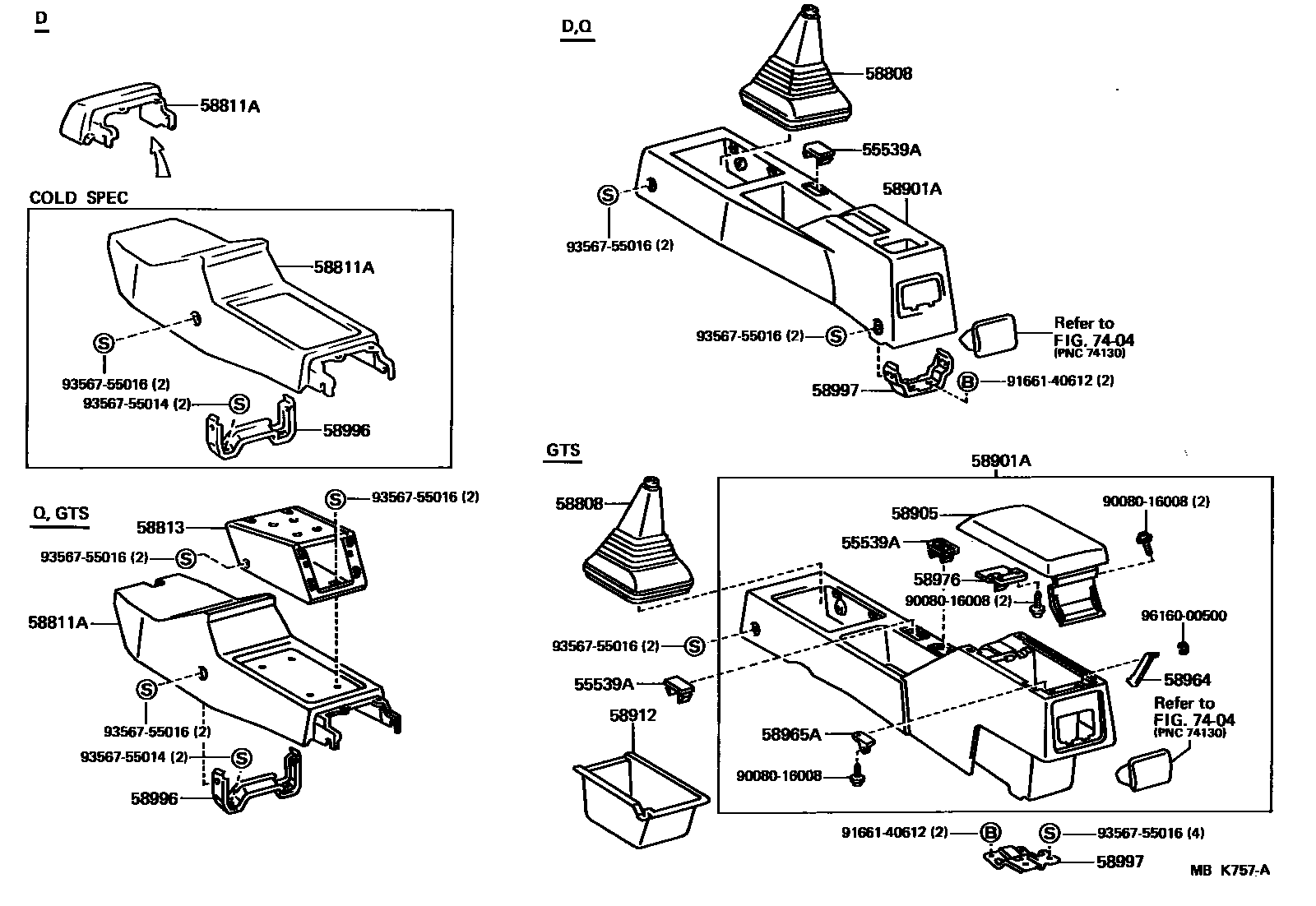

Toyota COROLLA FX — CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
42X24,DARK BLUE,DARK BLUE
42X24,CHARCOAL,CHARCOAL
42X32,DARK BLUE,DARK BLUE
42X32,CHARCOAL,CHARCOAL
58808COVER SUB-ASSY, SHIFTING HOLE
CHARCOAL,CHARCOAL
DARK BLUE,DARK BLUE
58811ABOX, CONSOLE, FRONT
COLD SPEC,DARK BLUE,DARK BLUE
COLD SPEC,CHARCOAL,CHARCOAL
DARK BLUE,DARK BLUE
CHARCOAL,CHARCOAL
DARK BLUE,DARK BLUE
CHARCOAL,CHARCOAL
58813BOX, CONSOLE, UPPER
DARK BLUE,DARK BLUE
CHARCOAL,CHARCOAL
58901ABOX SUB-ASSY, CONSOLE, REAR
DARK BLUE,DARK BLUE
CHARCOAL,CHARCOAL
DARK BLUE,DARK BLUE
CHARCOAL,CHARCOAL
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
DARK BLUE,DARK BLUE
CHARCOAL,CHARCOAL
58912BOX, REAR CONSOLE, NO.2
DARK BLUE,DARK BLUE
CHARCOAL,CHARCOAL
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK
BLACK,BLACK
58996BRACKET, CONSOLE BOX MOUNTING, NO.1
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
7404
9008016008
main90080-16008
9166140612
main91661-40612
9356755014
main93567-55014
9356755016
main93567-55016
9616000500
main96160-00500
18 parts on this diagram · 1 diagram in section
