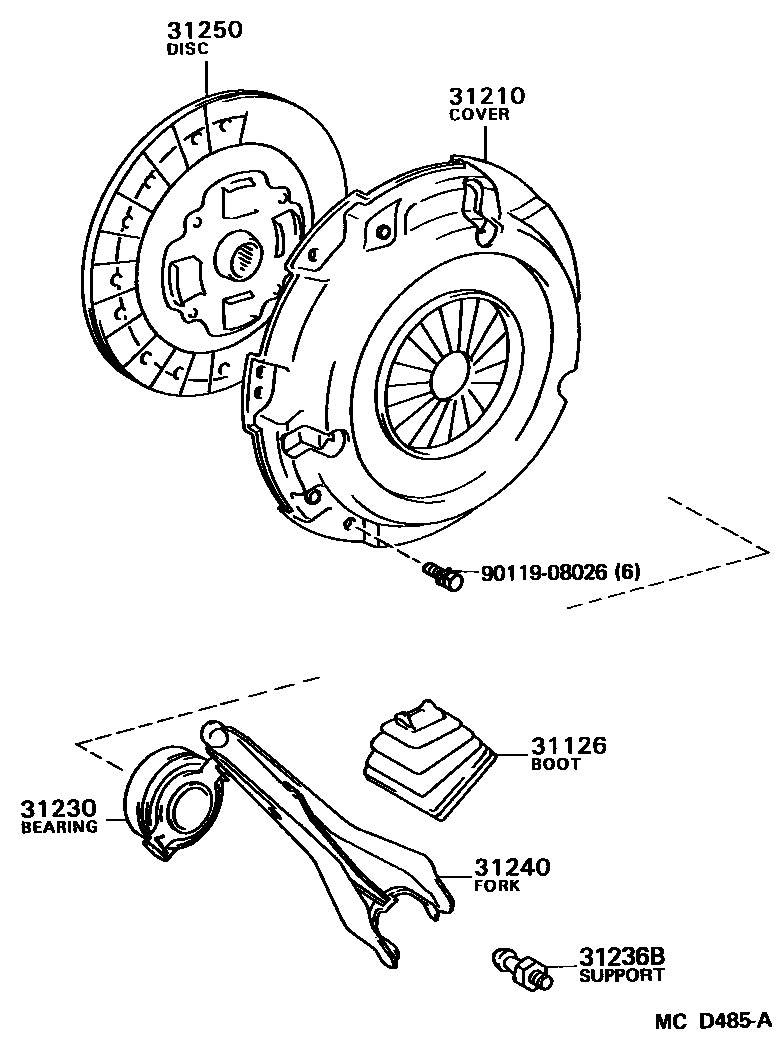

Toyota COROLLA FX — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12050iAE82..MTM198609-198705

main31126-12051iAE82..MTM198705-198808

31210COVER ASSY, CLUTCH

main31210-12080iAE82..MTM..(GTS,Q)198609-198705

main31210-12120iAE82..MTM..(GTS,Q)198705-198808

sub31210-12121

main31210-16100iAE82..MTM..D198705-198808

sub31210-16101

main31210-20200iAE82..MTM..D198702-198705

31230BEARING ASSY, CLUTCH RELEASE

main31230-12100iAE82..MTM198609-198708

main31230-12140iAE82..MTM198801-198808

sub31230-16061

main31230-16060iAE82..MTM198708-198801

sub31230-16061

31236BSUPPORT, RELEASE FORK

main31236-12011iAE82..MTM198609-198808

31240FORK ASSY, CLUTCH RELEASE

main31204-12050iAE82..MTM198609-198808

31250DISC ASSY, CLUTCH

main31250-12144iAE82..MTM..D198702-198710

main31250-12200iAE82..MTM..D198710-198808

sub31250-12201

main31250-17010iAE82..MTM..(GTS,Q)198609-198808

sub31250-12290

9011908026

main90119-08026

7 parts on this diagram · 1 diagram in section
