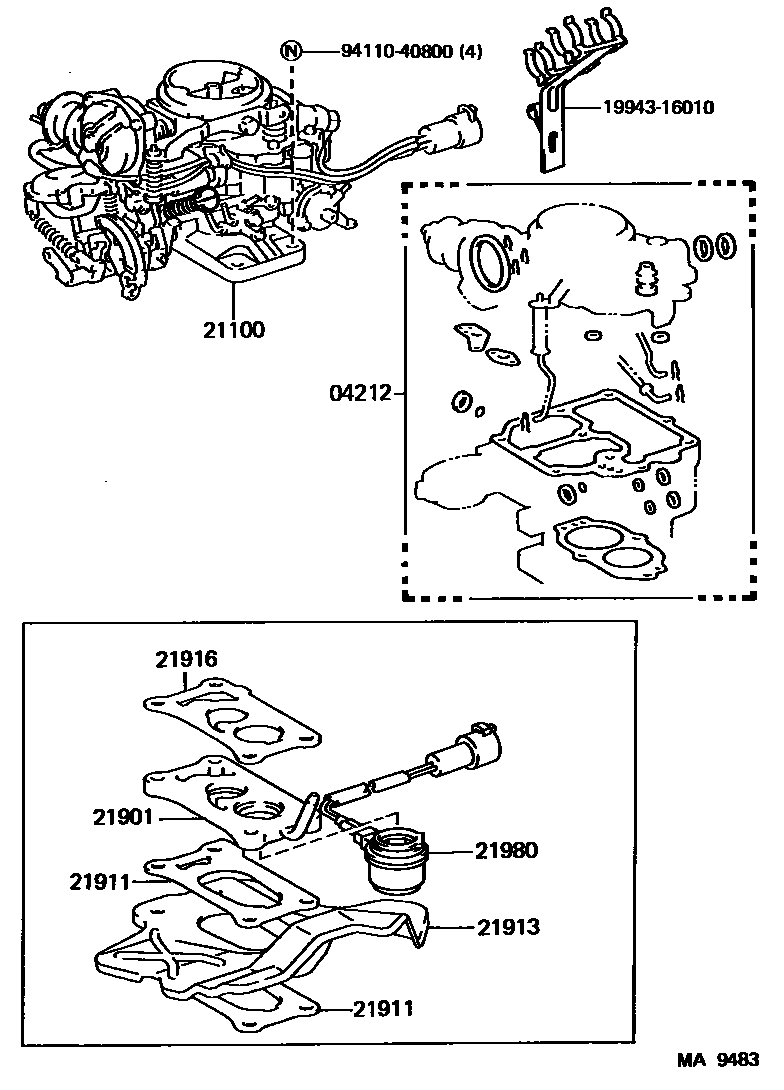

Toyota COROLLA FX — CARBURETOR ASSEMBLY
04212GASKET KIT, CARBURETOR
21100CARBURETOR ASSY
21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1
21911GASKET, CARBURETOR
21913INSULATOR, CARBURETOR HEAT, NO.2
21916GASKET, CARBURETOR, NO.2
21980HEATER ASSY, COLD MIXTURE
1994316010PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
main19943-16010
9411040800
main94110-40800
9 parts on this diagram · 1 diagram in section
CARBURETOR ASSEMBLY for Toyota COROLLA FX
This section contains 9 genuine Toyota parts for the CARBURETOR ASSEMBLY system of the Toyota COROLLA FX. Key components include: GASKET KIT, CARBURETOR, CARBURETOR ASSY, INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1, GASKET, CARBURETOR, INSULATOR, CARBURETOR HEAT, NO.2.
