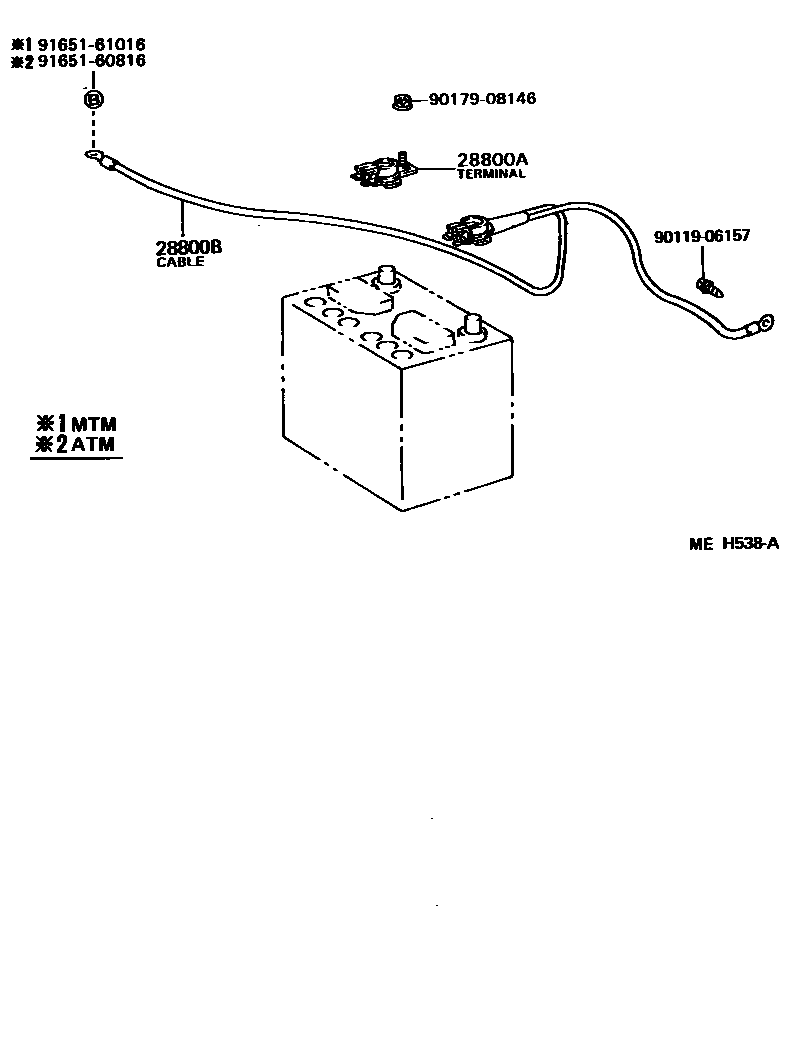

Toyota COROLLA FX — BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05030i198609-198808

28800BCABLE, BATTERY TO GROUND

main82123-01010i198609-198808

9011906157

main90119-06157

9017908146

main90179-08146

9165160816

main91651-60816

9165161016

main91651-61016

6 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota COROLLA FX

This section contains 6 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota COROLLA FX. Key components include: TERMINAL, BATTERY POSITIVE, CABLE, BATTERY TO GROUND.
