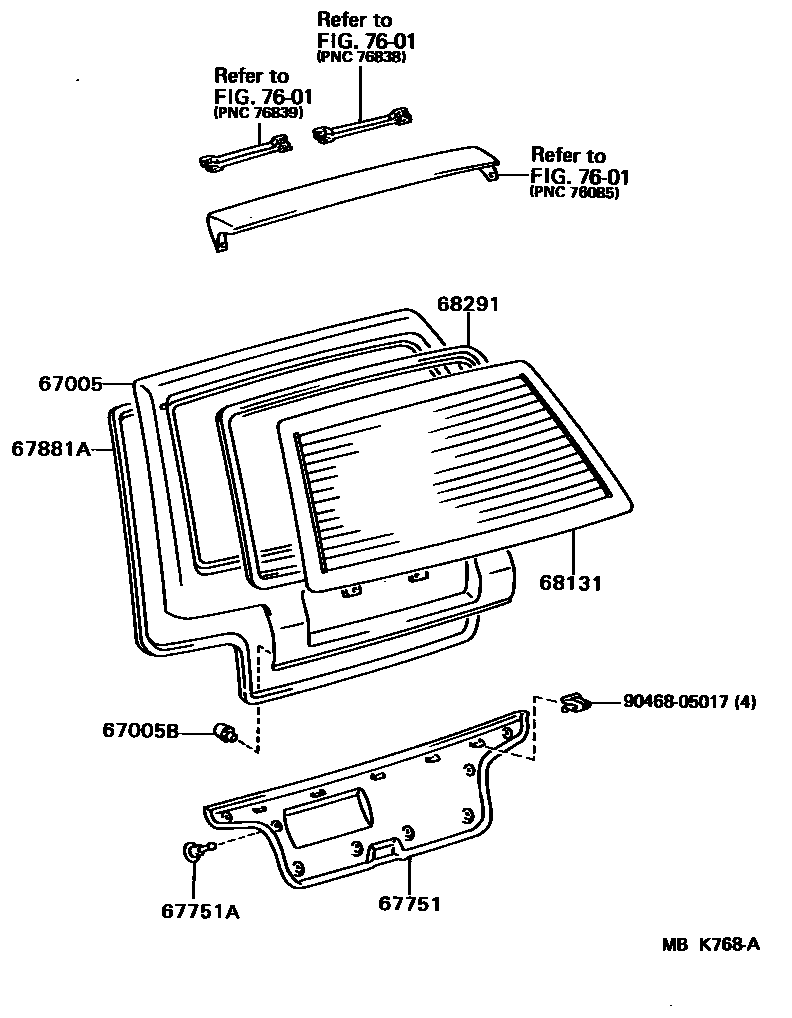

Toyota COROLLA FX — BACK DOOR PANEL & GLASS

67005PANEL SUB-ASSY, BACK DOOR

main67005-02010i198609-198808

main67005-02020i198609-198808

W/RR WIPER

main67005-02030i198609-198708

W/RR WIPER,SPOILER

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09037×2i198609-198808

OD=22

main90541-09041×2i198609-198808

OD=18

67751BOARD, BACK DOOR TRIM

main67751-02010-J9i198609-198808

DARK BLUE,DARK BLUE

main67751-02010-P8i198609-198808

CHARCOAL,CHARCOAL

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-07041-J9×8i198609-198808

DARK BLUE,DARK BLUE

main90467-07041-P8×8i198609-198808

CHARCOAL,CHARCOAL

67881AWEATHERSTRIP, BACK DOOR

main67881-12110i198609-198808

68131GLASS, BACK DOOR

main68105-02010i198609-198808

*EHTT,T=3.5,*EHTT,T=3.5

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-12110i198609-198808

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9046805017

main90468-05017

9 parts on this diagram · 1 diagram in section

BACK DOOR PANEL & GLASS for Toyota COROLLA FX

This section contains 9 genuine Toyota parts for the BACK DOOR PANEL & GLASS system of the Toyota COROLLA FX. Key components include: PANEL SUB-ASSY, BACK DOOR, CUSHION(FOR BACK DOOR PANEL), BOARD, BACK DOOR TRIM, CLIP(FOR BACK DOOR TRIM BOARD), WEATHERSTRIP, BACK DOOR.
