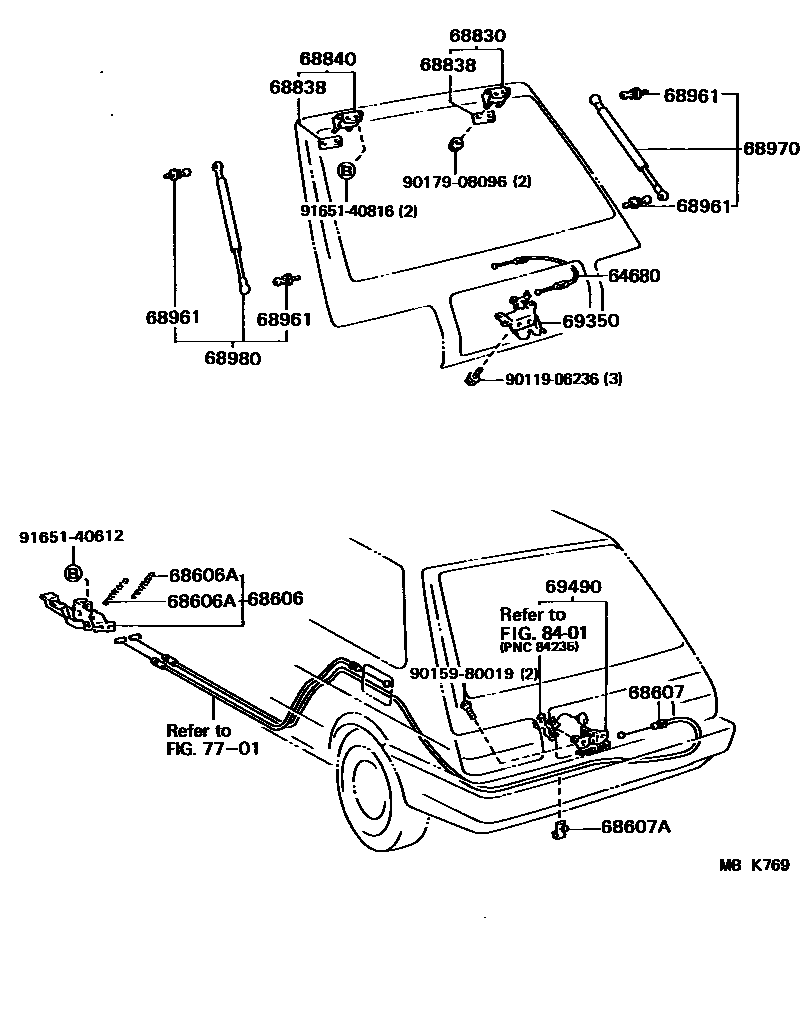

Toyota COROLLA FX — BACK DOOR LOCK & HANDLE

64680CABLE ASSY, BACK DOOR LOCK CONTROL

main64680-02010i198609-198808

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-12050i198609-198808

68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)

main90506-09034×2i198609-198808

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-02010i198609-198808

68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)

main69749-12010i198609-198808

68830HINGE ASSY, BACK DOOR, RH

main68801-12020i198609-198808

68838PAD, BACK DOOR HINGE, NO.1

main68838-14021×2i198609-198808

68840HINGE ASSY, BACK DOOR, LH

main68801-12020i198609-198808

68961BOLT, BACK DOOR STAY

main68961-16010×4i198609-198808

68970STAY ASSY, BACK DOOR, RH

main68950-19545i198609-198808

68980STAY ASSY, BACK DOOR

main68950-19545i198609-198808

69350LOCK ASSY, BACK DOOR

main69350-02010i198609-198808

69490STRIKER ASSY, BACK DOOR LOCK

main69430-02010i198609-198808

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906236

main90119-06236

9015980019

main90159-80019

9017908096

main90179-08096

9165140612

main91651-40612

9165140816

main91651-40816

20 parts on this diagram · 1 diagram in section

BACK DOOR LOCK & HANDLE for Toyota COROLLA FX

This section contains 20 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota COROLLA FX. Key components include: CABLE ASSY, BACK DOOR LOCK CONTROL, LEVER SUB-ASSY, BACK DOOR LOCK OPEN, SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER), CABLE SUB-ASSY, BACK DOOR LOCK CONTROL, CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE).
