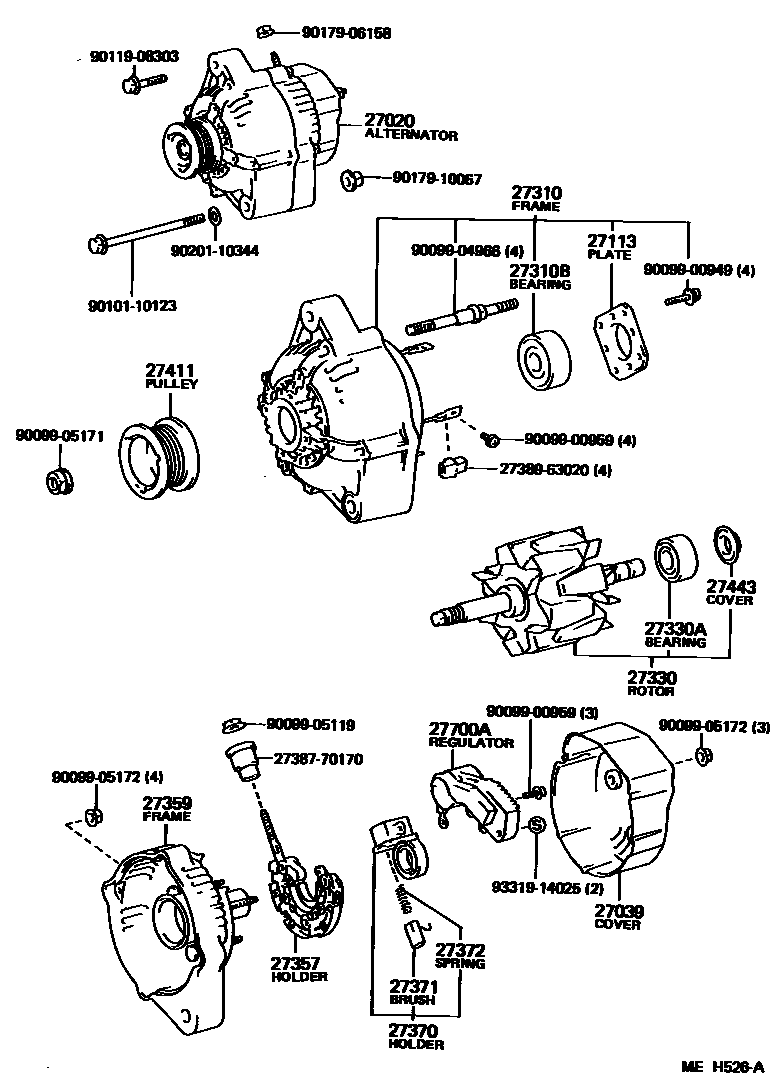

Toyota COROLLA FX — ALTERNATOR

27020ALTERNATOR ASSY

main27060-01011i198702-198808

12V 60A

main27060-16011i198609-198808

12V 60A

27039COVER, ALTERNATOR REAR END

main27039-72010i198609-198808

12V 60A

main27039-72110i198702-198808

12V 60A

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-72100i198609-198808

12V 60A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-16011i198609-198808

12V 60A

main27310-63041i198702-198808

12V 60A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10159i198609-198808

12V 60A

27330ROTOR ASSY, ALTERNATOR

main27330-01012i198708-198808

12V 60A

main27330-10020i198702-198708

12V 60A

main27330-72101i198609-198808

12V 60A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i198609-198808

12V 60A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-63020i198609-198808

12V 60A

main27357-63040i198702-198808

12V 60A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16011i198609-198808

12V 60A

main27359-63041i198702-198808

12V 60A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-16011i198609-198808

12V 60A

main27370-63021i198702-198808

12V 60A

27371BRUSH, ALTERNATOR

main27371-63020×2i198609-198808

12V 60A

27372SPRING, ALTERNATOR BRUSH

main27372-72100×2i198609-198808

12V 60A

27411PULLEY, ALTERNATOR

main27411-01013i198708-198808

12V 60A

main27411-16011i198609-198808

12V 60A

main27411-63081i198702-198708

12V 60A

27443COVER, ALTERNATOR BEARING

main27443-63020i198609-198808

12V 60A

27700AREGULATOR ASSY, GENERATOR

main27700-63021i198609-198808

12V 60A

2738770170INSULATOR, TERMINAL

main27387-70170

2738963020INSULATOR, TERMINAL

main27389-63020

9009900949

main90099-00949

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010110123

main90101-10123

9011908303

main90119-08303

9017906158

main90179-06158

9017910067

main90179-10067

9020110344

main90201-10344

9331914025

main93319-14025

29 parts on this diagram · 2 diagrams in section

ALTERNATOR for Toyota COROLLA FX

This section contains 31 genuine Toyota parts for the ALTERNATOR system of the Toyota COROLLA FX. Key components include: ALTERNATOR ASSY, COVER, ALTERNATOR REAR END, PLATE, BEARING RETAINER, ALTERNATOR, FRAME ASSY, DRIVE END, ALTERNATOR, BEARING(FOR ALTERNATOR DRIVE END FRAME).
