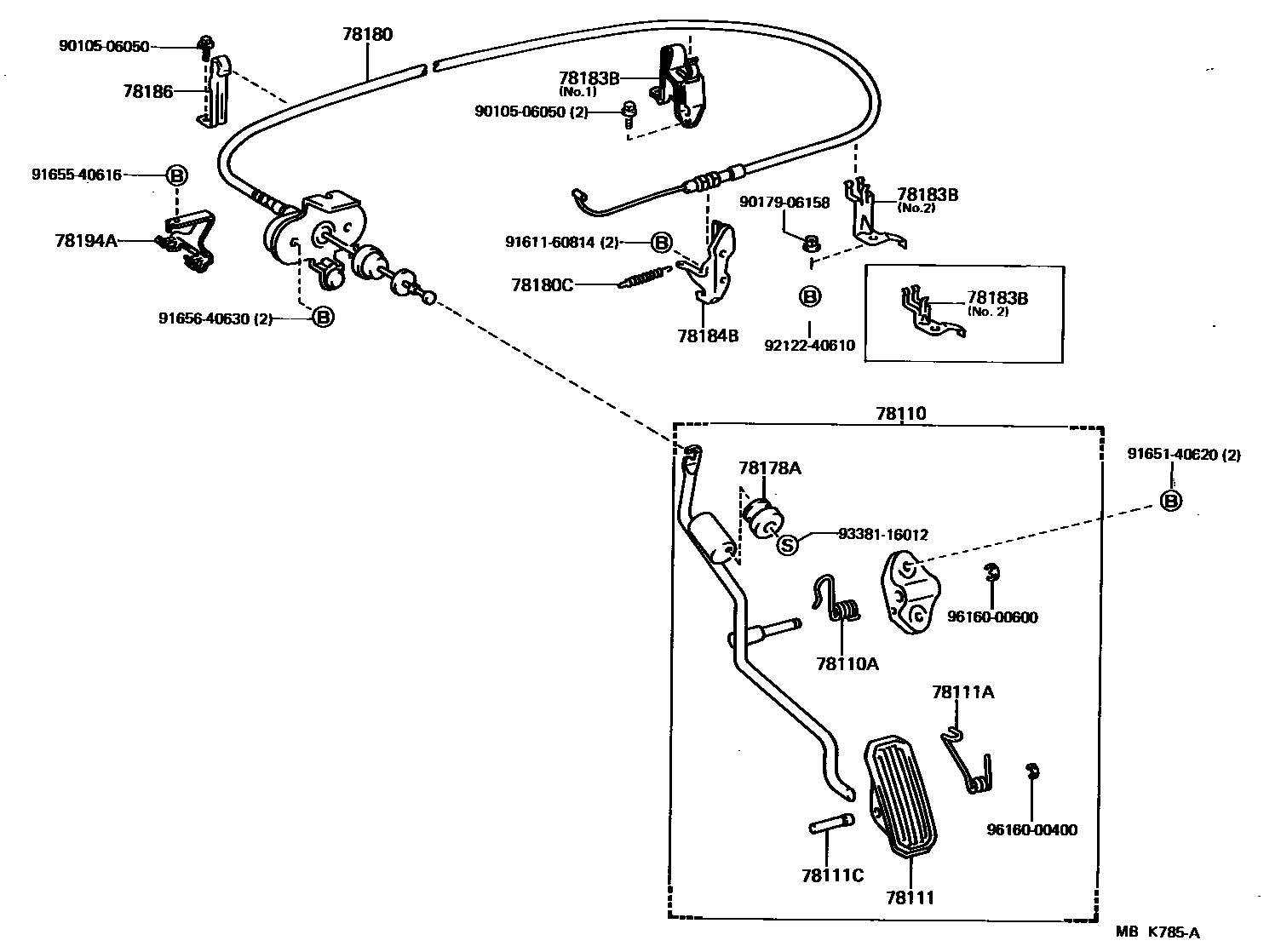

Toyota COROLLA FX — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78110ROD ASSY, ACCELERATOR PEDAL

main78120-12050iAE82..MTM..(GTS,Q)198609-198808

W/CRUISE CONTROL

main78120-12060iAE82..MTM198609-198808

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18025iAE82..MTM..(GTS,Q)198609-198808

W/CRUISE CONTROL

main90508-26036iAE82..MTM198609-198808

78111PEDAL, ACCELERATOR

main78111-32010iAE82198609-198808

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-20056iAE82198609-198808

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAE82198609-198808

78178ADAMPER, ACCELRATOR PEDAL ROD DYNAMIC

main78178-12030iAE82198609-198808

78180WIRE ASSY, ACCELERATOR

main78180-02010iAE82..GTS,Q198609-198808

main78180-02020iAE82..GTS,Q198609-198808

W/CRUISE CONTROL

main78180-12651iAE82..D198702-198808

78180CSPRING, TENSION (FOR ACCELERATOR WIRE)

main90507-10016iAE82..GTS,Q198609-198808

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-02011iAE82..GTS,Q198609-198709

NO.1,W/CRUISE CONTROL

main78183-02040iAE82..GTS,Q198609-198709

NO.2,W/CRUISE CONTROL

main78183-02060iAE82..GTS,Q198709-198808

NO.2

main78183-12080iAE82..GTS,Q198609-198709

NO.2

main78183-12090iAE82..GTS,Q198609-198808

NO.1

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12160iAE82..D198702-198808

main78184-12190iAE82..GTS,Q198609-198808

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-02020iAE82..GTS,Q198609-198808

78194ASUPPORT, ACCELERATOR CONTROL CABLE, NO.4

main78194-01020iAE82..D198702-198808

main78194-02010iAE82..GTS,Q198609-198808

9010506050

main90105-06050

9017906158

main90179-06158

9161160814

main91611-60814

9165140620

main91651-40620

9165540616

main91655-40616

9165640630

main91656-40630

9212240610

main92122-40610

9338116012

main93381-16012

9616000400

main96160-00400

9616000600

main96160-00600

22 parts on this diagram · 4 diagrams in section
