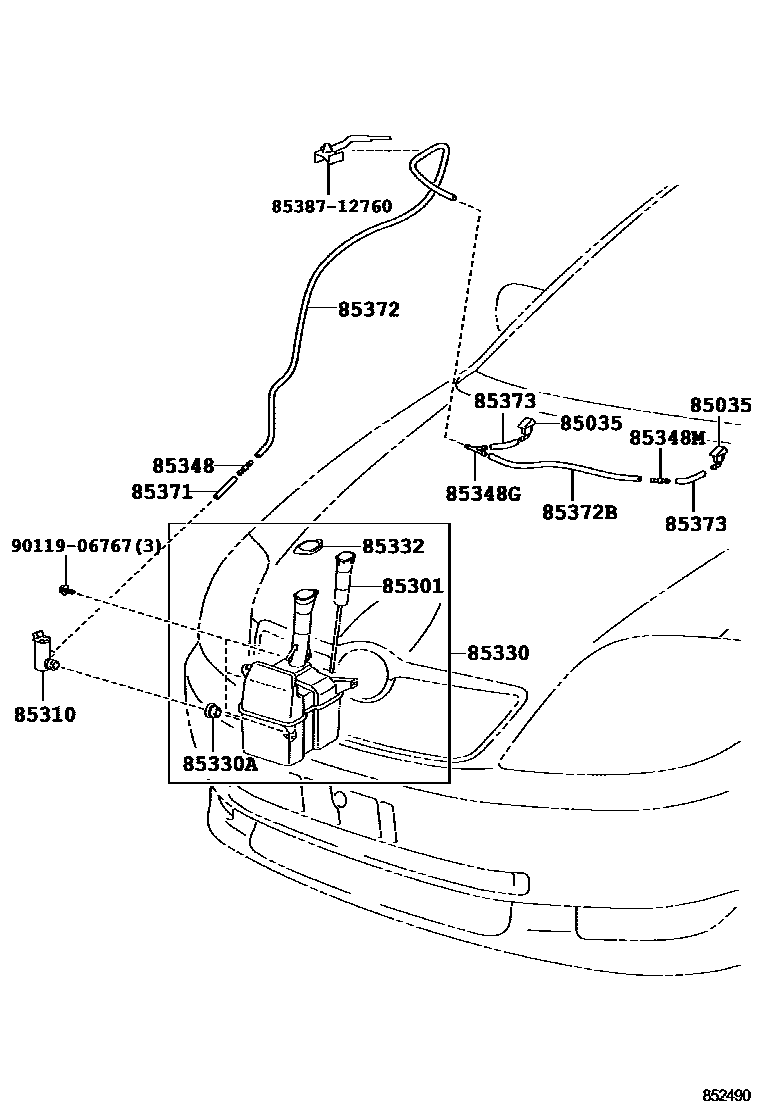

Toyota COROLLA/FIELDER — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12210×2i200209-200404

main85381-44010×2i200404-200609

85301INLET SUB-ASSY, WASHER

main85318-12450i200008-200209

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10280i200404-200609

main85330-10290i200008-200209

85330JAR ASSY, WINDSHIELD WASHER

main85315-12450i200404-200609

main85315-13040i200209-200404

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i200008-200209

85332CAP, WINDSHIELD WASHER JAR

main85316-26030i200404-200609

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i200008-200209

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-14390i200008-200209

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122i200008-200209

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i200008-200209

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001i200008-200209

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001i200008-200209

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i200008-200209

8538712760CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-12760

9011906767

main90119-06767

15 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota COROLLA/FIELDER

This section contains 16 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COROLLA/FIELDER. Key components include: NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
