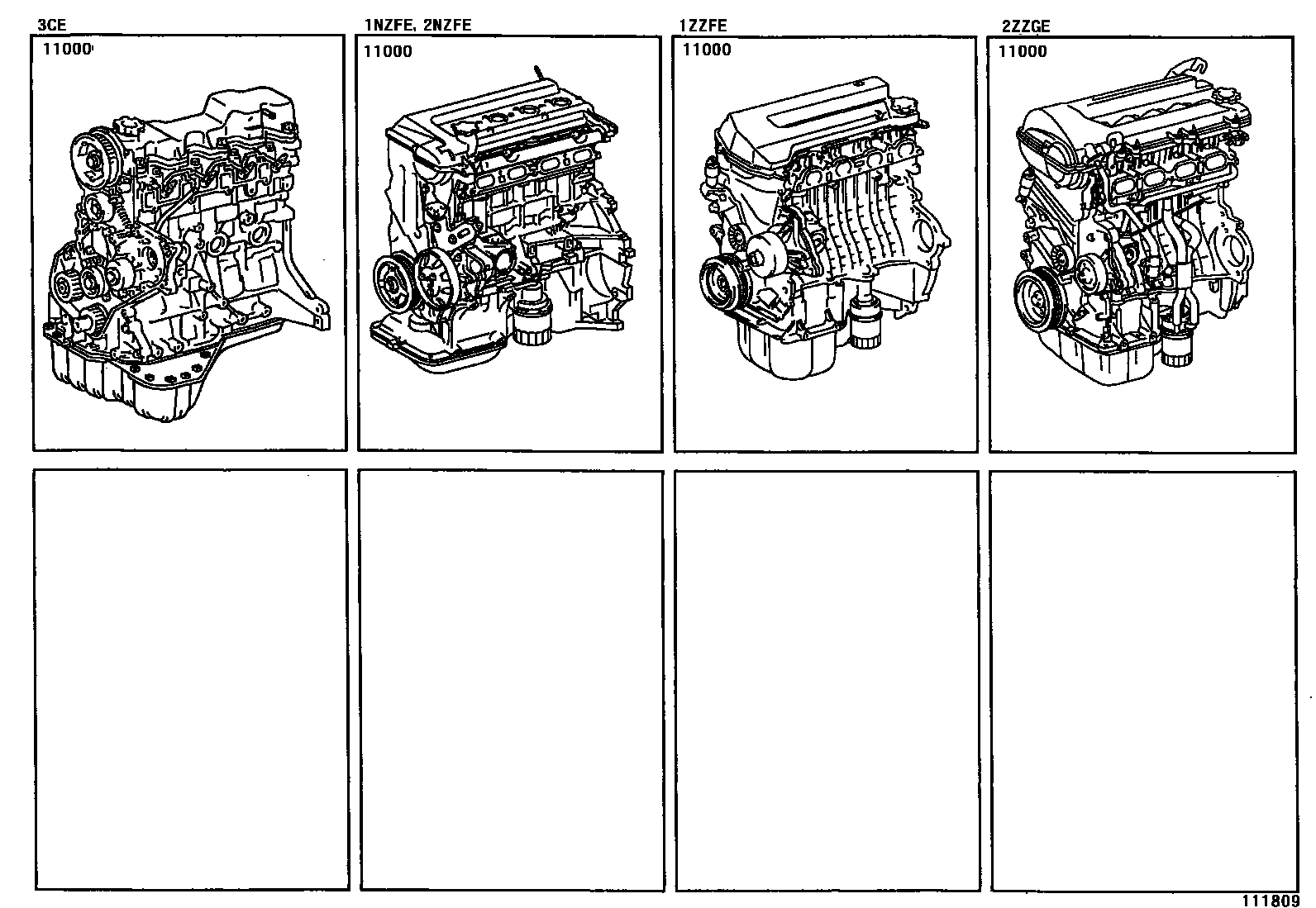

Toyota COROLLA/FIELDER — PARTIAL ENGINE ASSEMBLY

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-21100i200008-200209
sub19000-21101
sub12204-21011
main19000-21121i200008-200209
sub12204-21011
main19000-21122i200311-200404
main19000-21131i200008-200209
sub19000-21132
sub12204-21011
main19000-21200i200209-200404
sub19000-21631
sub12204-21011
main19000-21220i200209-200311
sub12204-21011
main19000-21221i200311-200404
main19000-21A20i200404-200609
sub19000-21C41
sub90919-01247
main19000-22190i200008-200202
main19000-22191i200202-200209
sub19000-22192
sub16258-28030
sub16268-22101
main19000-22200i200008-200202
main19000-22201i200202-200209
main19000-22310i200209-200404
sub19000-22311
sub16258-28030
sub16268-22101
main19000-22330i200404-200609
sub19000-22331
sub16258-28030
sub16268-22101
sub16268-22161
main19000-22340i200404-200609
sub19000-22342
sub16258-28030
sub16268-22101
sub16268-22161
main19000-22341i200301-200404
main19000-6A270i200209-200404
main19000-88704i200008-200209
sub17141-88601
sub17167-22110
sub17173-88601
main19000-88716i200404-200609

1 parts on this diagram · 1 diagram in section
