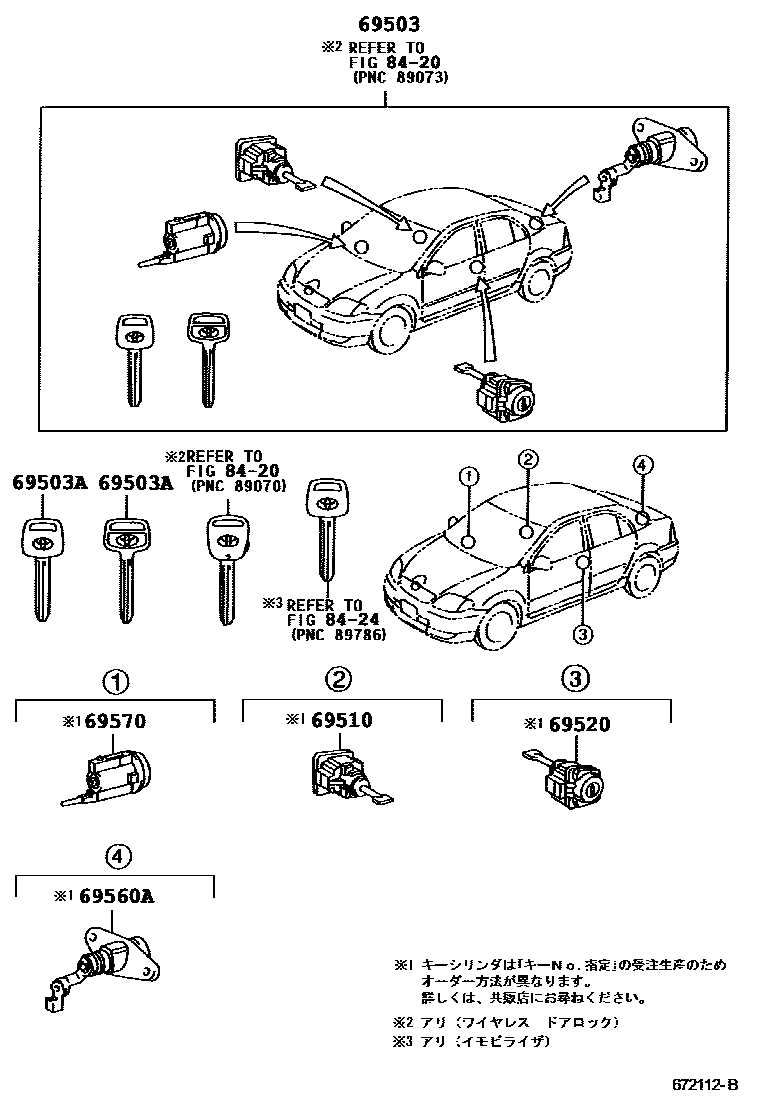

Toyota COROLLA/FIELDER — LOCK CYLINDER SET
69503CYLINDER SET, LOCK
69503AKEY, BLANK
69510CYLINDER ASSY, FRONT DOOR LOCK, RH
69520CYLINDER ASSY, FRONT DOOR LOCK, LH
69560CYLINDER ASSY, BACK DOOR LOCK
69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK
69570CYLINDER ASSY, IGNITION SWITCH LOCK
8420WIRELESS DOOR LOCK
8424ANTI-THEFT DEVICE
9 parts on this diagram · 2 diagrams in section
LOCK CYLINDER SET for Toyota COROLLA/FIELDER
This section contains 9 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota COROLLA/FIELDER. Key components include: CYLINDER SET, LOCK, KEY, BLANK, CYLINDER ASSY, FRONT DOOR LOCK, RH, CYLINDER ASSY, FRONT DOOR LOCK, LH, CYLINDER ASSY, BACK DOOR LOCK.
