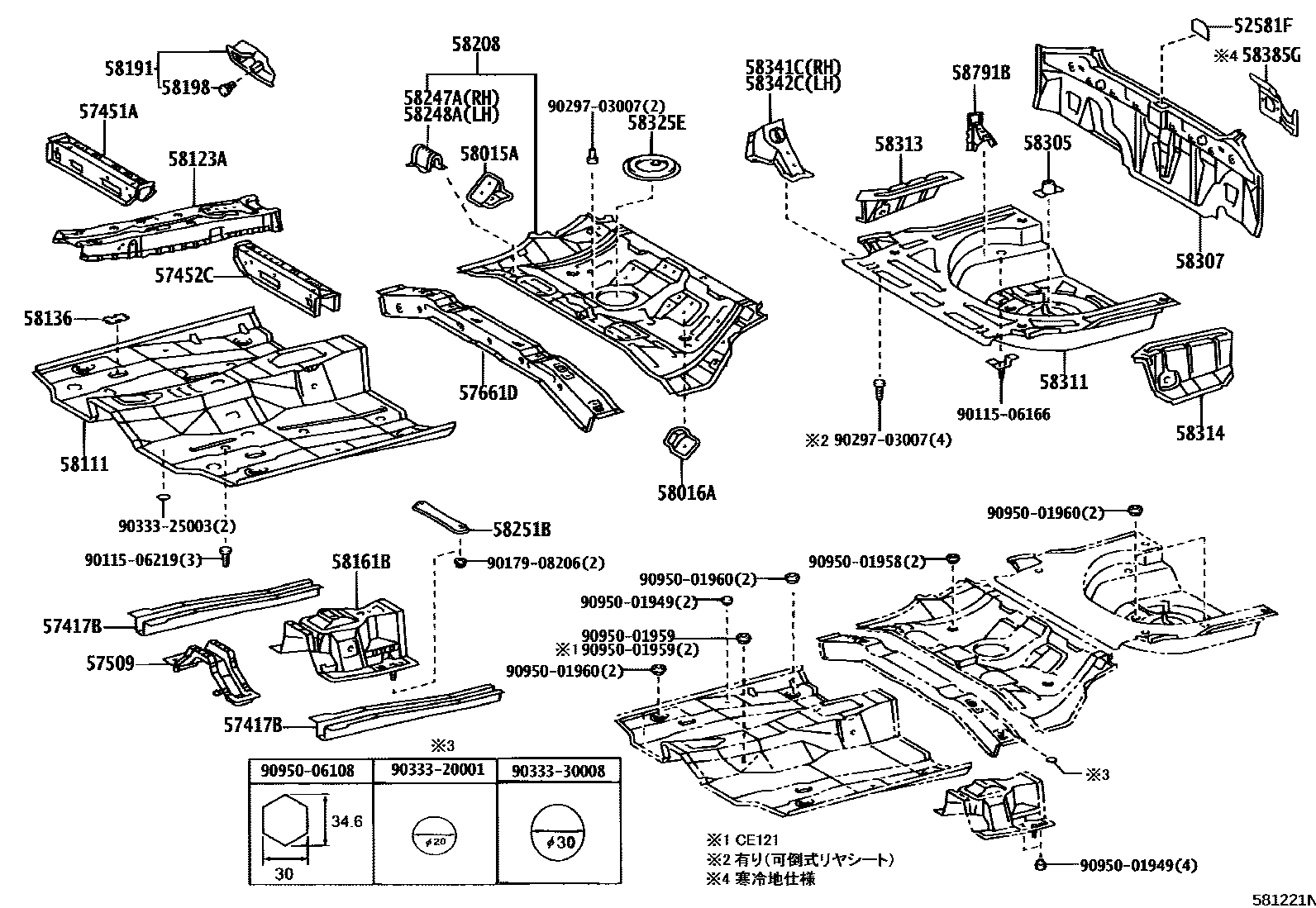

Toyota COROLLA/FIELDER — FLOOR PAN & LOWER BACK PANEL
52581FPROTECTOR, REAR BUMPER
57417BREINFORCEMENT, FRONT FLOOR UNDER
57451AMEMBER, FRONT FLOOR CROSS, RH
57452CMEMBER, FRONT FLOOR CROSS, LH
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57661DMEMBER, REAR FLOOR CROSS, FRONT
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58111PAN, FRONT FLOOR
58123ASUPPORT, SHIFT & SELECT LEVER
58136COVER, FRONT FLOOR HOLE
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
58208PAN, CENTER FLOOR
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58251BBRACE, FLOOR PANEL, FRONT
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58385GGUSSET, LOWER BACK, UPPER LH
58791BCARRIER, JACK
9011506166
main90115-06166
9011506219
main90115-06219
9017908206
main90179-08206
9029703007
main90297-03007
9033320001
main90333-20001
9033325003
main90333-25003
9033330008
main90333-30008
9095001949
main90950-01949
9095001958
main90950-01958
9095001959
main90950-01959
9095001960
main90950-01960
9095006108
main90950-06108
40 parts on this diagram · 4 diagrams in section
FLOOR PAN & LOWER BACK PANEL for Toyota COROLLA/FIELDER
This section contains 53 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota COROLLA/FIELDER. Key components include: PROTECTOR, REAR BUMPER, REINFORCEMENT, FRONT FLOOR UNDER, MEMBER, FRONT FLOOR CROSS, RH, MEMBER, FRONT FLOOR CROSS, LH, PLATE, FRONT FLOOR CROSSMEMBER.
