Toyota COROLLA/FIELDER — CONSOLE BOX & BRACKET

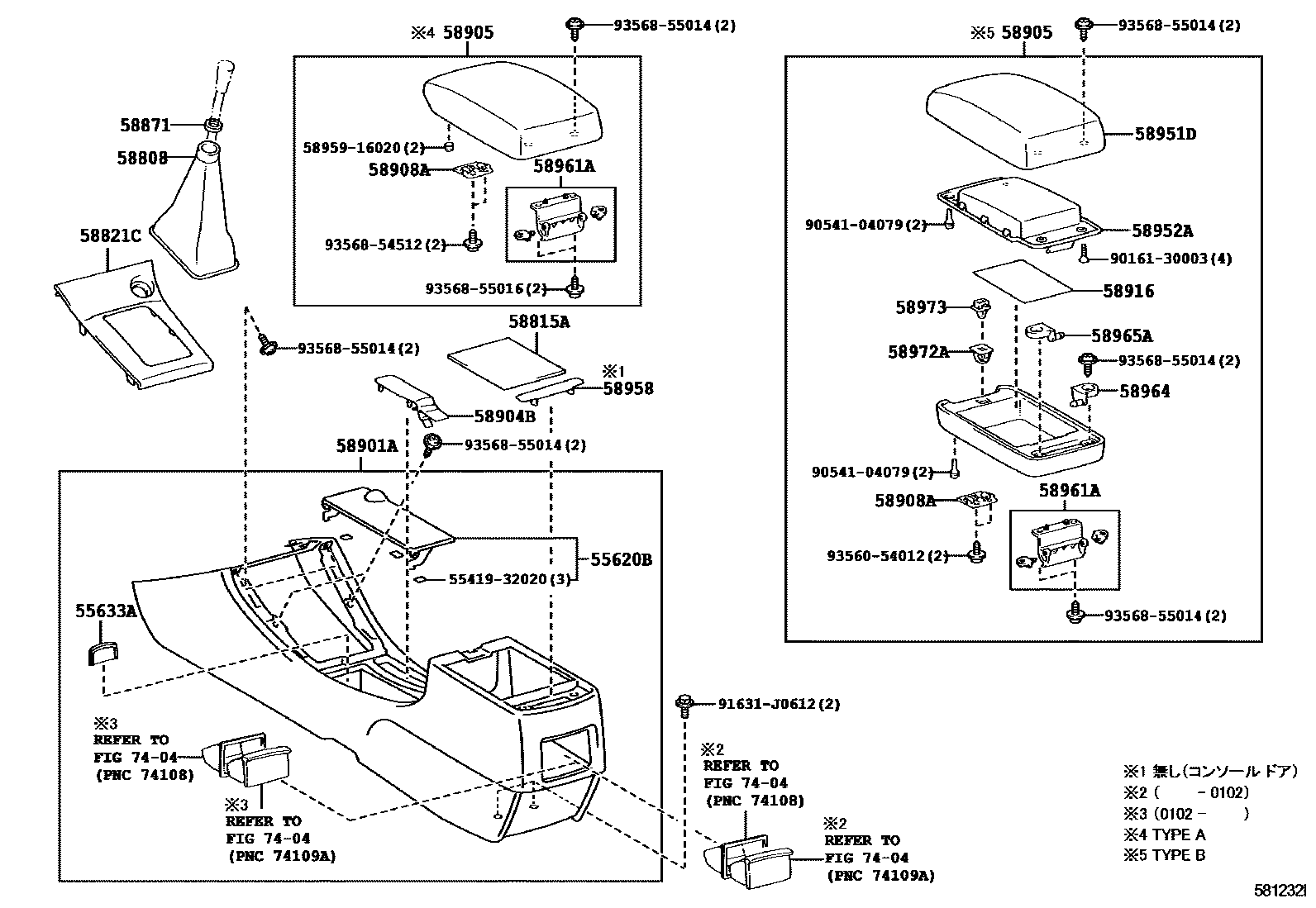

Parts diagram

55620BHOLDER, INSTRUMENT PANEL CUP

main55620-12090-A0i200008-200209

IVORY,TRIM0#

main55620-12090-B0i200008-200209

STONE,TRIM1#

main55620-12090-B1i200008-200209

DK.GRAY,TRIM1#

main55620-12090-B2i200404-200609

MD.GRAY,TRIM1#

55633ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1

main55633-12090-A0×3i200008-200209

IVORY,TRIM0#

main55633-12090-B0×3i200008-200209

STONE,TRIM1#

main55633-12090-B1×3i200008-200209

DK.GRAY,TRIM1#

main55633-12090-B2×3i200209-200404

MD.GRAY,TRIM1#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12180-B0i200209-200404

DK.GRAY,TRIM1#

main58808-12180-E0i200008-200209

SANDAL WOOD,TRIM0#

main58808-12190-B0i200008-200207

DK.GRAY,TRIM1#

main58808-12250-B0i200207-200209

DK.GRAY,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-12060i200209-200404

58821CPANEL, CONSOLE, UPPER

main58821-12100-B0i200008-200209

DARK GRAY,TRIM0#,1#; DARK GRAY,TRIM1#

main58821-12100-B3i200404-200609

main58821-12100-C0i200209-200404

METALLIC BLACK,TRIM0#; METALLIC BLACK,TRIM0#,1#

main58821-12100-E0i200008-200209

SILVER,TRIM1#

main58821-12110-A0i200209-200404

main58821-12110-B0i200209-200404

main58821-12110-B2i200404-200609

main58821-12110-B3i200512-200609

main58821-12110-E2i200404-200609

main58821-12110-E4i200512-200609

58871CUSHION, CONSOLE BOX

main58871-20060i200008-200207

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-12420-A0i200008-200102

main58901-12420-B0i200008-200102

main58901-12420-B1i200008-200102

main58901-12421-A0i200102-200209

main58901-12421-B0i200102-200209

main58901-12421-B1i200102-200209

main58901-12440-A0i200008-200102

IVORY,TRIM0#

main58901-12440-B0i200008-200102

STONE,TRIM1#

main58901-12440-B1i200008-200102

DK.GRAY,TRIM1#

main58901-12441-A0i200102-200209

IVORY,TRIM0#

main58901-12441-B0i200102-200209

STONE,TRIM1#

main58901-12441-B1i200102-200209

DK.GRAY,TRIM1#

main58901-12490-A0i200209-200404

IVORY,TRIM0#

main58901-12490-B0i200404-200609

DK.GRAY,TRIM1#

main58901-12490-B1i200209-200404

MD.GRAY,TRIM1#

main58901-12500-A0i200404-200609

main58901-12500-B0i200404-200609

main58901-12500-B1i200404-200609

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-12050-A0i200008-200209

IVORY,TRIM0#

main58904-12050-B0i200008-200209

STONE,TRIM1#

main58904-12050-B1i200404-200609

DK.GRAY,TRIM1#

main58904-12050-B2i200209-200404

MD.GRAY,TRIM1#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12370-A1i200008-200209

main58905-12370-B1i200008-200209

main58905-12380-A1i200008-200209

main58905-12380-B1i200008-200209

main58905-12390-B2i200008-200209

main58905-12400-B0i200008-200209

main58905-12410-A1i200209-200404

main58905-12410-B1i200008-200209

main58905-12410-B4i200404-200609

main58905-12410-B5i200404-200609

main58905-12430-A1i200008-200209

main58905-12470-A0i200209-200404

main58905-12470-B0i200209-200404

main58905-12470-B1i200209-200404

main58905-12480-A0i200209-200404

main58905-12480-B0i200209-200404

main58905-12500-A0i200404-200609

main58905-12500-B0i200404-200609

main58905-12500-B1i200404-200609

main58905-12500-B3i200404-200609

main58905-12510-A0i200404-200609

main58905-12510-B0i200404-200609

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030i200209-200404

58916MAT, BOX BOTTOM

main58916-12080i200008-200209

58951DDOOR, CONSOLE COMPARTMENT, OUTER

main58951-12220-A1i200008-200209

main58951-12220-B1i200008-200209

STONE,TRIM1#

main58951-12230-A1i200008-200209

IVORY,TRIM0#

main58951-12230-B1i200008-200209

STONE,TRIM1#

main58951-12240-B2i200404-200609

DARK GRAY,TRIM1#

main58951-12250-B0i200008-200209

main58951-12300-A0i200209-200404

main58951-12340-A0i200209-200404

main58951-12340-B0i200209-200404

main58951-12350-A0i200209-200404

main58951-12350-B0i200209-200404

MD. GRAY,TRIM1#

main58951-12370-A0i200404-200609

main58951-12370-B0i200404-200609

main58951-12370-B1i200404-200609

main58951-12380-A0i200404-200609

main58951-12380-B0i200404-200609

MD.GRAY,TRIM1#

58952ADOOR, CONSOLE COMPARTMENT, INNER

main58952-12060-A3i200008-200209

IVORY,TRIM0#

main58952-12060-B5i200008-200209

STONE,TRIM1#

main58952-12060-B6i200008-200209

DK.GRAY,TRIM1#

main58952-12060-B9i200512-200609

58958COVER, CONSOLE COMPARTMENT DOOR MOULDING

main58958-12020-B0i200008-200110

STONE,TRIM1#

58961AHINGE, CONSOLE COMPARTMENT DOOR MALE

main58907-12050i200008-200209

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-20040i200008-200209

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-20050i200008-200209

58972ABASE, CONSOLE COMPARTMENT DOOR LOCK

main58972-34010i200008-200209

58973PIN, CONSOLE COMPARTMENT DOOR LOCK

main58973-34010i200008-200209

7404ASH RECEPTACLE

→ Go to FIG 74-04

5541932020PLATE, SAFETY PAD

main55419-32020

5895916020ROD, REAR LOCK, HANDLE LATCH

main58959-16020

9016130003

main90161-30003

9054104079

main90541-04079

91631J0612

main91631-J0612

9356054012

main93560-54012

9356854512

main93568-54512

9356855014

main93568-55014

9356855016

main93568-55016

29 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota COROLLA/FIELDER

This section contains 29 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota COROLLA/FIELDER. Key components include: HOLDER, INSTRUMENT PANEL CUP, SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1, COVER SUB-ASSY, SHIFTING HOLE, CARPET, CONSOLE BOX, PANEL, CONSOLE, UPPER.

Toyota COROLLA/FIELDER CONSOLE BOX & BRACKET — Parts Diagram | EPC Data
