Toyota COROLLA/FIELDER — CAMERA & REAR MONITOR DISPLAY

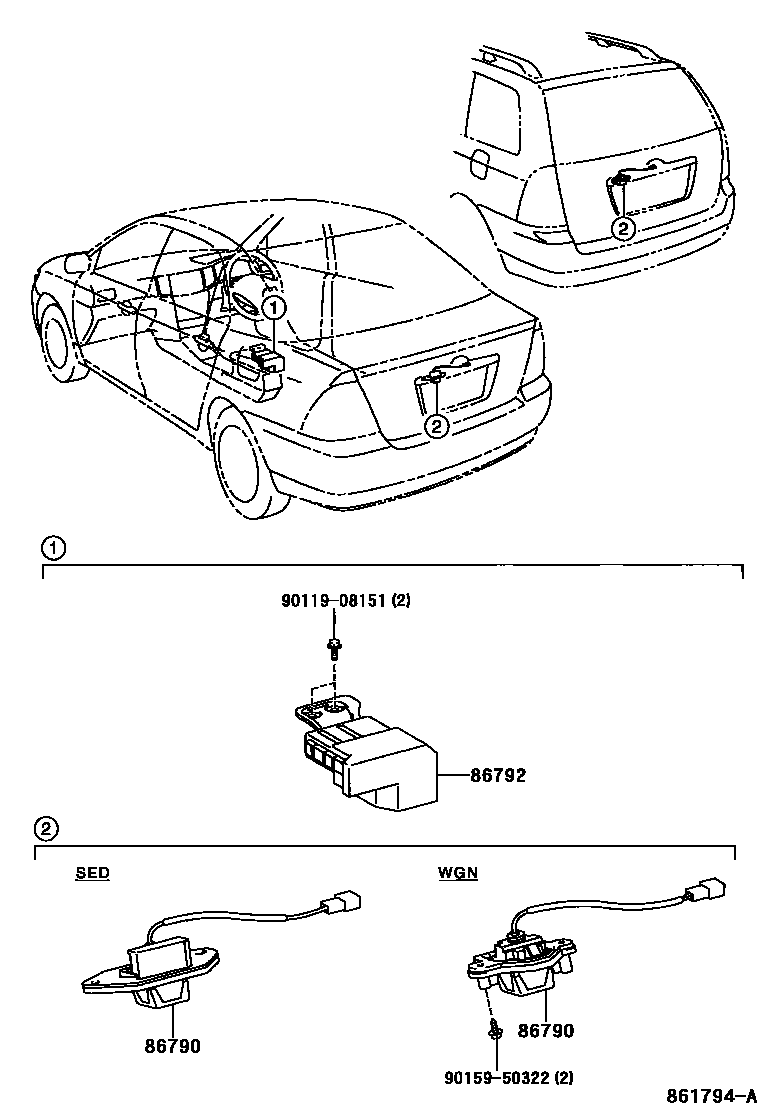

Parts diagram

86790CAMERA ASSY, TELEVISION

main86790-12010i200209-200404

main86790-12020i200404-200405

main86790-12021i200405-200609

main86790-12040i200404-200602

main86790-12041i200603-200609

main86790-12050i200404-200602

main86790-12051i200603-200609

main86790-13030i200209-200404

main86790-13070i200404-200609

main86790-13080i200404-200602

main86790-13081i200603-200609

86792CONTROLLER, TELEVISION CAMERA

main86792-12010i200209-200309

main86792-12011i200309-200404

main86792-12020i200209-200309

main86792-12021i200309-200404

main86792-12030i200404-200609

main86792-13050i200209-200309

main86792-13051i200309-200404

main86792-13070i200209-200309

main86792-13071i200309-200404

9011908151

main90119-08151

9015950322

main90159-50322

4 parts on this diagram · 2 diagrams in section

CAMERA & REAR MONITOR DISPLAY for Toyota COROLLA/FIELDER

This section contains 5 genuine Toyota parts for the CAMERA & REAR MONITOR DISPLAY system of the Toyota COROLLA/FIELDER. Key components include: CAMERA ASSY, TELEVISION, CONTROLLER, TELEVISION CAMERA.
