Toyota COROLLA/FIELDER — ARMREST & VISOR

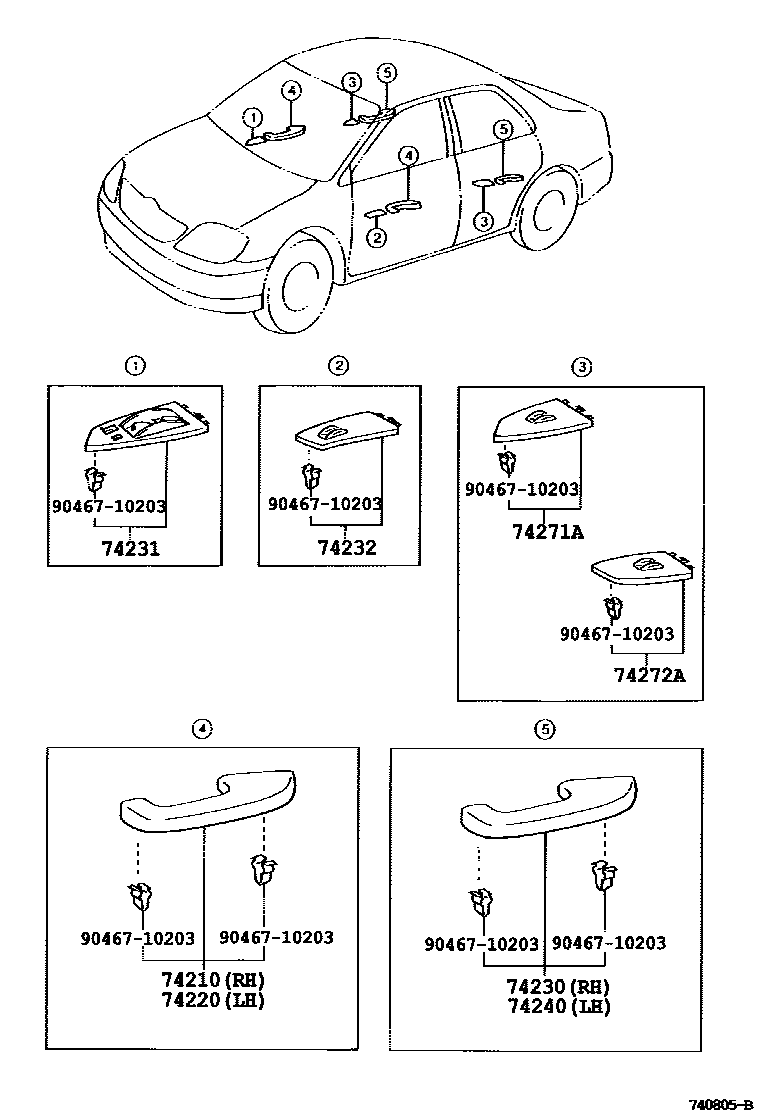

Parts diagram

74210ARMREST ASSY, FRONT, RH

main74210-12240-A0i200008-200206

IVORY,TRIM0#

main74210-12240-B0i200008-200206

STONE,TRIM1#

main74210-12240-B1i200008-200206

DK.GRAY,TRIM1#

main74210-12250-A0i200209-200404

IVORY,TRIM0#

main74210-12250-B0i200206-200209

STONE,TRIM1#

main74210-12250-B1i200209-200404

DK.GRAY,TRIM1#

main74210-12250-B2i200404-200408

MD.GRAY,TRIM1#

main74210-12251-A0i200409-200609

IVORY,TRIM0#

main74210-12251-B1i200409-200609

DK.GRAY,TRIM1#

main74210-12251-B2i200409-200609

MD.GRAY,TRIM1#

74220ARMREST ASSY, FRONT, LH

main74220-12180-A0i200008-200206

IVORY,TRIM0#

main74220-12180-B0i200008-200206

STONE,TRIM1#

main74220-12180-B1i200110-200206

DK.GRAY,TRIM1#

main74220-12190-A0i200206-200209

IVORY,TRIM0#

main74220-12190-B0i200206-200209

STONE,TRIM1#

main74220-12190-B1i200206-200209

DK.GRAY,TRIM1#

main74220-12190-B2i200209-200404

MD.GRAY,TRIM1#

main74220-12191-A0i200409-200609

IVORY,TRIM0#

main74220-12191-B1i200409-200609

DK.GRAY,TRIM1#

main74220-12191-B2i200409-200609

MD.GRAY,TRIM1#

74230ARMREST ASSY, REAR, RH

main74210-12240-A0i200008-200206

IVORY,TRIM0#

main74210-12240-B0i200008-200206

STONE,TRIM1#

main74210-12240-B1i200110-200206

DK.GRAY,TRIM1#

main74210-12250-A0i200404-200408

IVORY,TRIM0#

main74210-12250-B0i200206-200209

STONE,TRIM1#

main74210-12250-B1i200404-200408

DK.GRAY,TRIM1#

main74210-12250-B2i200404-200408

MD.GRAY,TRIM1#

main74210-12251-A0i200409-200609

IVORY,TRIM0#

main74210-12251-B1i200409-200609

DK.GRAY,TRIM1#

main74210-12251-B2i200409-200609

MD.GRAY,TRIM1#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12430-A0i200008-200209

main74231-12430-B0i200008-200209

main74231-12430-B1i200008-200209

main74231-12440-A0i200008-200209

main74231-12450-E0i200008-200209

SILVER,TRIM1#

main74231-12480-B0i200008-200209

main74231-12480-B2i200404-200609

main74231-12610-A0i200209-200404

IVORY,TRIM0#

main74231-12610-B0i200209-200404

DK.GRAY,TRIM1#

main74231-12610-B1i200404-200609

MD.GRAY,TRIM1#

main74231-12620i200209-200404

main74231-12630i200209-200404

main74231-12640i200409-200411

main74231-12650i200404-200609

main74231-12760-B0i200512-200609

main74231-12760-E0i200512-200609

main74231-13150i200404-200609

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-12340-A0i200008-200209

main74232-12340-B0i200008-200209

main74232-12340-B1i200110-200209

main74232-12350-A0i200008-200209

main74232-12360-E0i200008-200209

SILVER,TRIM1#

main74232-12390-B0i200008-200209

main74232-12390-B2i200209-200404

main74232-12410-A0i200209-200404

IVORY,TRIM0#

main74232-12410-B0i200209-200404

DK.GRAY,TRIM1#

main74232-12410-B1i200209-200404

MD.GRAY,TRIM1#

main74232-12450i200209-200404

main74232-12460i200209-200404

main74232-12470i200409-200411

main74232-12480i200404-200609

main74232-12590-B0i200512-200609

main74232-12590-E0i200512-200609

main74232-13110i200404-200609

74240ARMREST ASSY, REAR, LH

main74220-12180-A0i200008-200206

IVORY,TRIM0#

main74220-12180-B0i200008-200206

STONE,TRIM1#

main74220-12180-B1i200008-200206

DK.GRAY,TRIM1#

main74220-12190-A0i200404-200408

IVORY,TRIM0#

main74220-12190-B0i200206-200209

STONE,TRIM1#

main74220-12190-B1i200404-200408

DK.GRAY,TRIM1#

main74220-12190-B2i200209-200404

MD.GRAY,TRIM1#

main74220-12191-A0i200409-200609

IVORY,TRIM0#

main74220-12191-B1i200409-200609

DK.GRAY,TRIM1#

main74220-12191-B2i200409-200609

MD.GRAY,TRIM1#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-12020-A1i200008-200209

main74271-12020-B0i200008-200209

main74271-12020-B1i200110-200209

main74271-12030-A0i200008-200209

main74271-12040-E0i200008-200209

SILVER,TRIM1#

main74271-12050-B0i200008-200209

main74271-12050-B2i200404-200609

main74271-12090i200209-200404

main74271-12100i200209-200404

main74271-12110-A0i200209-200404

IVORY,TRIM0#

main74271-12110-B0i200209-200404

DK.GRAY,TRIM1#

main74271-12110-B1i200209-200404

MD.GRAY,TRIM1#

main74271-12120i200404-200609

main74271-12130i200404-200609

main74271-12210-B0i200512-200609

main74271-12210-E0i200512-200609

main74271-13090i200404-200609

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-12020-A1i200008-200209

main74272-12020-B0i200008-200209

main74272-12020-B1i200008-200209

main74272-12030-A0i200008-200209

main74272-12040-E0i200008-200209

SILVER,TRIM1#

main74272-12050-B0i200008-200209

main74272-12050-B2i200209-200404

main74272-12090i200209-200404

main74272-12100i200209-200404

main74272-12110-A0i200209-200404

IVORY,TRIM0#

main74272-12110-B0i200209-200404

DK.GRAY,TRIM1#

main74272-12110-B1i200404-200609

MD.GRAY,TRIM1#

main74272-12120i200404-200609

main74272-12130i200404-200609

main74272-12210-B0i200512-200609

main74272-12210-E0i200505

main74272-13090i200404-200609

9046710203

main90467-10203

9 parts on this diagram · 3 diagrams in section

ARMREST & VISOR for Toyota COROLLA/FIELDER

This section contains 15 genuine Toyota parts for the ARMREST & VISOR system of the Toyota COROLLA/FIELDER. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, ARMREST ASSY, REAR, RH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH.
