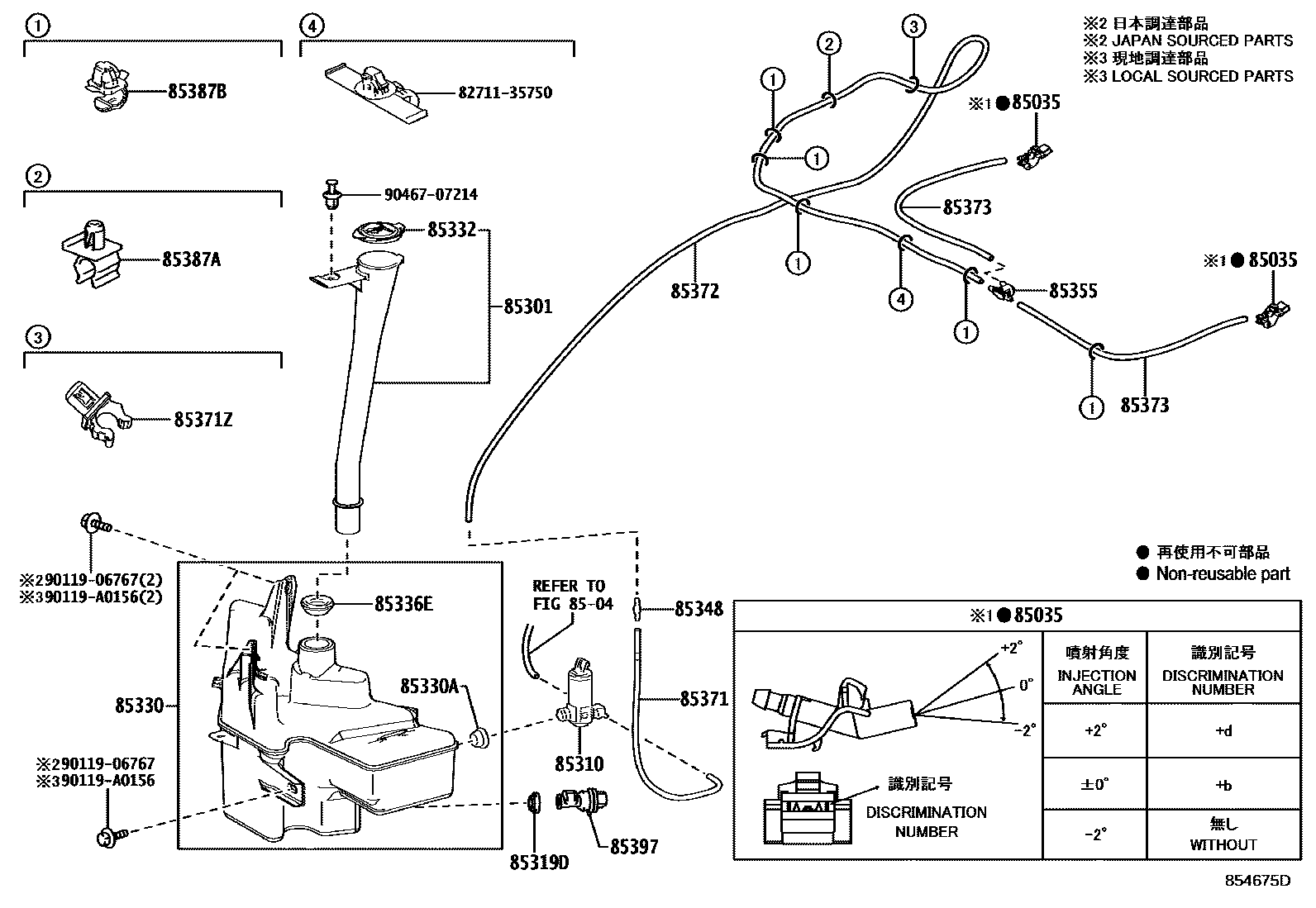

Toyota COROLLA CROSS — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2i202211-202412

ANGLE 0

main85381-30230×2i202109-202211

ANGLE -2

main85381-30240×2i202211-202412

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-0A060i202211-202412

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-04011i202211-202412

main85330-0A020supersedes 85330-04011i202211-202412

CANADA SPEC

85319DPACKING, FRONT WASHER

main85319-AA020i202412

85330JAR ASSY, WINDSHIELD WASHER

main85315-0A070i202211-202412

main85315-0A080i202211-202412

HAWAII SPEC&WITHOUT(COLD AREA SPEC); PUERTO RICO SPEC&WITHOUT(COLD AREA SPEC); USA POSSESSION SPEC&WITHOUT(COLD AREA SPEC); WITHOUT(COLD AREA SPEC)

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i202211-202412

85332CAP, WINDSHIELD WASHER JAR

main85316-24130i202412

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160i202211-202412

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-0E010i202211-202412

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i202211-202412

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33017i202211-202412

L=1250(*H,L=400); L=1250(*H,L=400),CANADA SPEC; L=1250(*H,L=400),HAWAII SPEC&WITHOUT(COLD AREA SPEC); L=1250(*H,L=400),PUERTO RICO SPEC&WITHOUT(COLD AREA SPEC); L=1250(*H,L=400),USA POSSESSION SPEC&WITHOUT(COLD AREA SPEC); L=1250(*H,L=400),WITHOUT(COLD AREA SPEC)

main90068-33011i202109-202211

L=1250(*H,L=400); L=1250(*H,L=400),WITHOUT(COLD AREA SPEC)

85371ZCLAMP, WASHER HOSE

main85371-52110i202412

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33405i202412

L=2240

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33172×2i202412

L=430

85387ACLAMP, WASHER, NO.2

main85371-32020i202412

85387BCLAMP, WASHER, NO.3

main85371-12040×5i202412

85397SWITCH ASSY,LEVEL WARNING

main85397-AA040i202412

8271135750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35750

9011906767

main90119-06767

90119A0156

main90119-A0156

9046707214

main90467-07214

22 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota COROLLA CROSS

This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COROLLA CROSS. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, PACKING, FRONT WASHER.
