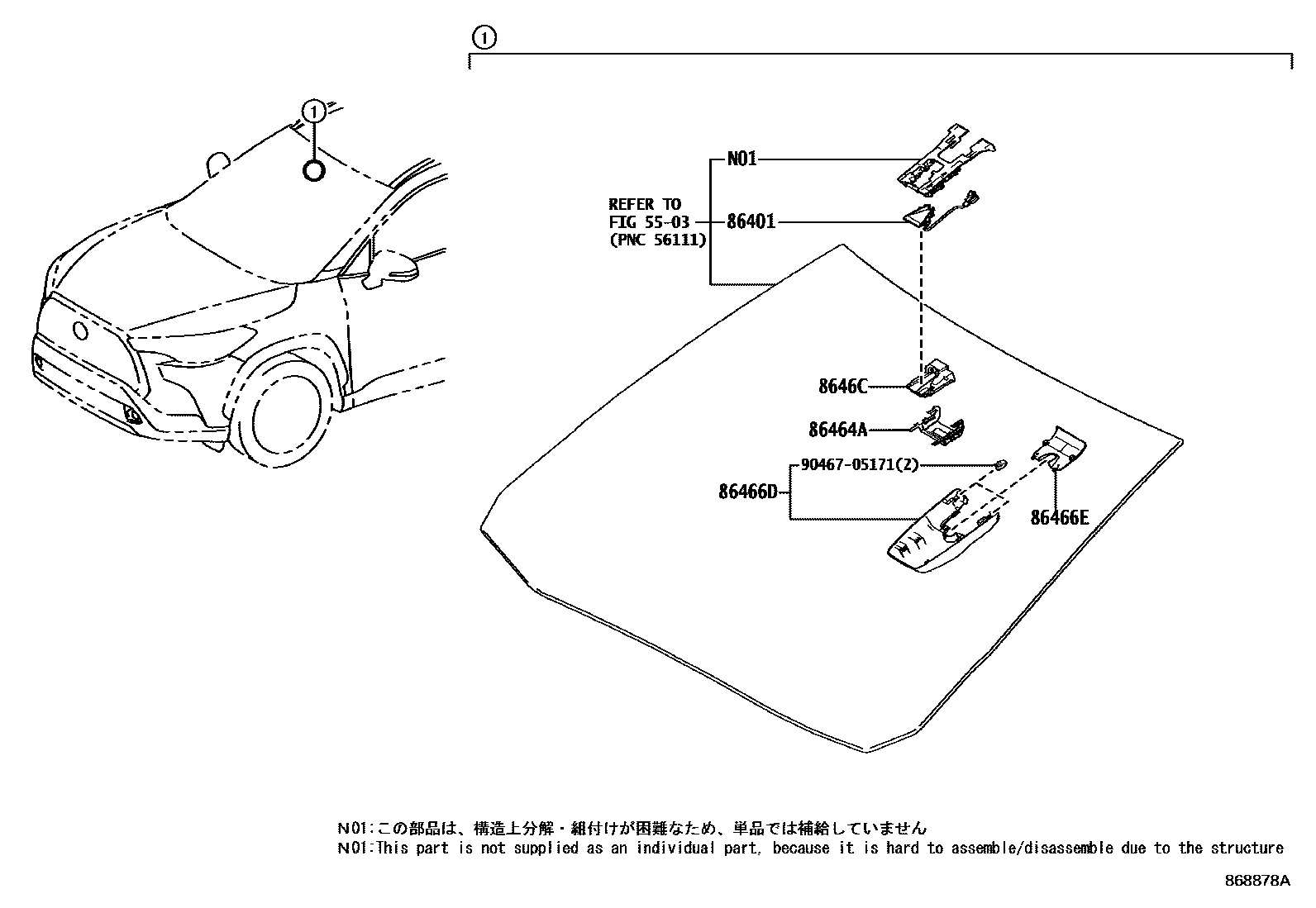

Toyota COROLLA CROSS — PRE-COLLISION SYSTEM

0001 1 0002 1

5503

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-16010iMXGA10..LE202109-202211

CRUISE CONTROL-WITH

86464ALATCH, FORWARD RECOGNITION

main86464-26010iMXGA1#202109-202211

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-0A010iMXGA10..LE202109-202211

CRUISE CONTROL-WITH

main86466-0A070iMXGA1#,MXGH15202211-202412

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-0A020iMXGA10..LE202109-202211

CRUISE CONTROL-WITH

main86467-0A010iMXGA1#,MXGH15202412

8646CCAMERA, FORWARD RECOGNITION

main8646C-0A010iMXGA10..LE202109-202211

*614

main8646C-0A040iMXGA1#,MXGH15202211-202310

*614

main8646C-0A070iMXGA1#,MXGH15202311-202412

*614

9046705171

main90467-05171

7 parts on this diagram · 2 diagrams in section
