Toyota COROLLA CROSS — PARTIAL ENGINE ASSEMBLY

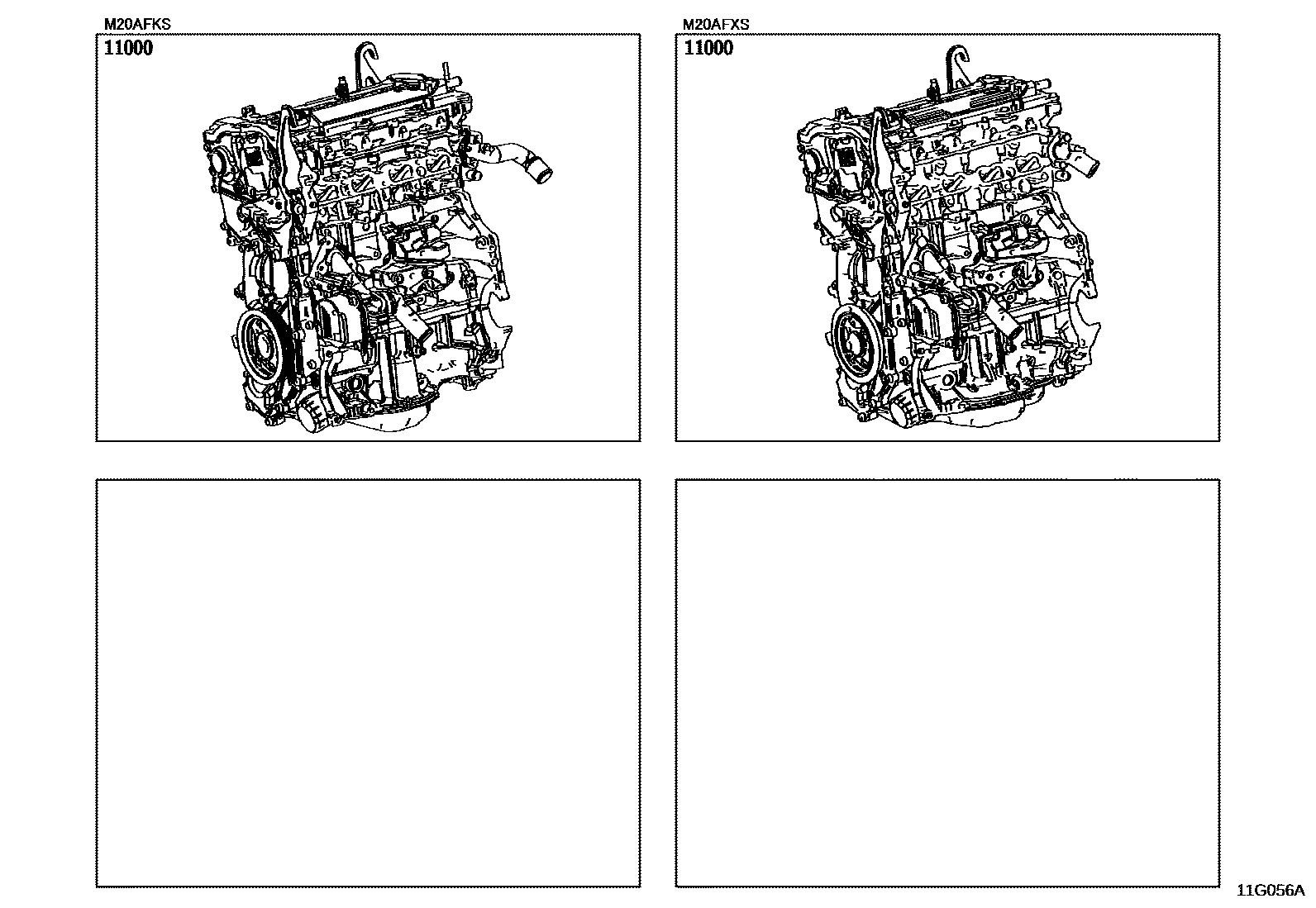

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-F2170i202211-202311

main19000-F2230i202305-202311

main19000-F2380i202412

main19000-F2410i202311-202412

1 parts on this diagram · 1 diagram in section
