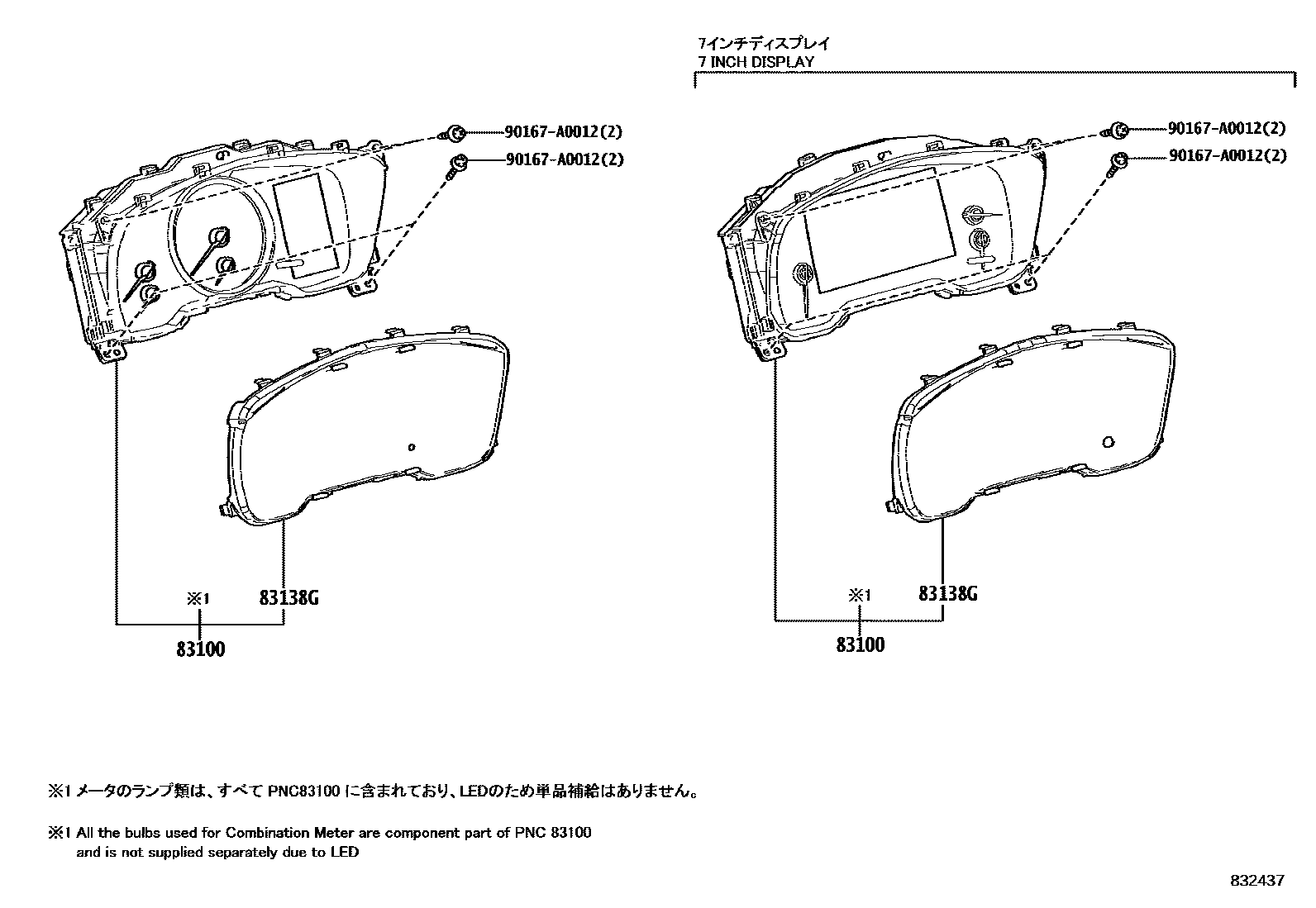

Toyota COROLLA CROSS — METER

83100METER ASSY, COMBINATION

main83800-0AC80i202305-202311

DENSO,*614

main83800-0AC90i202305-202311

DENSO,*614

main83800-0AD90i202305-202311

DENSO,*614

main83800-0AJ20i202311-202412

DENSO,*614

main83800-0AJ23i202412

DENSO,*614

main83800-0AJ30i202311-202412

DENSO,*614

main83800-0AJ33i202412

DENSO,*614

main83800-0AJ90i202311-202412

DENSO,*614

main83800-0AJ93i202412

DENSO,*614

main83800-0A710supersedes 83800-0A770i202109-202211

DENSO,CANADA SPEC

main83800-0A730supersedes 83800-0AA13i202109-202211

DENSO,CANADA SPEC&REAR & REAR SIDE MONITOR-WITH(BLIND SPOT MONITOR)

main83800-0A740supersedes 83800-0AA23i202109-202211

DENSO,CANADA SPEC&REAR & REAR SIDE MONITOR-WITH(BLIND SPOT MONITOR)

main83800-0A750supersedes 83800-0A790i202109-202211

DENSO,CANADA SPEC

main83800-0A760supersedes 83800-0AA13i202109-202211

DENSO,MEXICO SPEC

main83800-0A780supersedes 83800-0AA23i202109-202211

DENSO,REAR & REAR SIDE MONITOR-WITH(BLIND SPOT MONITOR)

main83800-0A800supersedes 83800-0AA13i202109-202211

DENSO,REAR & REAR SIDE MONITOR-WITH(BLIND SPOT MONITOR)

main83800-0A810supersedes 83800-0AJ83i202109-202211

DENSO,CANADA SPEC

main83800-0A840supersedes 83800-0AJ10i202311-202412

DENSO,CANADA SPEC,*614

main83800-0A843supersedes 83800-0AJ13i202412

DENSO,CANADA SPEC,*614

main83800-0A850i202311-202412

DENSO,CANADA SPEC,*614

main83800-0A853i202412

DENSO,CANADA SPEC,*614

main83800-0A860supersedes 83800-0AA10i202311-202412

DENSO,MEXICO SPEC&REAR & REAR SIDE MONITOR-WITHOUT,*614

main83800-0A863supersedes 83800-0AA13i202412

DENSO,MEXICO SPEC&REAR & REAR SIDE MONITOR-WITHOUT,*614

main83800-0AA00i202311-202412

DENSO,MEXICO SPEC&REAR & REAR SIDE MONITOR-WITHOUT,*614

main83800-0AA03i202412

DENSO,MEXICO SPEC&REAR & REAR SIDE MONITOR-WITHOUT,*614

main83800-0AD00supersedes 83800-0AC40i202211-202311

DENSO,CANADA SPEC,*614

main83800-0AD10supersedes 83800-0AC50i202211-202311

DENSO,CANADA SPEC,*614

main83800-0AD20supersedes 83800-0AC60i202211-202311

DENSO,CANADA SPEC,*614

main83800-0AD30supersedes 83800-0AC70i202211-202311

DENSO,CANADA SPEC,*614

main83800-0AD40i202305-202311

DENSO,CANADA SPEC,*614

main83800-0AD50supersedes 83800-0AC40i202211-202311

DENSO,MEXICO SPEC&REAR & REAR SIDE MONITOR-WITHOUT,*614

main83800-0AD60i202305-202311

DENSO,MEXICO SPEC&REAR & REAR SIDE MONITOR-WITHOUT,*614

main83800-0AE00supersedes 83800-0AD80i202211-202311

DENSO,CANADA SPEC,*614

main83800-0AE10i202305-202311

DENSO,CANADA SPEC,*614

main83800-0AE70supersedes 83800-0AD70i202211-202311

DENSO,MEXICO SPEC,*614

main83800-0AJ40supersedes 83800-0AA10i202311-202412

DENSO,CANADA SPEC,*614

main83800-0AJ43supersedes 83800-0AA13i202412

DENSO,CANADA SPEC,*614

main83800-0AJ50supersedes 83800-0AA20i202311-202412

DENSO,CANADA SPEC,*614

main83800-0AJ53supersedes 83800-0AA23i202412

DENSO,CANADA SPEC,*614

main83800-0AJ60supersedes 83800-0AJ00i202311-202412

DENSO,CANADA SPEC,*614

main83800-0AJ63supersedes 83800-0AJ03i202412

DENSO,CANADA SPEC,*614

main83800-0AK00supersedes 83800-0AJ80i202311-202412

DENSO,CANADA SPEC,*614

main83800-0AK03supersedes 83800-0AJ83i202412

DENSO,CANADA SPEC,*614

main83800-0AK10i202311-202412

DENSO,CANADA SPEC,*614

main83800-0AK13i202412

DENSO,CANADA SPEC,*614

main83800-0AK20supersedes 83800-0AJ70i202311-202412

DENSO,MEXICO SPEC,*614

main83800-0AK23supersedes 83800-0AJ73i202412

DENSO,MEXICO SPEC,*614

83138GGLASS, COMBINATION METER

main83852-F2V50i202109-202211

main83852-FE050i202109-202211

main83A52-02790i202211-202412

90167A0012

main90167-A0012

3 parts on this diagram · 2 diagrams in section

METER for Toyota COROLLA CROSS

This section contains 3 genuine Toyota parts for the METER system of the Toyota COROLLA CROSS. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER.
