Toyota COROLLA CROSS — ECO-RUN SYSTEM

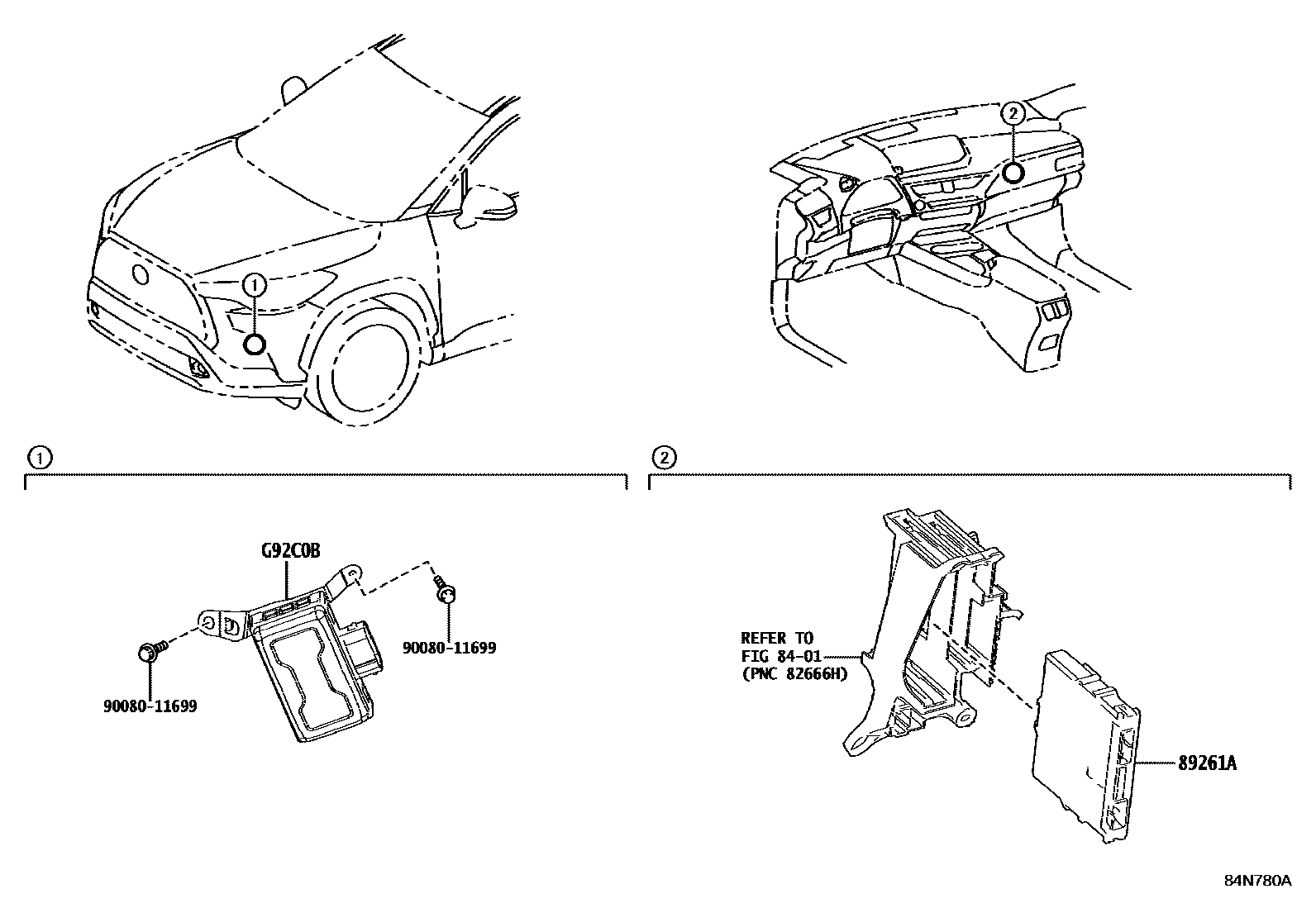

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89261ACOMPUTER, ENGINE STOP AND START

main89261-0A010i202109-202211

*614

main89261-0A040i202211-202306

*614

main89261-0A041i202306-202311

*614

main89261-0A080i202311-202412

*614

G92C0BCONVERTER ASSY, ECO RUN VEHICLE

9008011699

main90080-11699

4 parts on this diagram · 1 diagram in section

ECO-RUN SYSTEM for Toyota COROLLA CROSS

This section contains 4 genuine Toyota parts for the ECO-RUN SYSTEM system of the Toyota COROLLA CROSS. Key components include: SWITCH & RELAY & COMPUTER, COMPUTER, ENGINE STOP AND START, CONVERTER ASSY, ECO RUN VEHICLE.
