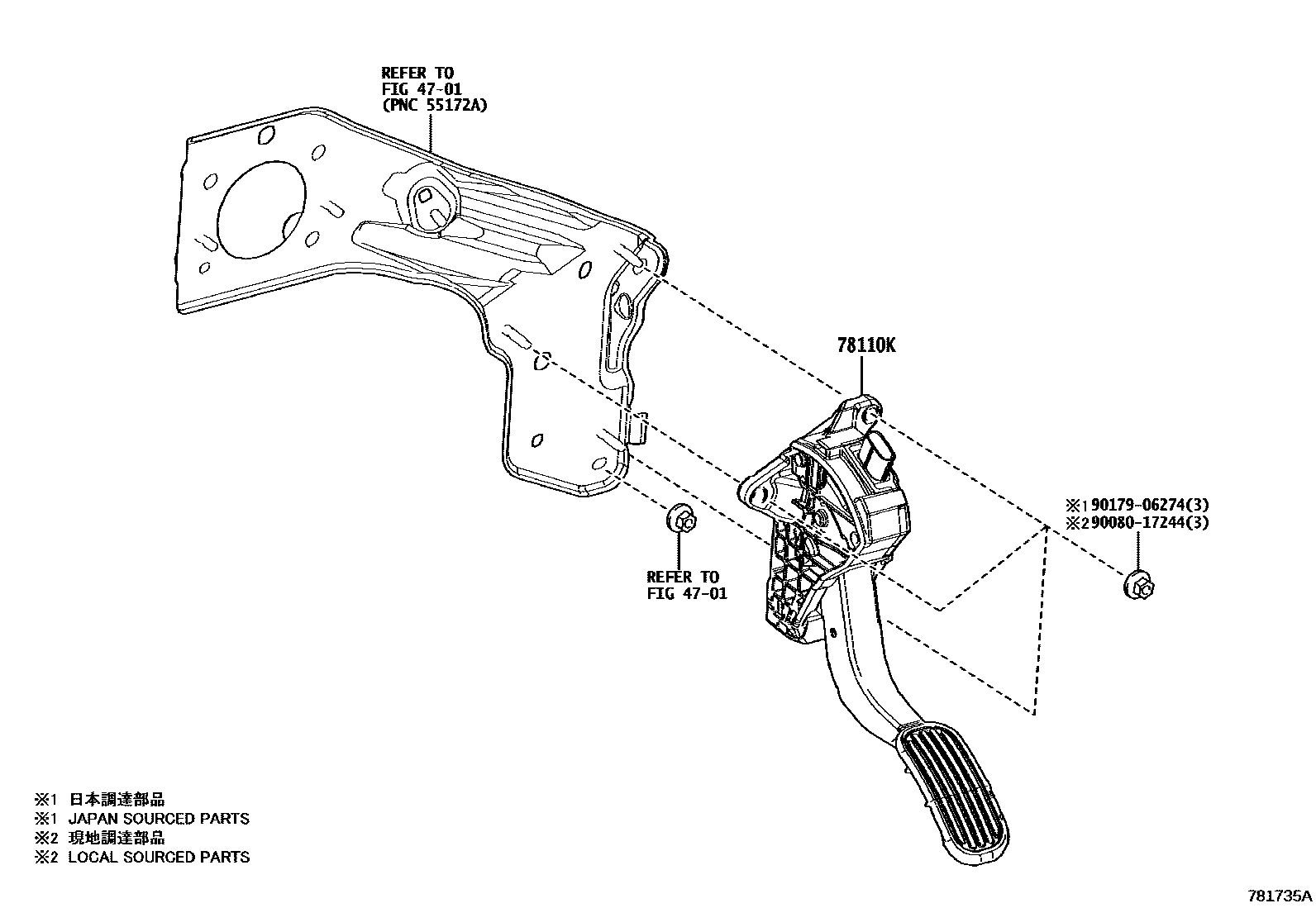

Toyota COROLLA CROSS — ACCELERATOR LINK

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-0A010i202109-202412

9008017244

main90080-17244

9017906274

main90179-06274

4 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota COROLLA CROSS

This section contains 4 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota COROLLA CROSS. Key components include: BRAKE PEDAL & BRACKET, ROD ASSY, ACCELERATOR PEDAL(W/SENSOR).
