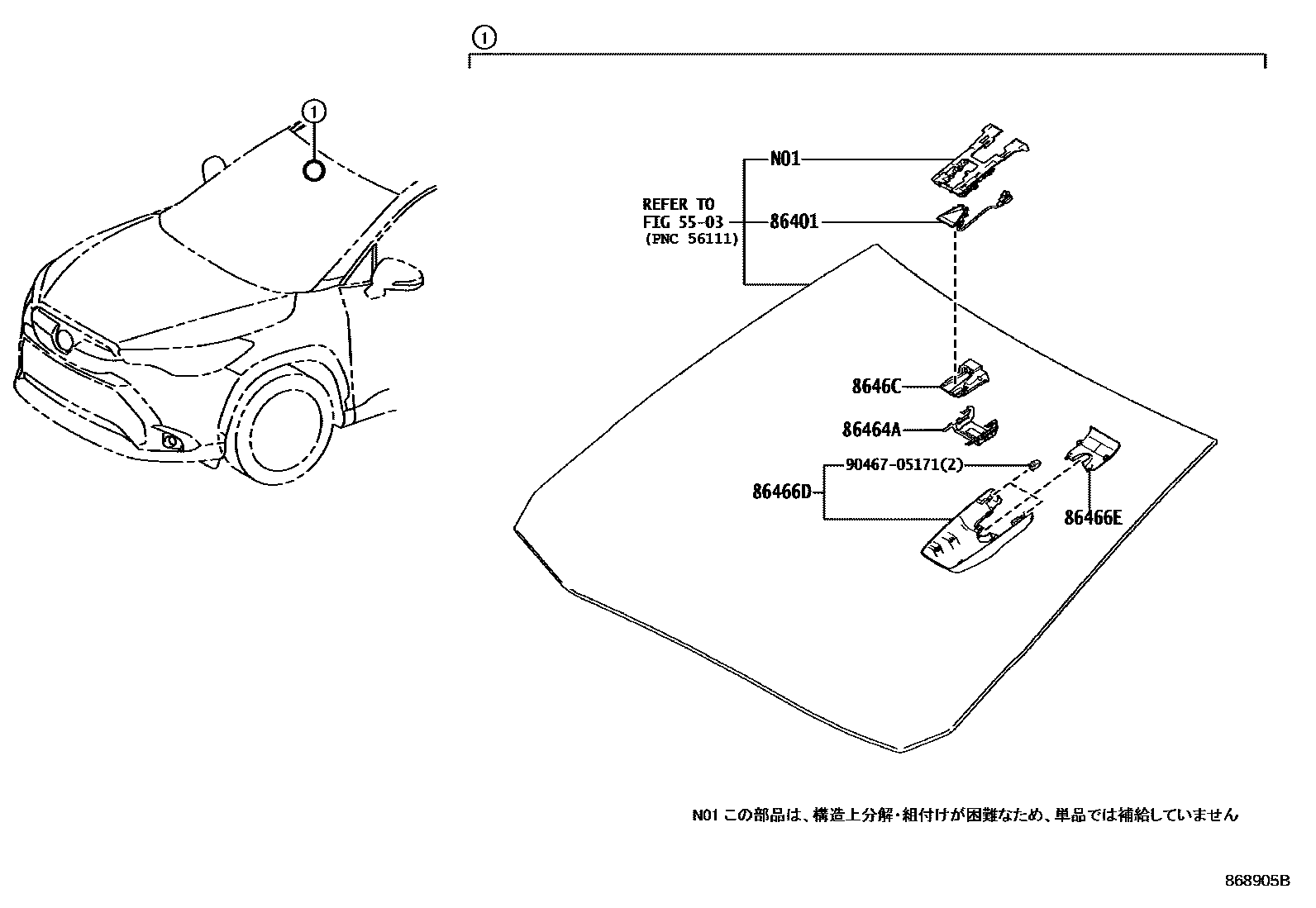

Toyota COROLLA CROSS — PRE-COLLISION SYSTEM

0001 1 0002 1

5503

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-16010iZSG10,ZVG1#202108-202310

86464ALATCH, FORWARD RECOGNITION

main86464-26010iZSG10,ZVG1#202108-202310

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-16030iMXGA10,ZVG1#202310

main86466-K1010iZSG10,ZVG1#202108-202310

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-K1020iZSG10,ZVG1#202108-202310

main86467-16010iMXGA10,ZVG1#202310

8646CCAMERA, FORWARD RECOGNITION

main8646C-16031iZSG10,ZVG1#202108-202310

main8646C-16070iMXGA10,ZVG1#..G202310

main8646C-16080iMXGA10,ZVG1#..S,Z202310

9046705171

main90467-05171

7 parts on this diagram · 2 diagrams in section
