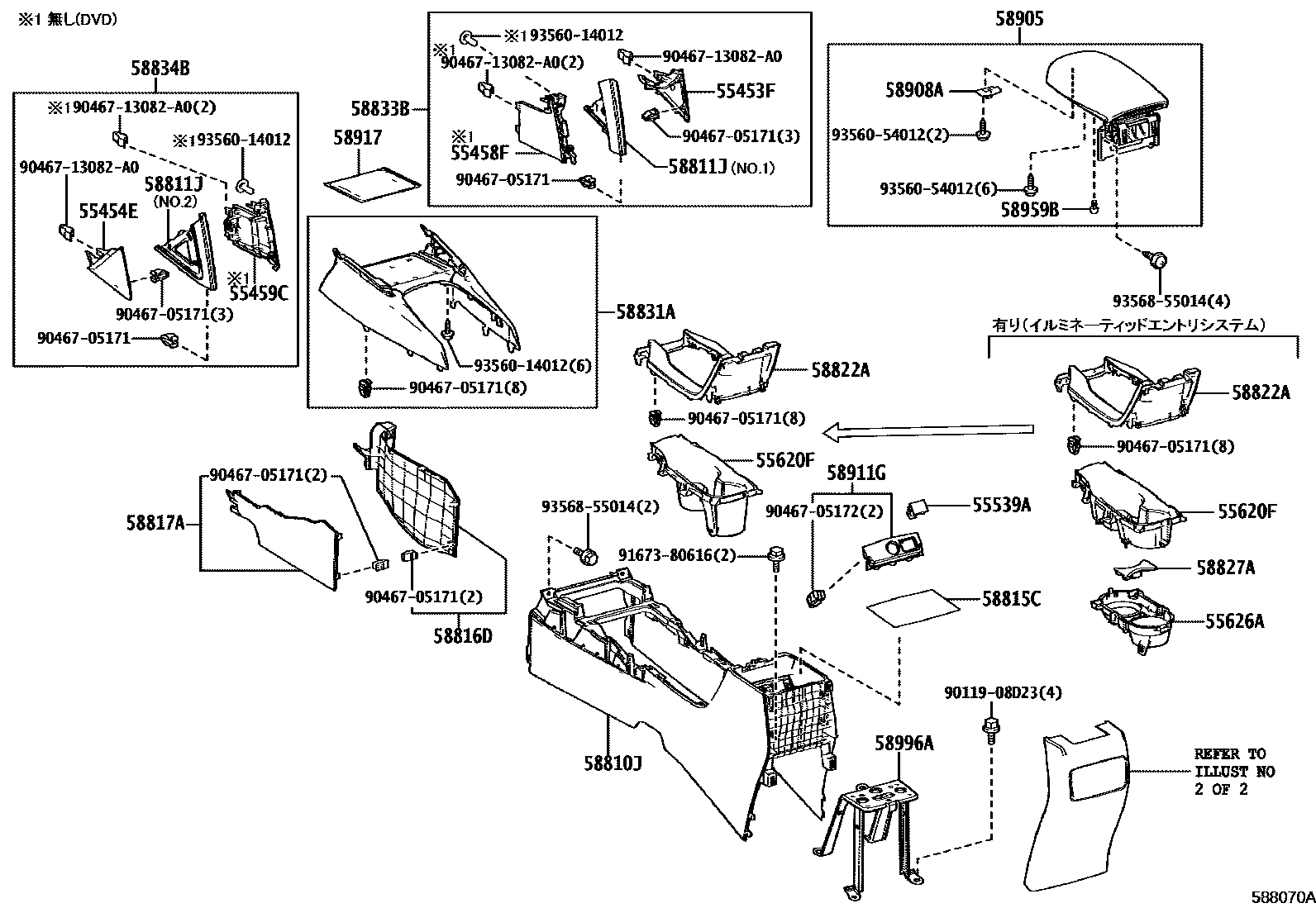

Toyota COROLLA CROSS — CONSOLE BOX & BRACKET
55453FPAD, INSTRUMENT, LOWER RH
55454EPAD, INSTRUMENT, LOWER LH
55458FCOVER, INSTRUMENT, LOWER RH
55459CCOVER, INSTRUMENT, LOWER LH
55539ACOVER, SPARE SWITCH HOLE
BLACK,TRIM2#
55620FHOLDER ASSY, CONSOLE BOX CUP
55626ARETAINER, INSTRUMENT PANEL UNDER TRAY WALL
58810JBOX ASSY, CONSOLE
BLACK,TRIM2#
58811JPLATE, CONSOLE
58815CCARPET, CONSOLE BOX
58816DINSERT, CONSOLE BOX, FRONT NO.1
BLACK,TRIM2#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM2#
58822APANEL, CONSOLE, UPPER REAR
58827AGARNISH, CONSOLE BOX POCKET
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
BLACK,TRIM2#
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
SILVER,TRIM2#
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
SILVER,TRIM2#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK/MD.GRAY,TRIM8#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58911GPANEL, BOX, NO.1
BLACK,TRIM2#
58917MAT, BOX BOTTOM, NO.2
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
9011908D23
main90119-08D23
9046705171
main90467-05171
9046705172
main90467-05172
9046713082A0
main90467-13082A0
9167380616
main91673-80616
9356014012
main93560-14012
9356054012
main93560-54012
9356855014
main93568-55014
31 parts on this diagram · 2 diagrams in section
