Toyota COROLLA CROSS — WINDSHIELD WIPER

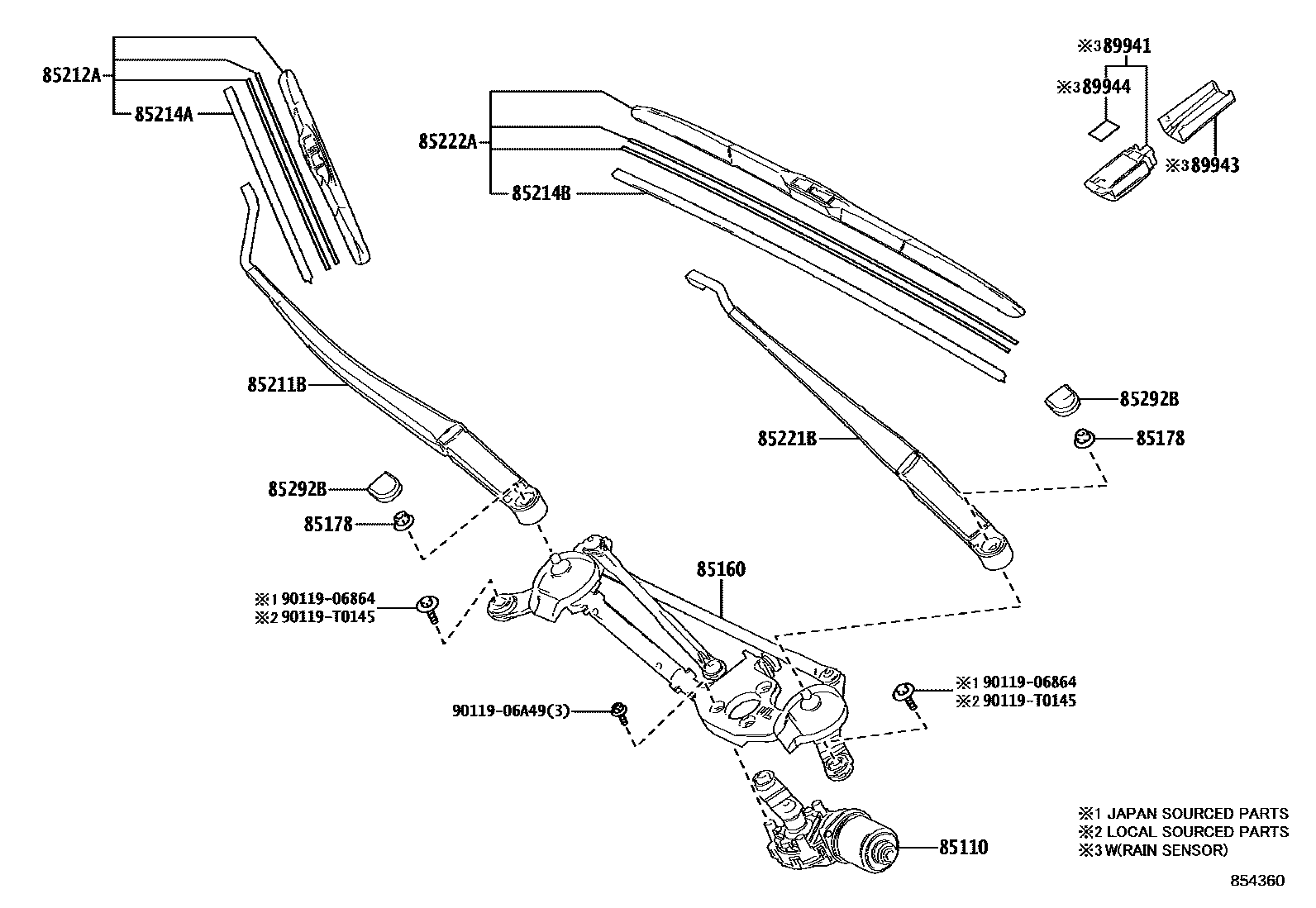

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0A020i202007-202402

main85110-0A030i202501

main85110-0A080i202007-202411

85160LINK ASSY, WINDSHIELD WIPER

main85150-0A020i202007-202402

main85150-0A030i202103-202112

main85150-0A080i202007-202411

main85150-0A090i202110-202411

main85150-0A100i202411

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2i202007-202212

(J)

main90182-T0029×2i202007-202410

(L)

85211BARM, FRONT WIPER, RH

main85211-0A020i202007-202410

main85211-0A030i202007-202410

85212ABLADE, FR WIPER, RH

main85212-0A090i202112-202411

main85212-30470i202007-202111

main85212-76020i202201-202403

85214ARUBBER, WIPER, RH

main85214-0A180i202411

main85214-28090i202007-202410

main85214-52110i202007-202402

85214BRUBBER, WIPER, LH

main85214-0A190i202411

main85214-28090i202007-202411

main85214-52110i202007-202411

85221BARM, FRONT WIPER, LH

main85221-0A020i202007-202410

main85221-0A030i202401

main85221-0A100i202010-202410

85222ABLADE, FR WIPER, LH

main85222-0A090i202411

main85222-30650i202007-202410

main85222-76030i202007-202111

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D030×2i202007-202212

89941SENSOR, RAIN

main89941-30040i202501

GR SPORT; UP GRADE PACKAGE; WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)

89943COVER, RAIN SENSOR

main89943-12040i202501

GR SPORT; UP GRADE PACKAGE; WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)

89944TAPE, RAIN SENSOR

main89944-42020i202501

GR SPORT; UP GRADE PACKAGE; WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)

9011906864

main90119-06864

9011906A49

main90119-06A49

90119T0145

main90119-T0145

16 parts on this diagram · 2 diagrams in section

WINDSHIELD WIPER for Toyota COROLLA CROSS

This section contains 16 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota COROLLA CROSS. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
