Toyota COROLLA CROSS — MIRROR

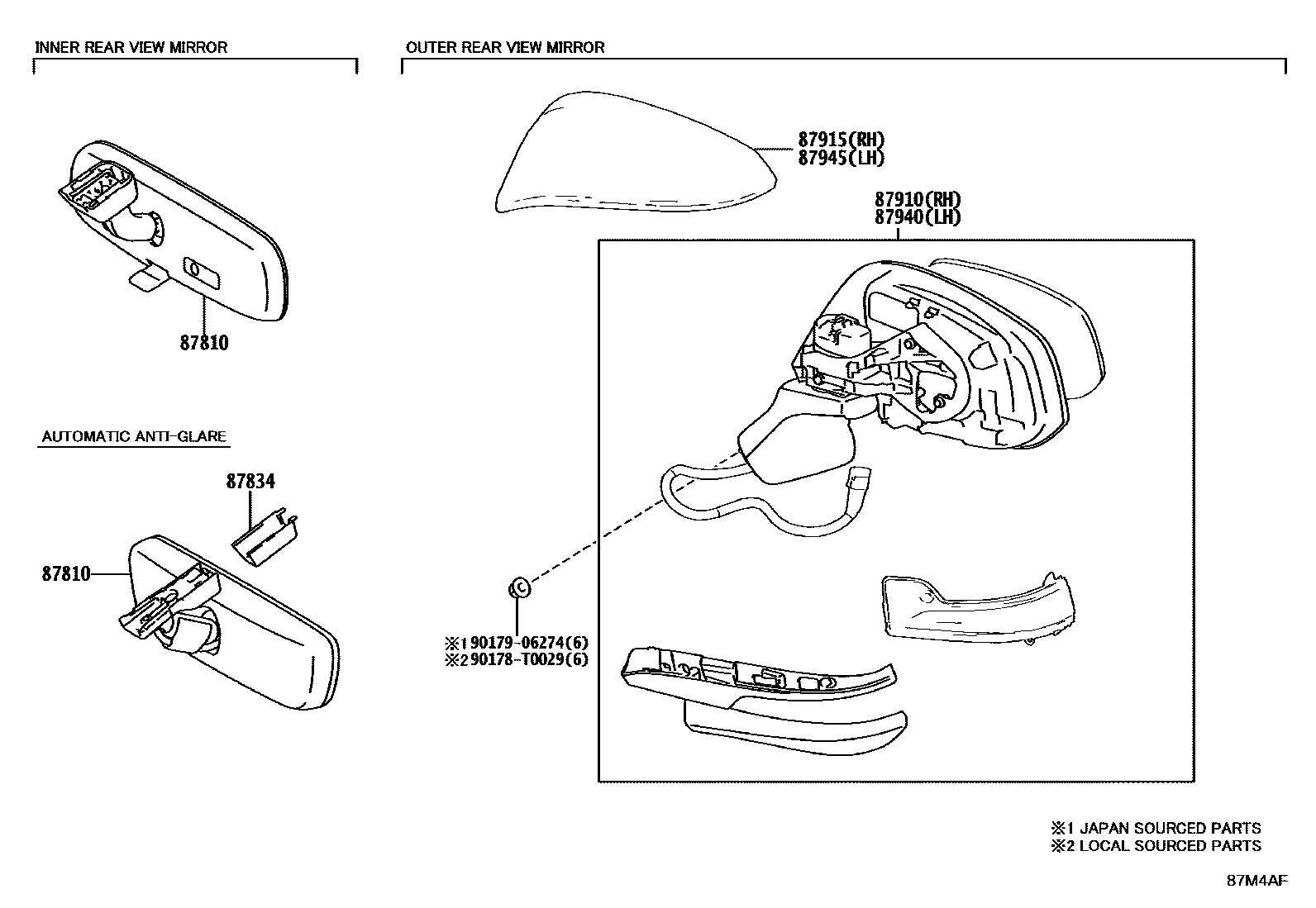

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-02260i202312
main87810-0WK10i202312
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-24010i202312
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-0A300i202312
NO PAINT REQ.
main87910-0A310i202312
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
main87915-0A910i202312
PAINT REQ.
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-0A290i202312
NO PAINT REQ.
main87940-0A300i202312
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
main87945-0A910i202312
PAINT REQ.
90178T0029
main90178-T0029
9017906274
main90179-06274

8 parts on this diagram · 1 diagram in section

MIRROR for Toyota COROLLA CROSS

This section contains 8 genuine Toyota parts for the MIRROR system of the Toyota COROLLA CROSS. Key components include: MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH, MIRROR ASSY, OUTER REAR VIEW, LH.
