Toyota COROLLA CROSS — METER

83100METER ASSY, COMBINATION

main83800-0A120i202205-202411

YAZAKI

main83800-0A140i202205-202411

DENSO

main83800-0A150i202205-202411

DENSO; DENSO,MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83800-0A160i202205-202411

DENSO

main83800-0A170i202205-202411

DENSO

main83800-0A190i202401

DENSO

main83800-0A200i202401

DENSO

main83800-0A210i202411

DENSO

main83800-0A220i202401

DENSO

main83800-0A240i202410

DENSO

main83800-0A250i202410

DENSO

main83800-0A260i202410

DENSO

main83800-0A270i202410-202510

DENSO

main83800-0A300i202007-202111

DENSO

main83800-0A301i202112-202410

DENSO

main83800-0A310i202010-202107

DENSO

main83800-0A311i202108-202410

DENSO

main83800-0A320i202007-202111

DENSO

main83800-0A321i202112-202402

DENSO

main83800-0A330i202007-202111

DENSO

main83800-0A331i202112-202402

DENSO

main83800-0A340i202007-202111

DENSO

main83800-0A341i202112-202212

DENSO

main83800-0A350i202007-202111

DENSO; DENSO,MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83800-0A351i202112-202402

DENSO; DENSO,MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83800-0A370i202401

DENSO

main83800-0A380i202410-202510

DENSO

main83800-0A390supersedes 83800-0AG01i202404-202408

DENSO; DENSO,MULTI INFORMATION DISPLAY-7INCH DISPLAY

main83800-0A391i202409-202412

DENSO; DENSO,MULTI INFORMATION DISPLAY-7INCH DISPLAY

main83800-0A400supersedes 83800-0AG21i202404-202408

DENSO; DENSO,MULTI INFORMATION DISPLAY-7INCH DISPLAY

main83800-0A401i202409-202412

DENSO; DENSO,MULTI INFORMATION DISPLAY-7INCH DISPLAY

main83800-0A430i202103-202112

DENSO

main83800-0A440i202010-202107

DENSO

main83800-0A441i202108-202410

DENSO

main83800-0A450i202010-202107

DENSO

main83800-0A451i202108-202410

DENSO

main83800-0A460i202010-202107

DENSO

main83800-0A461i202108-202410

DENSO

main83800-0A470i202103-202112

DENSO

main83800-0A480i202103-202112

DENSO; DENSO,PARAGUAY SPEC

main83800-0A500supersedes 83800-0A670i202103-202112

DENSO; DENSO,MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83800-0A510i202103-202112

DENSO; DENSO,PARAGUAY SPEC&ENGINE-M20A-FKB&MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83800-0A560i202404-202408

DENSO

main83800-0A561i202501

DENSO

main83800-0A590i202010-202107

DENSO

main83800-0A591i202108-202410

DENSO

main83800-0A600i202010-202107

DENSO

main83800-0A601i202108-202410

DENSO

main83800-0A610i202201-202403

DENSO

main83800-0A620i202103-202112

DENSO; DENSO,PARAGUAY SPEC

main83800-0A640i202010-202107

DENSO

main83800-0A641i202108-202410

DENSO

main83800-0A650i202007-202402

YAZAKI

main83800-0A690i202401-202409

DENSO

main83800-0A691i202410

DENSO

main83800-0AA60i202110-202203

DENSO

main83800-0AA61i202204-202205

DENSO

main83800-0AB10i202411

DENSO

main83800-0AF40supersedes 83800-0A701i202401-202409

DENSO; DENSO,ACTIVE SAFETY PACKAGE-WITH&HEADLAMP-LED(SEQUENTIAL) & *AHB; DENSO,GR SPORT

main83800-0AF41i202410

DENSO; DENSO,ACTIVE SAFETY PACKAGE-WITH&HEADLAMP-LED(SEQUENTIAL) & *AHB; DENSO,GR SPORT

main83800-0AF50i202410

DENSO

main83800-0AF70i202410

DENSO

main83800-0AF80i202410

DENSO

main83800-0AF90i202410

DENSO

main83800-0AG10i202404-202409

DENSO

main83800-0AG11i202410-202412

DENSO

main83800-0AG40i202404-202409

DENSO

main83800-0AG41i202501

DENSO; DENSO,PARAGUAY SPEC&ENGINE-2ZR-FXB

main83800-0AG50i202404-202409

DENSO; DENSO,PARAGUAY SPEC&ENGINE-2ZR-FXB

main83800-0AG51i202501

DENSO; DENSO,PARAGUAY SPEC&ENGINE-2ZR-FXB

main83800-0AK40i202411

DENSO

main83800-0AK80i202411

DENSO

main83800-0AL50i202411

DENSO

main83800-0AQ20i202410-202412

DENSO

main83800-0AQ30i202410-202412

DENSO; DENSO,PARAGUAY SPEC&ENGINE-2ZR-FXB

main83800-0A290i202404-202412

DENSO,PARAGUAY SPEC&ENGINE-M20A-FKB

main83800-0A490supersedes 83800-0AG21i202103-202112

DENSO; DENSO,PARAGUAY SPEC&ENGINE-M20A-FKB

main83800-0A520supersedes 83800-0A660i202010-202107

DENSO,MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83800-0A521supersedes 83800-0A660i202108-202410

DENSO,MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83800-0A550supersedes 83800-0AG21i202404-202408

DENSO,HEADLAMP-LED(SEQUENTIAL) & *AHB&MULTI INFORMATION DISPLAY-7INCH DISPLAY

main83800-0A551supersedes 83800-0AG21i202501

DENSO,HEADLAMP-LED(SEQUENTIAL) & *AHB&MULTI INFORMATION DISPLAY-7INCH DISPLAY

main83800-0A630i202201-202403

DENSO,MULTI INFORMATION DISPLAY-7INCH DISPLAY; DENSO,UP GRADE PACKAGE&MULTI INFORMATION DISPLAY-7INCH DISPLAY

main83800-0AA70supersedes 83800-0A421i202401-202512

DENSO,HEADLAMP-LED(SEQUENTIAL)

main83800-0AB20supersedes 83800-0AK30i202411

DENSO,LOW GRADE PACKAGE

main83800-0AB30supersedes 83800-0AK70i202411

DENSO,LOW GRADE PACKAGE

main83800-0AC30supersedes 83800-0AG21i202201-202403

DENSO; DENSO,PARAGUAY SPEC&ENGINE-M20A-FKB&MULTI INFORMATION DISPLAY-7INCH DISPLAY

main83800-0AG30i202404-202409

DENSO,GR SPORT&RADIATOR GRILLE-FOR GR SPPORT&HEADLAMP-LED(SEQUENTIAL) & *AHB; DENSO,HEADLAMP-LED(SEQUENTIAL) & *AHB; DENSO,UP GRADE PACKAGE&RADIATOR GRILLE-PAINTING&HEADLAMP-LED(SEQUENTIAL) & *AHB

main83800-0AG31i202501-202602

DENSO,GR SPORT&RADIATOR GRILLE-FOR GR-S&HEADLAMP-LED(SEQUENTIAL) & *AHB

main83800-0AG70supersedes 83800-0AG61i202404-202409

DENSO,RADIATOR GRILLE-FOR GR SPPORT&HEADLAMP-LED(SEQUENTIAL) & *AHB; DENSO,RADIATOR GRILLE-PAINTING&HEADLAMP-LED(SEQUENTIAL) & *AHB

main83800-0AG71supersedes 83800-0AG61i202410-202412

DENSO,RADIATOR GRILLE-FOR GR SPPORT&HEADLAMP-LED(SEQUENTIAL) & *AHB; DENSO,RADIATOR GRILLE-PAINTING&HEADLAMP-LED(SEQUENTIAL) & *AHB

main83800-0AL40i202411

DENSO,HEADLAMP-LED

83138GGLASS, COMBINATION METER

main83852-02E30i202501

UP GRADE PACKAGE&RADIATOR GRILLE-PAINTING&HEADLAMP-LED(SEQUENTIAL) & *AHB

main83852-0A390i202404-202412

HEADLAMP-LED(SEQUENTIAL) & *AHB&MULTI INFORMATION DISPLAY-7INCH DISPLAY; MULTI INFORMATION DISPLAY-7INCH DISPLAY

main83852-FE060supersedes 83852-FE090i202103-202112

MULTI INFORMATION DISPLAY-4.2INCH DISPLAY; PARAGUAY SPEC&ENGINE-M20A-FKB&MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83852-FE630i202401

main83852-FE660i202007-202111

main83852-FE730supersedes 83852-FE700i202010-202410

MULTI INFORMATION DISPLAY-4.2INCH DISPLAY

main83852-FE860i202007-202411

90167T0012

main90167-T0012

90167T0027

main90167-T0027

9356755020

main93567-55020

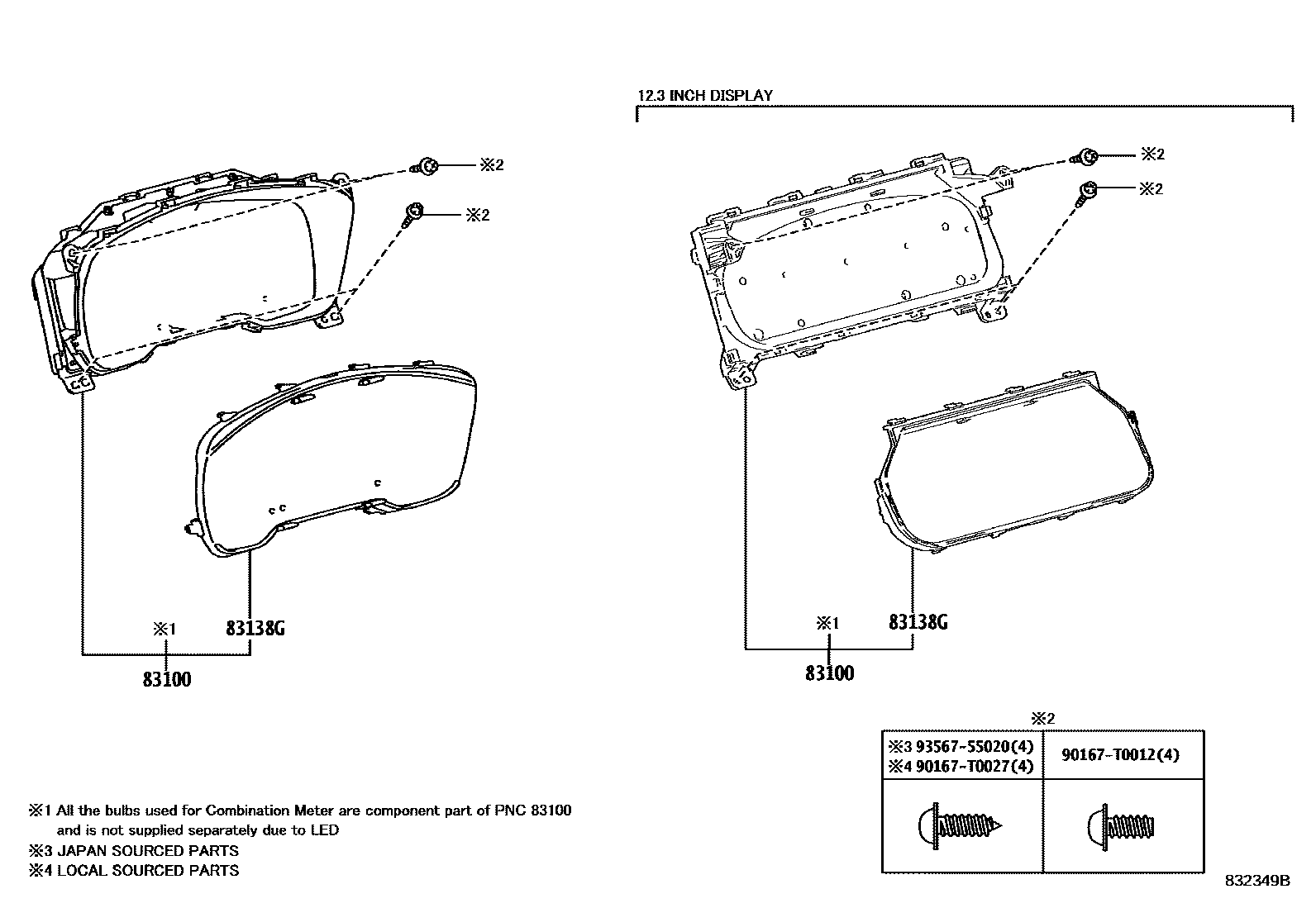

5 parts on this diagram · 1 diagram in section

METER for Toyota COROLLA CROSS

This section contains 5 genuine Toyota parts for the METER system of the Toyota COROLLA CROSS. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER.
